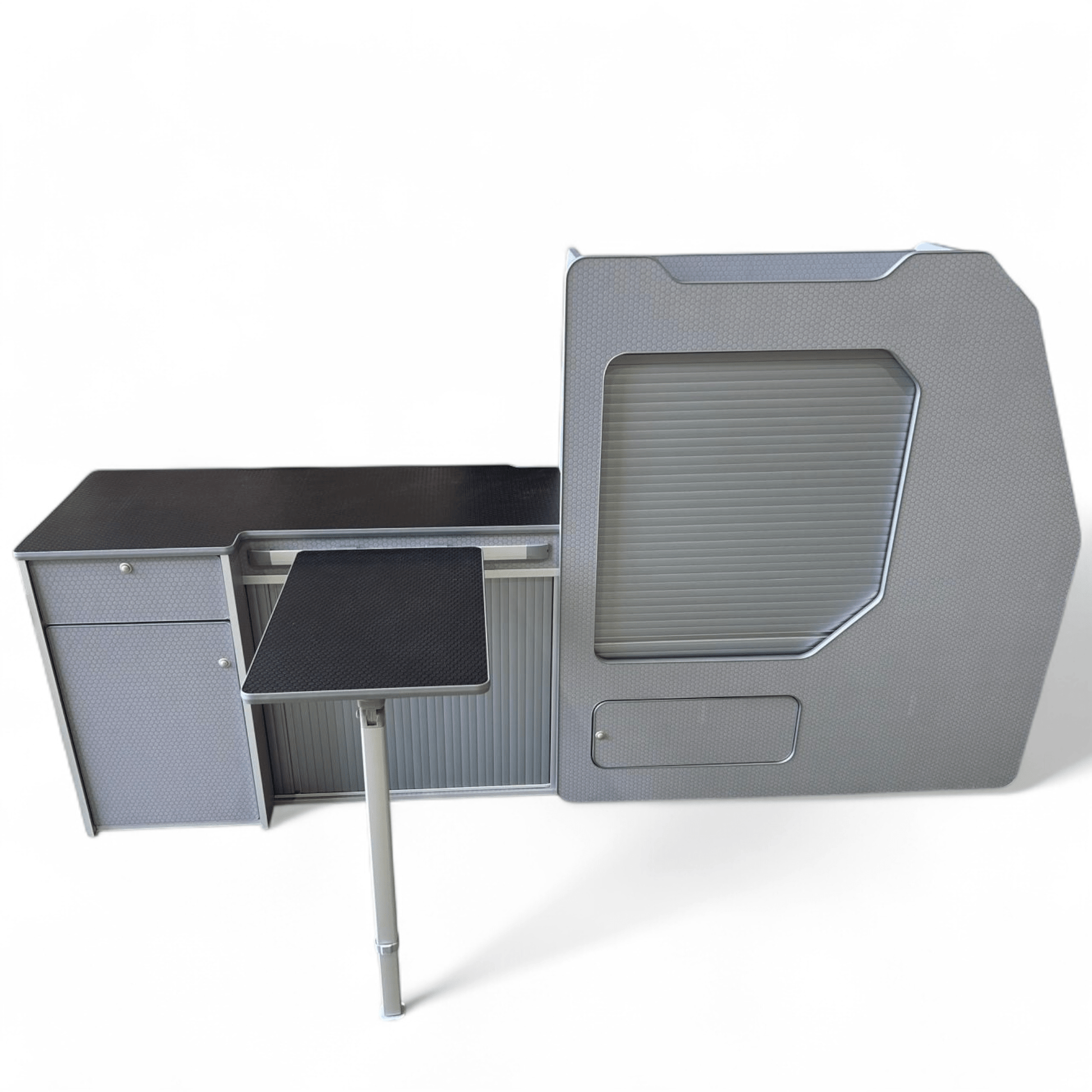

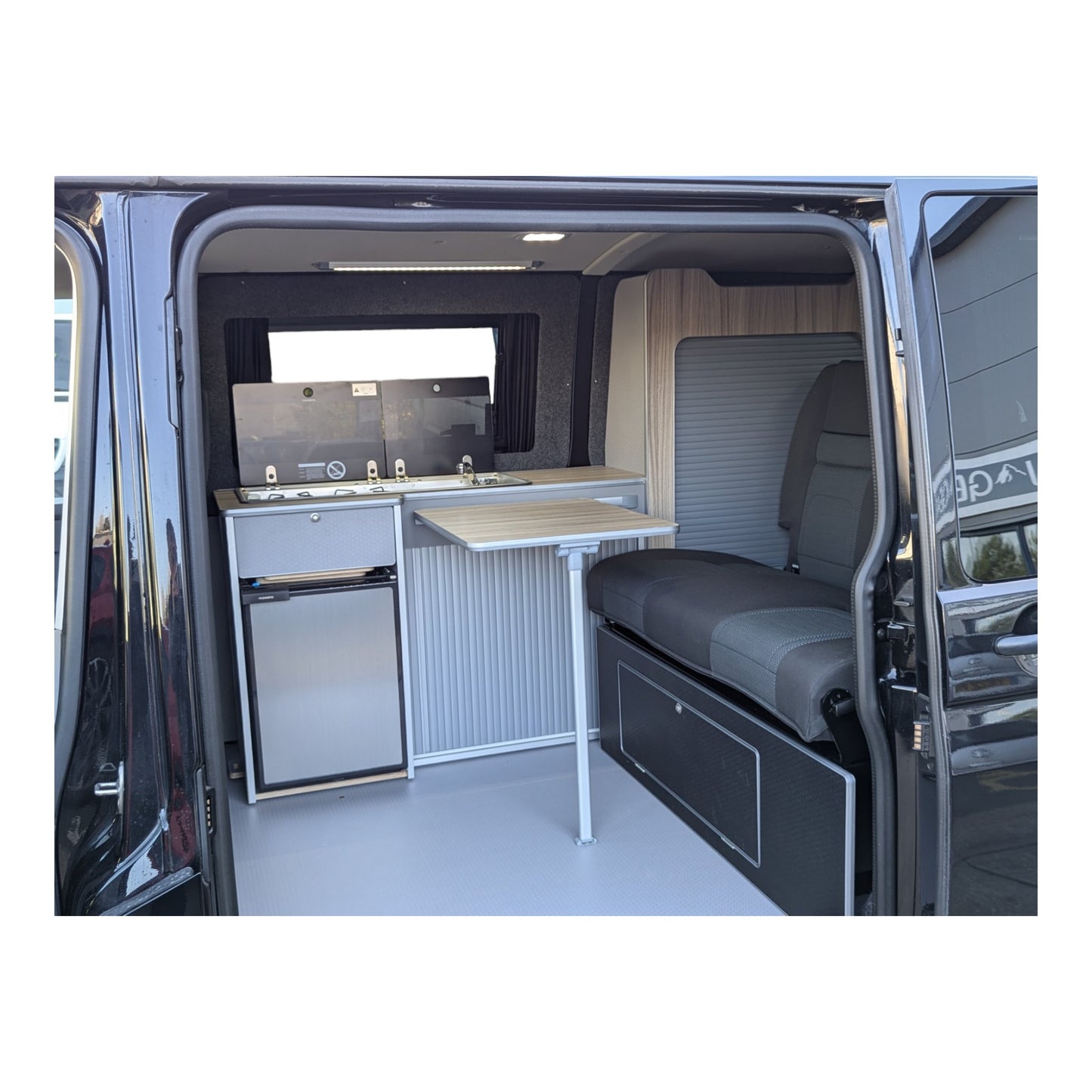

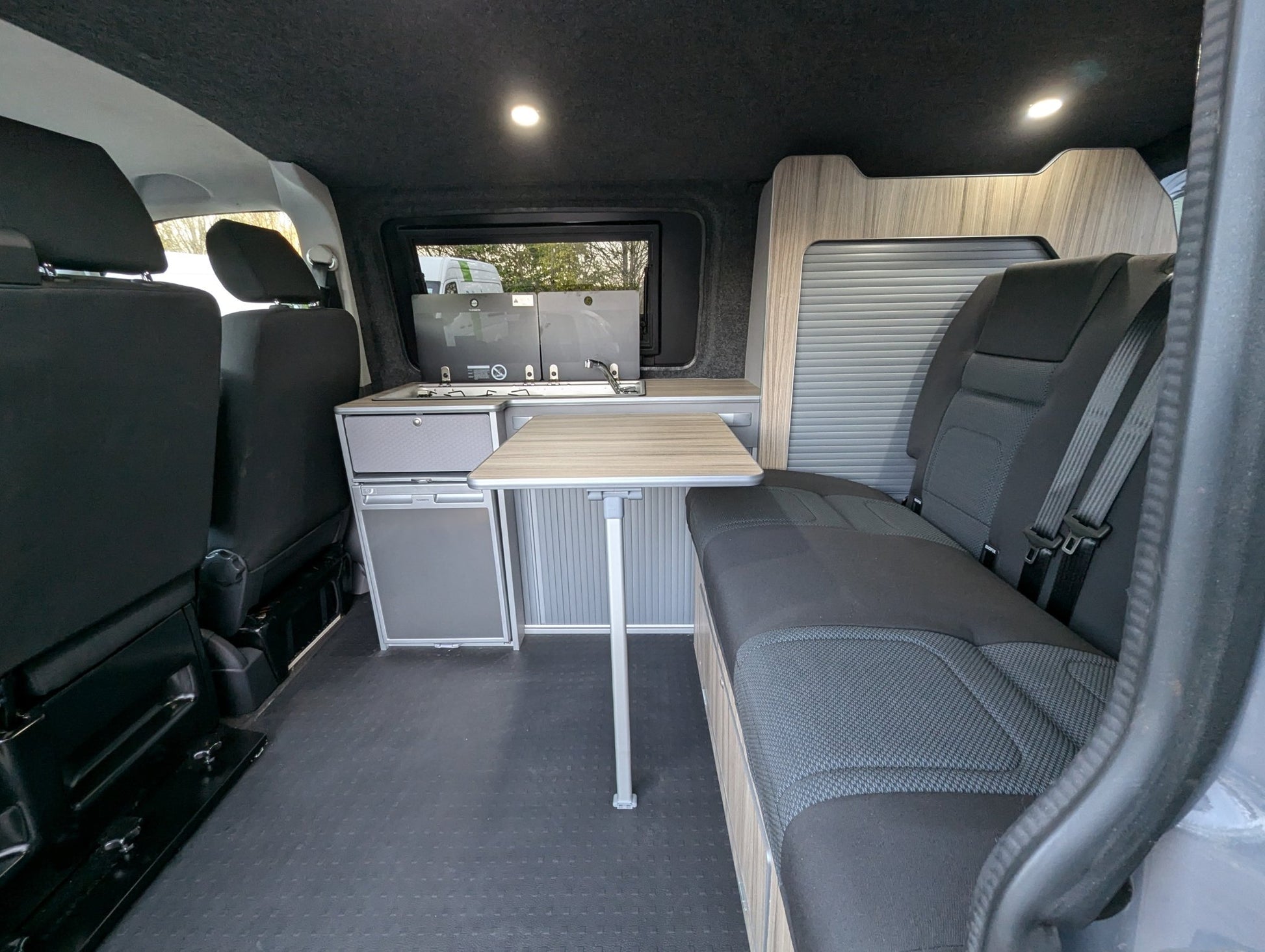

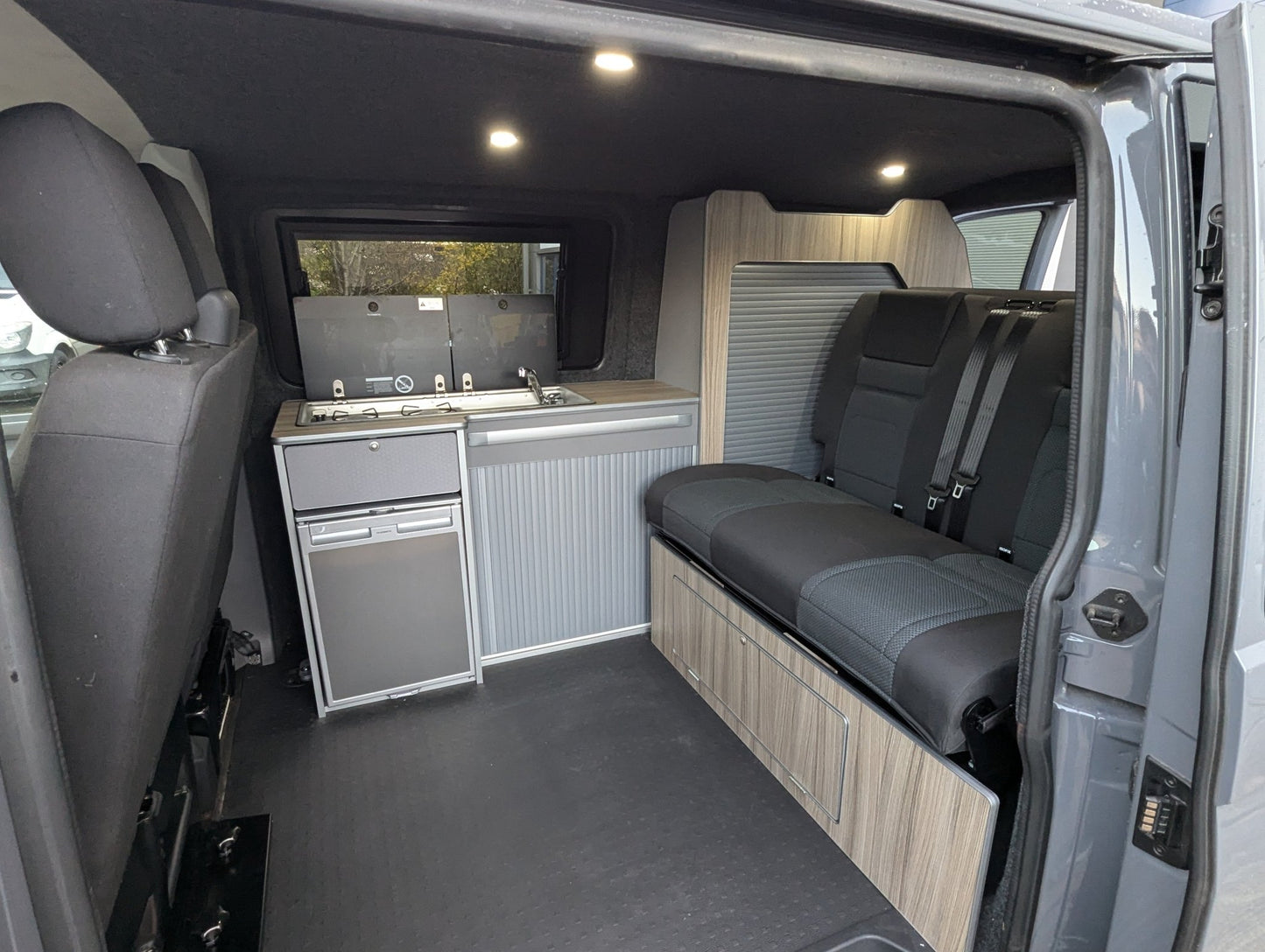

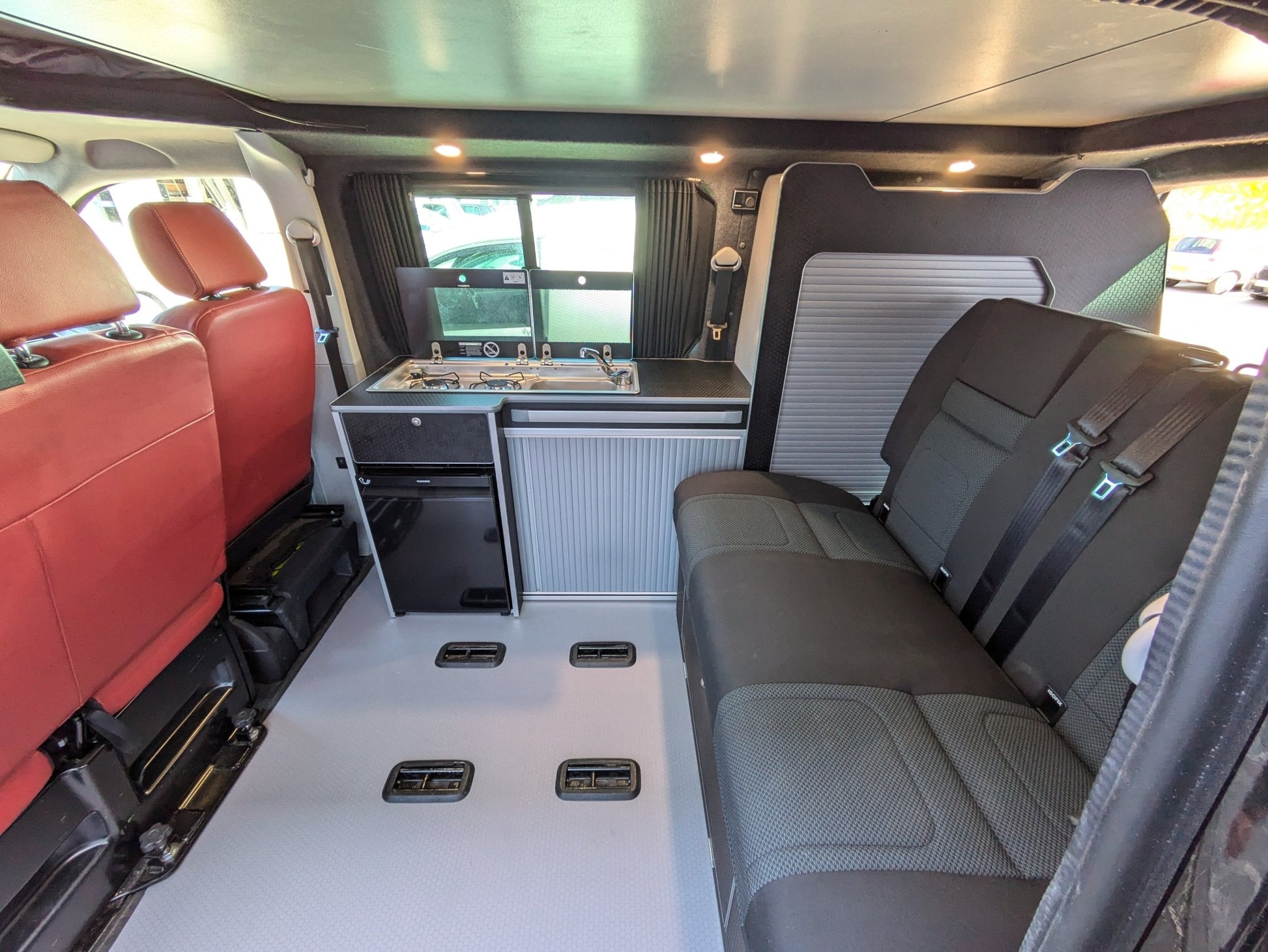

For SWB VW Transporter T5 T6 T6.1 - down the side of the van campervan furniture with space for a 50L fridge (Not including fridge)

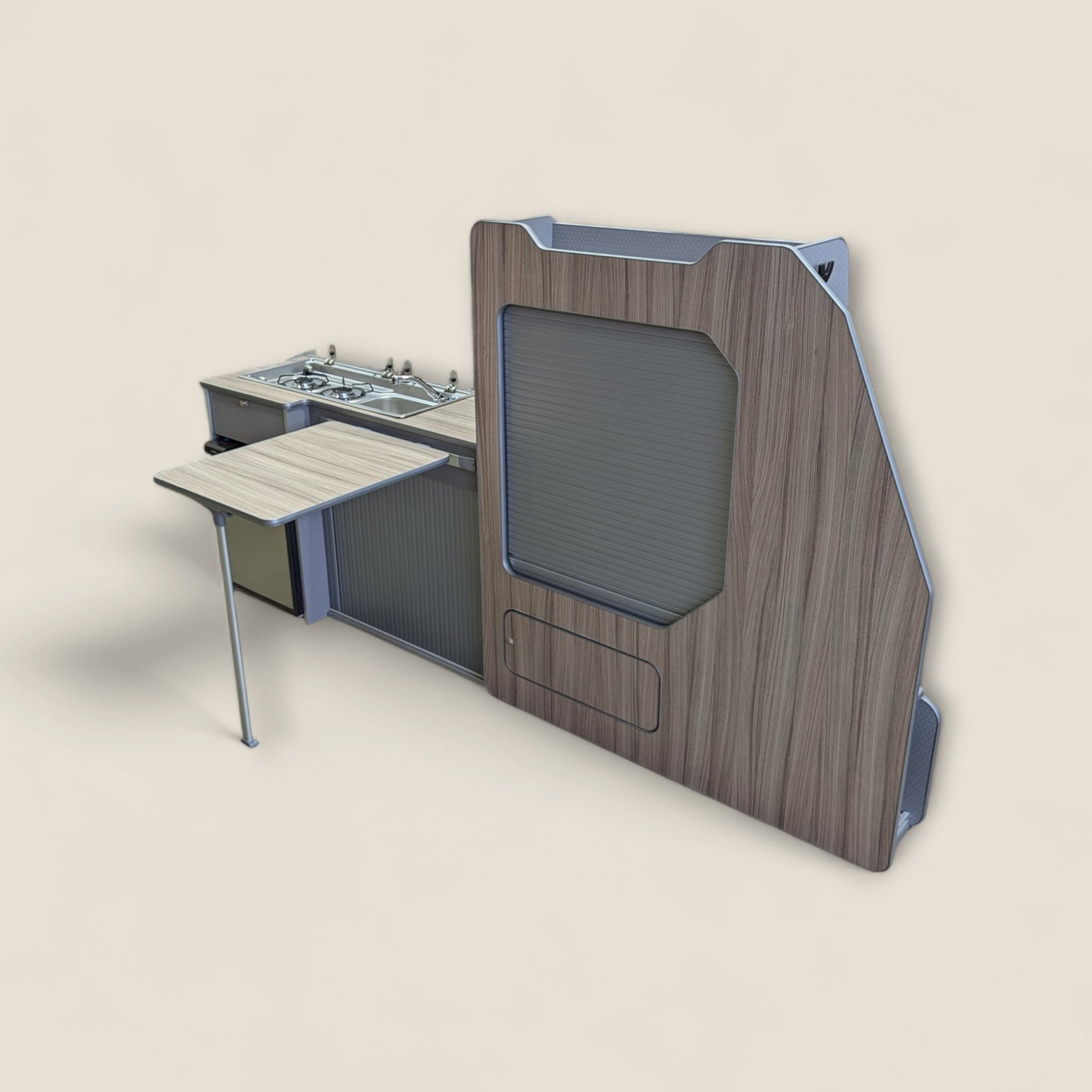

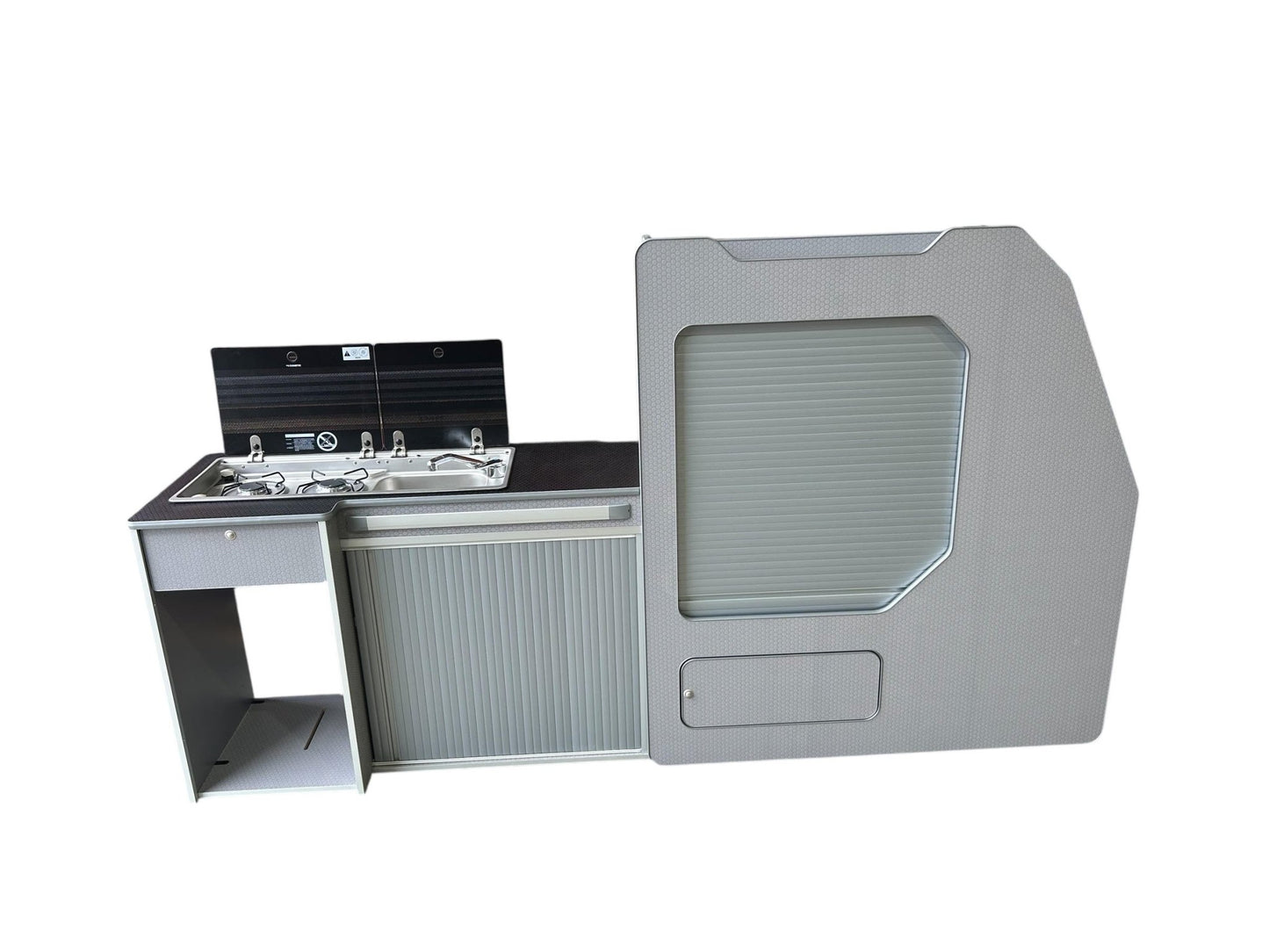

Delivered on a pallet in two parts, each part is fully assembled and only needs bolting together and fixing to the Transporter load eyes (front,middle and rear)

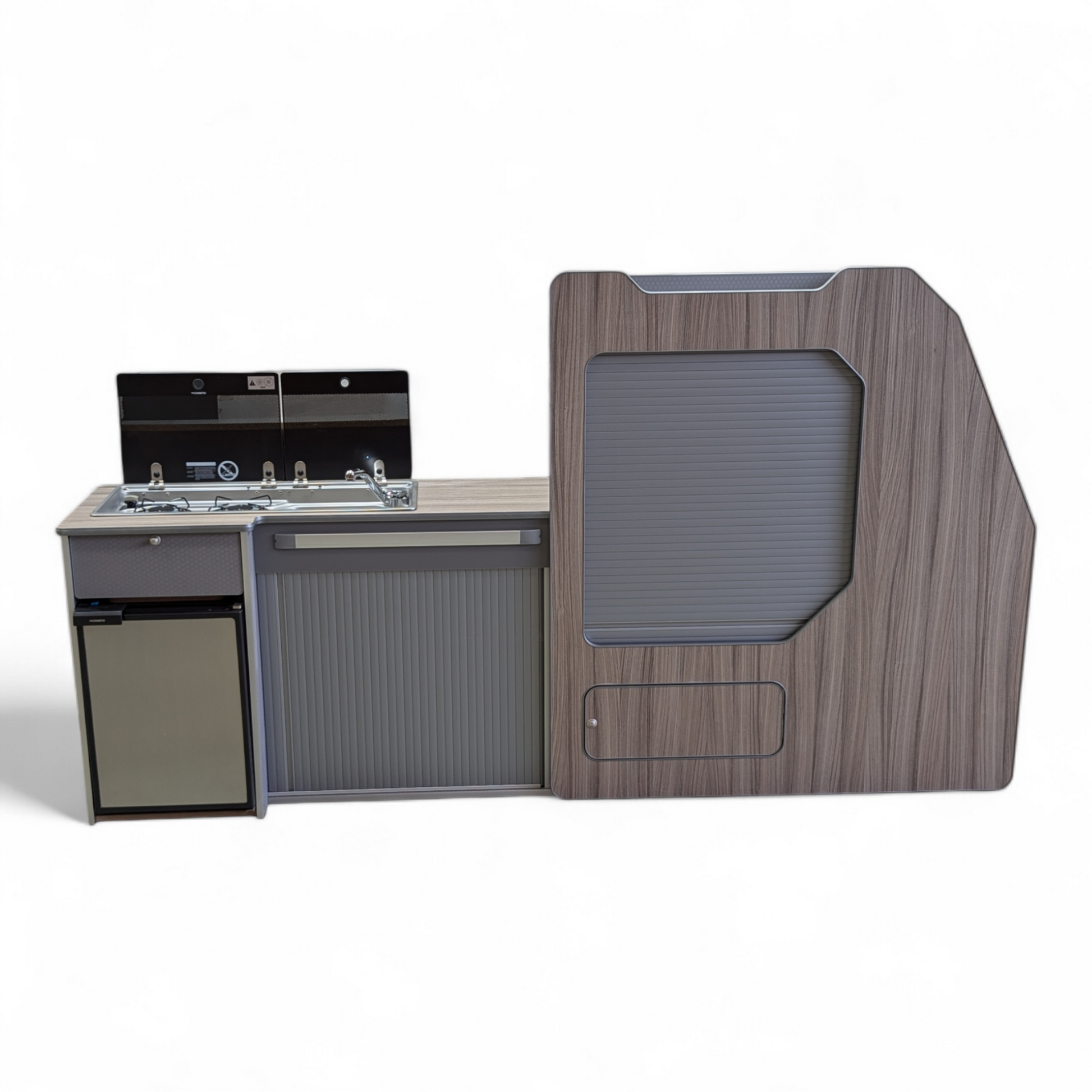

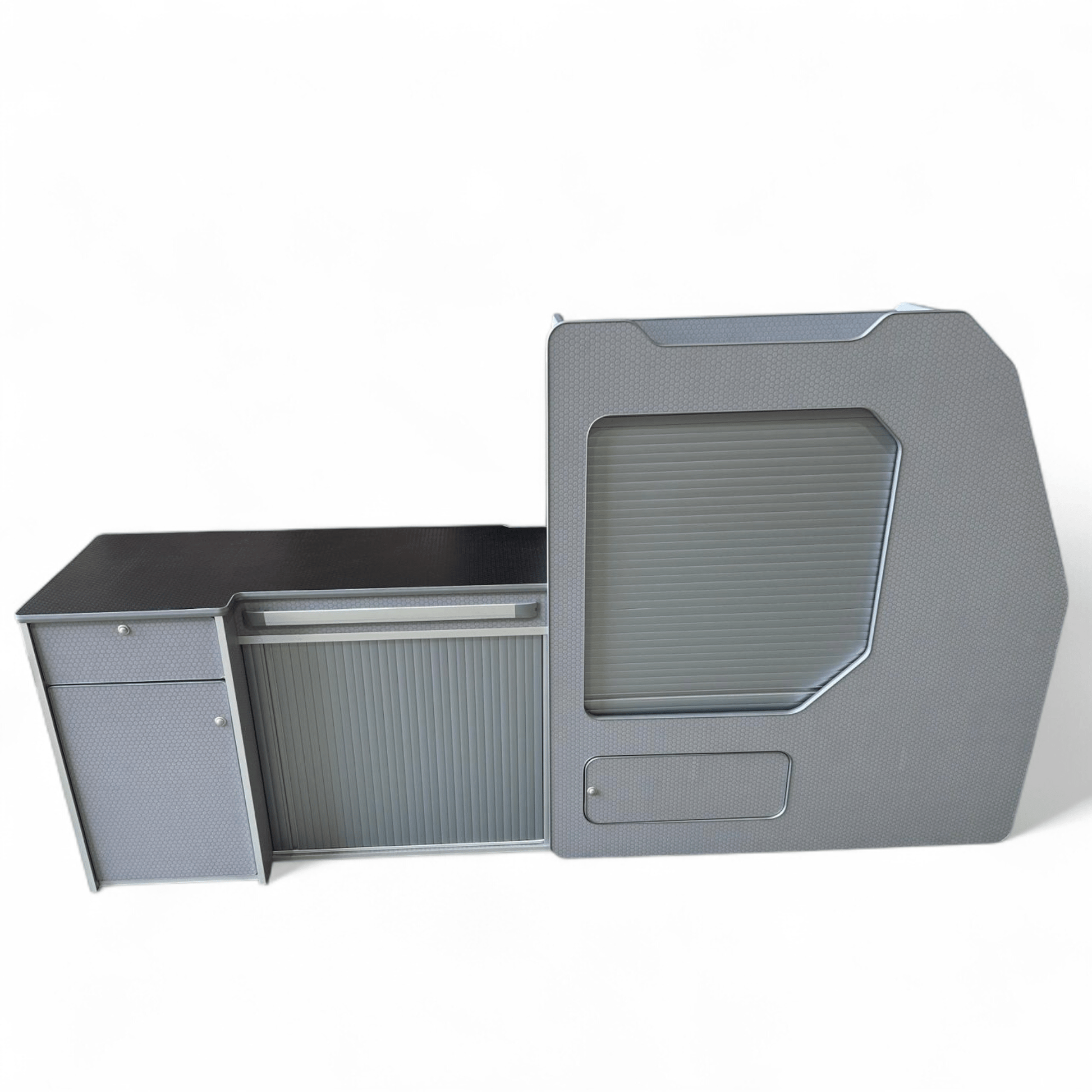

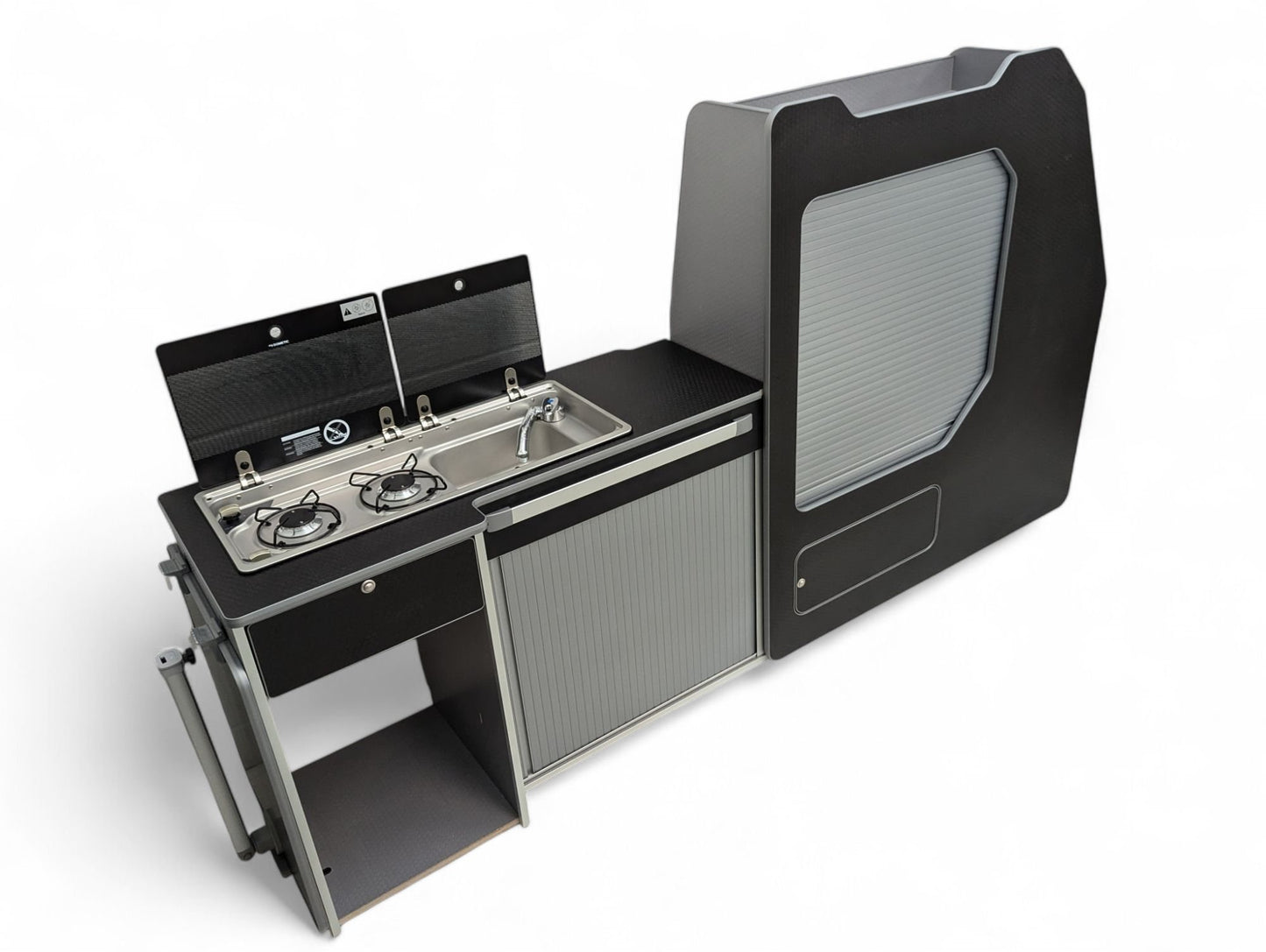

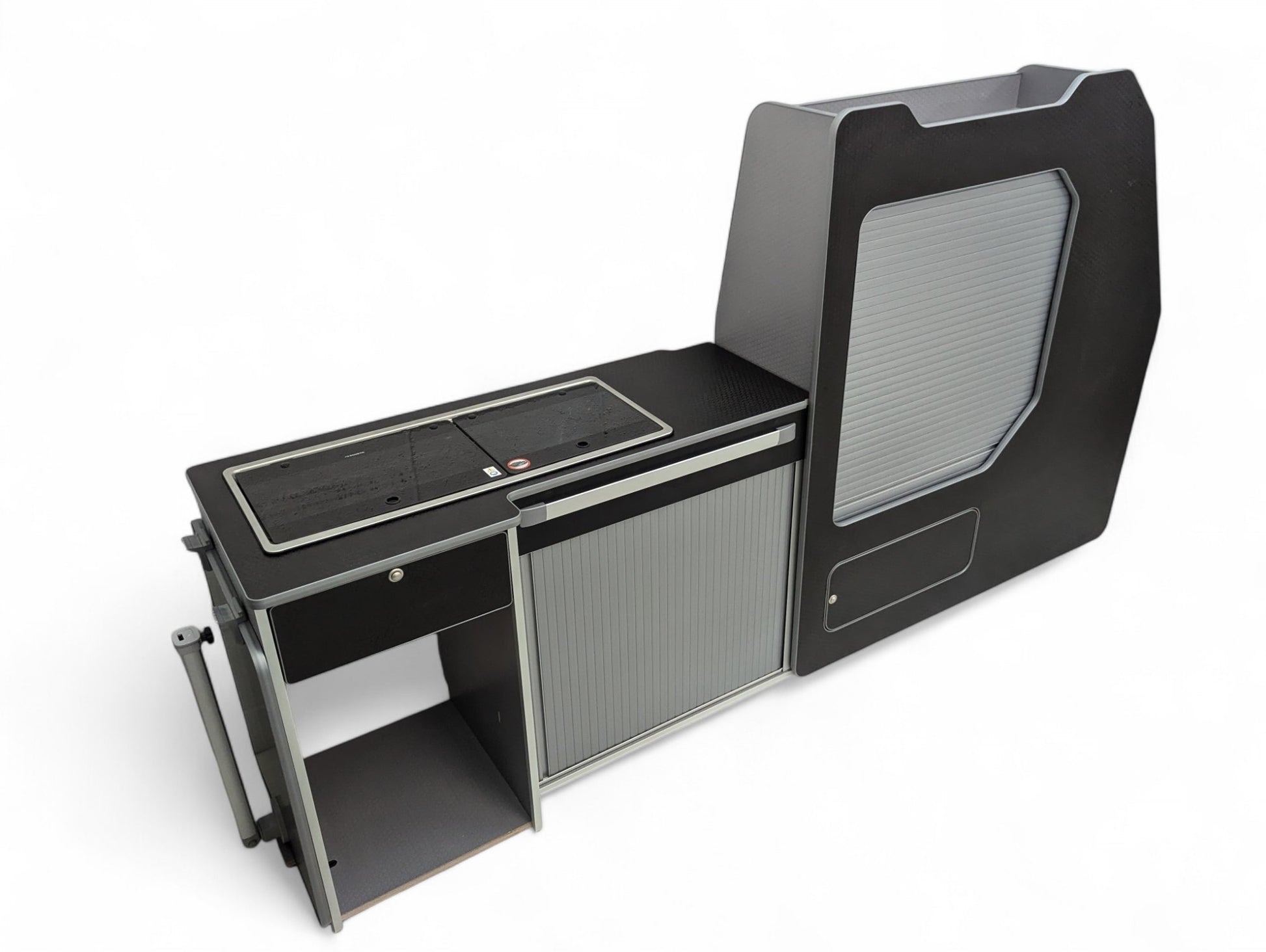

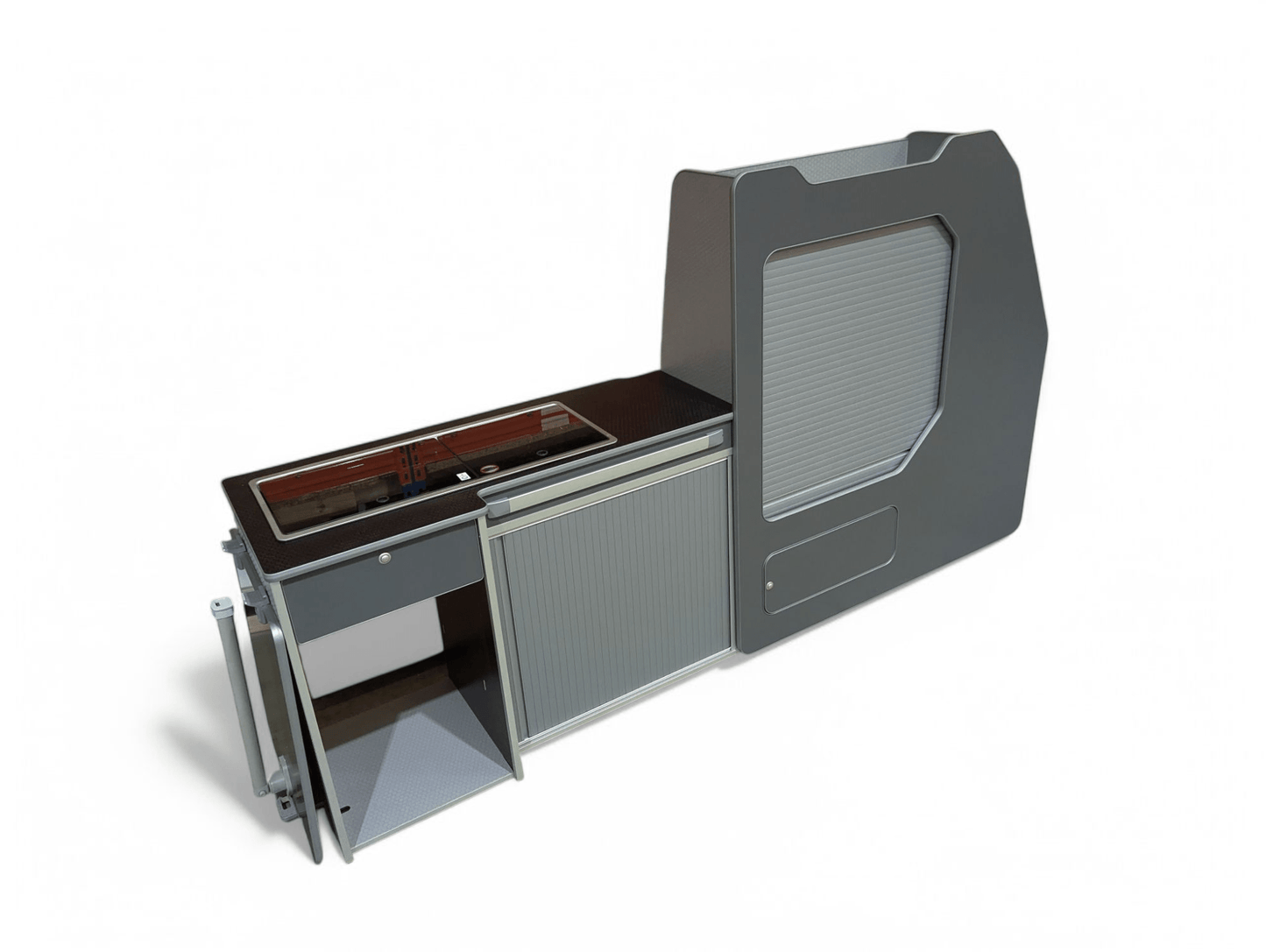

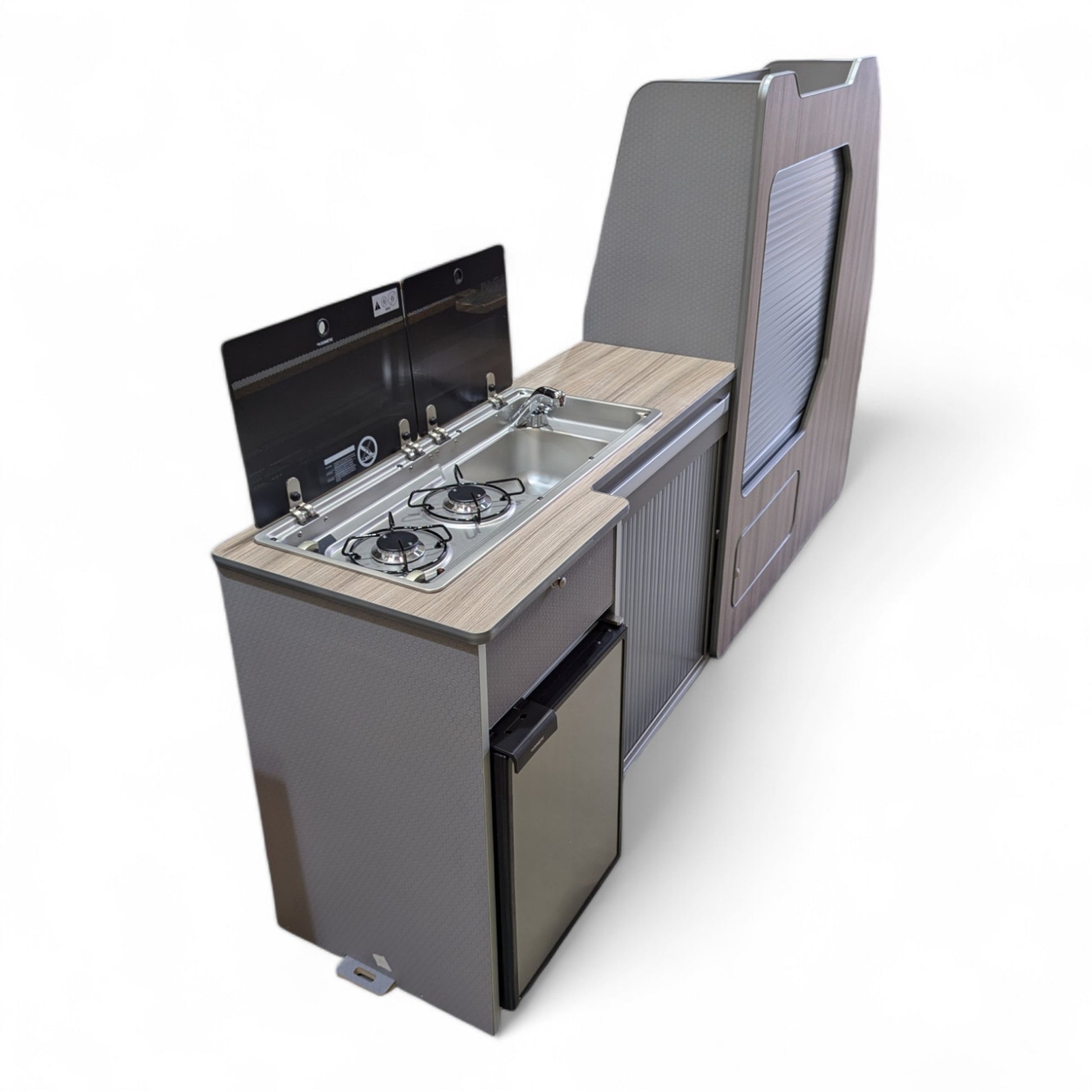

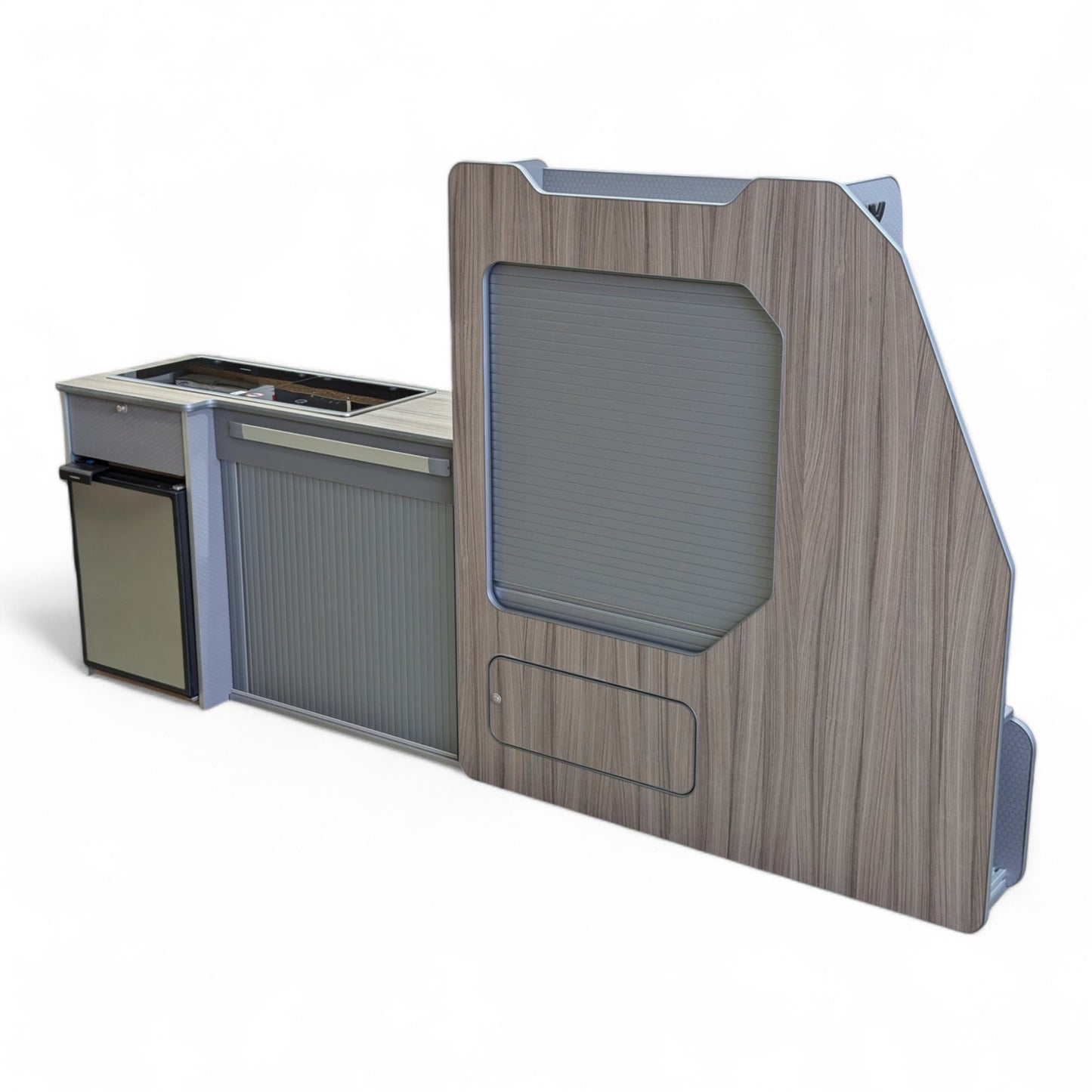

Colour Options: Black Hex, Carbon Grey with Black Hex top or Grey and Driftwood
Space for a CRX50 or CRE50 type fridge (Not included)
Larger counter top with Dometic 9722 fitted
large table (490mm x 600mm) is included.
Lead time = 3 weeks

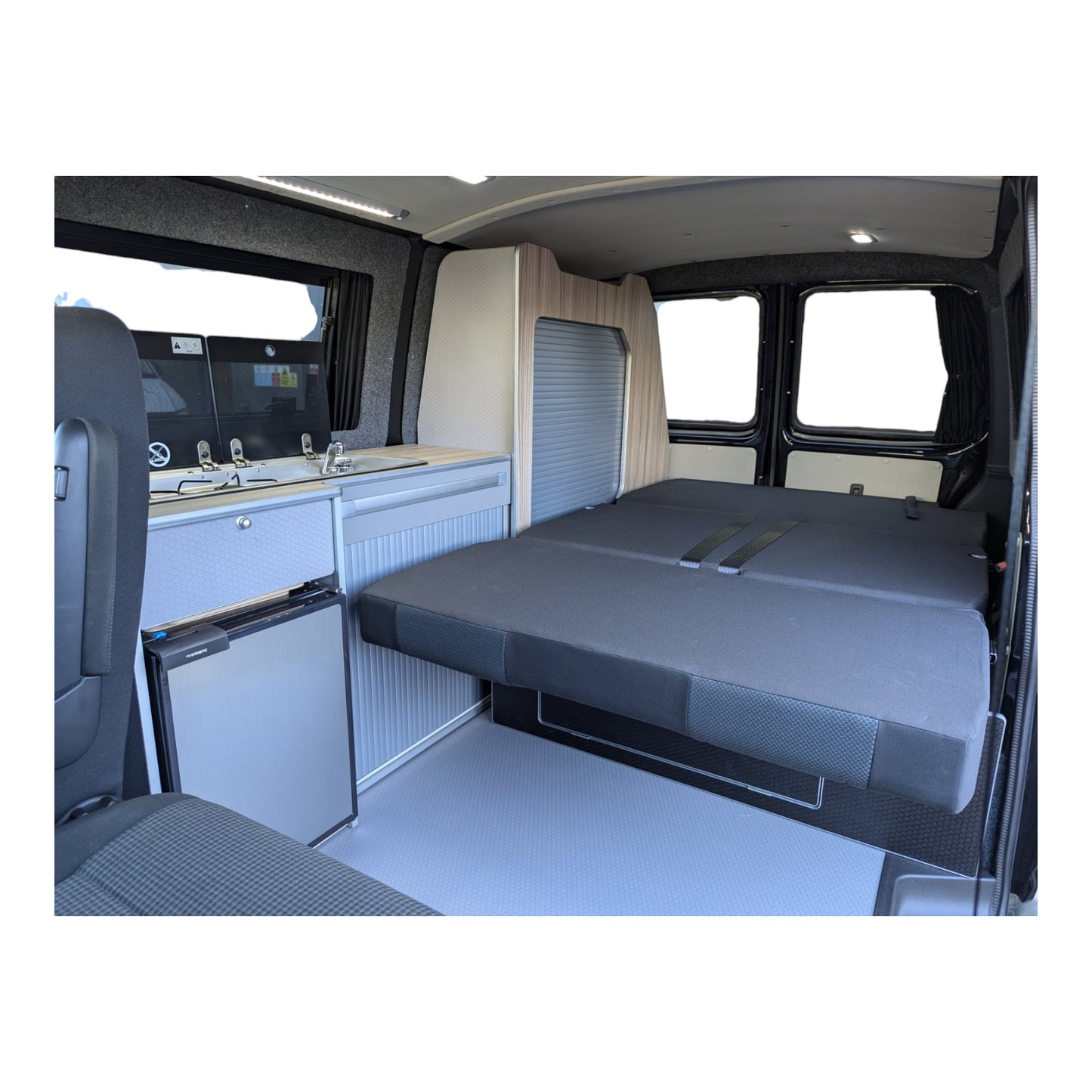

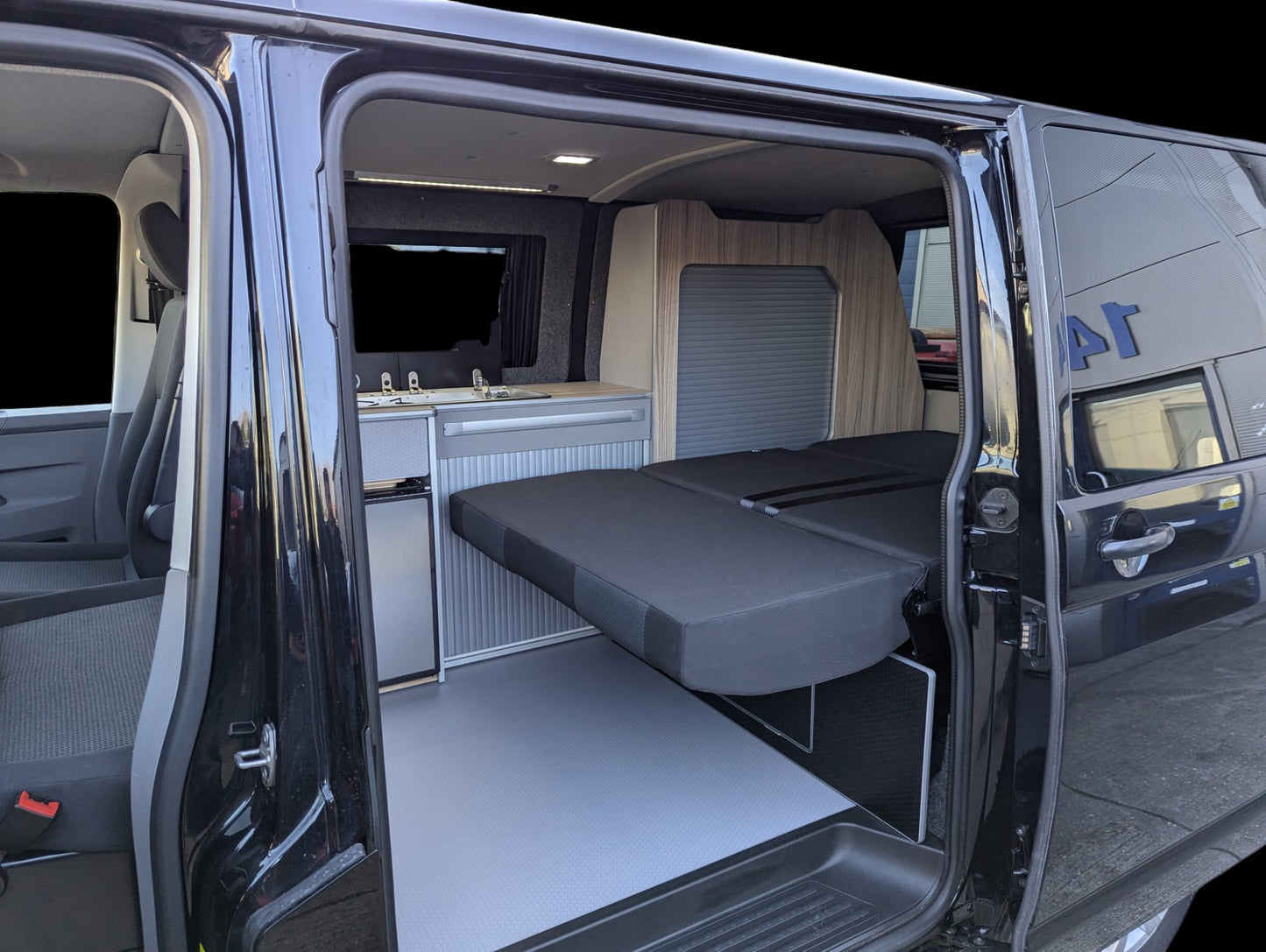

Designed for the VW T5 T6 T6.1 panel van (SWB) and to work with a 3/4 rock & roll RIB 112 bed (1120mm).
Fully assembled & ready to go

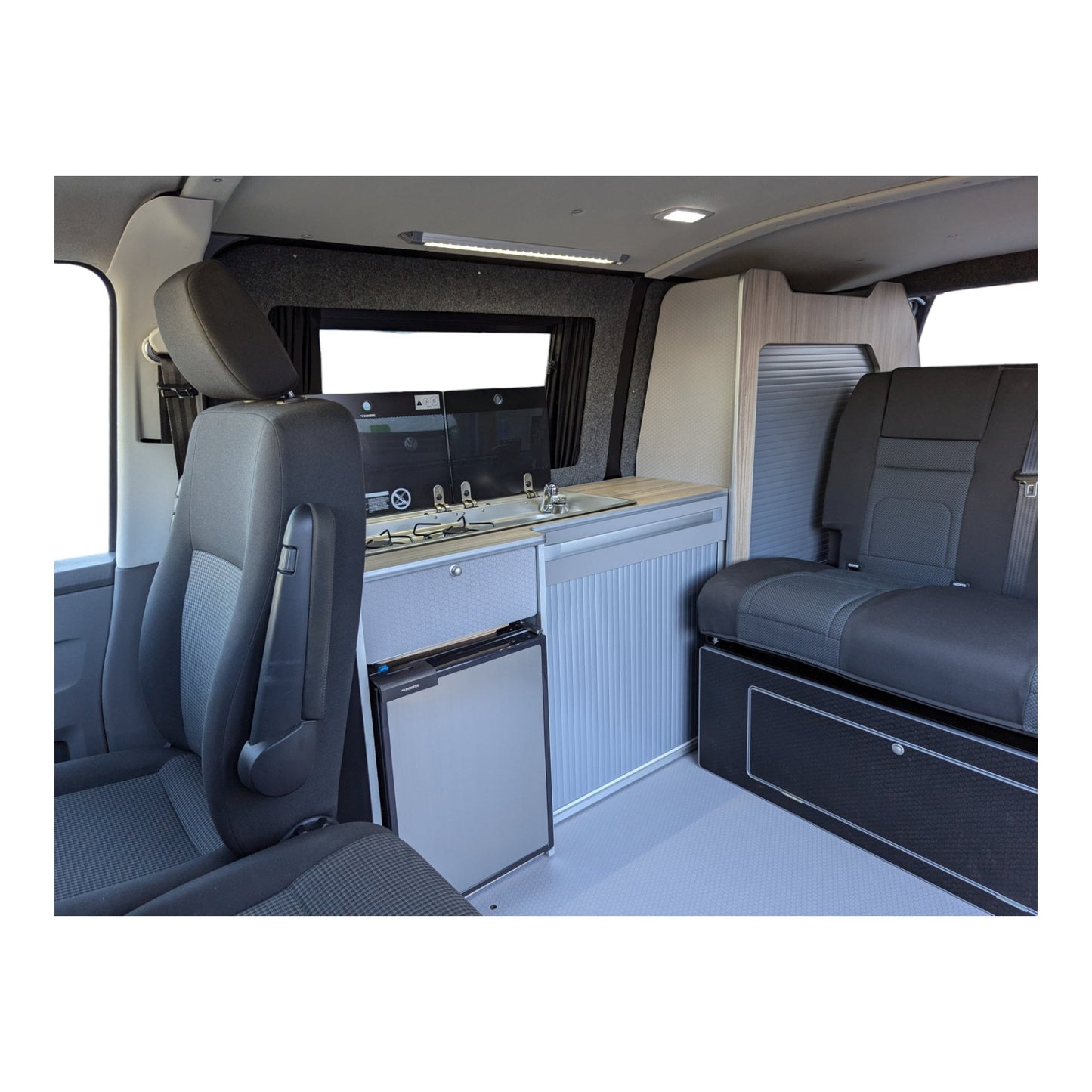

Includes double burner hob/sink combination
Plug & play with integrated plumbing & 12v plug (just add the gas bottle)
Bolts supplied for Transporter load eyes
Dimensions:
Short Wheelbase Transporter (based on VW T5/T6/T6.1 SWB)
Height = 1300mm (kitchen pod height = 750mm)
Total Length = 2280mm
Depth = The kitchen pod depth is 390mm
From rear door to fridge extension is 1910mm, the front kitchen is 1120mm and the rear part is 1160mm

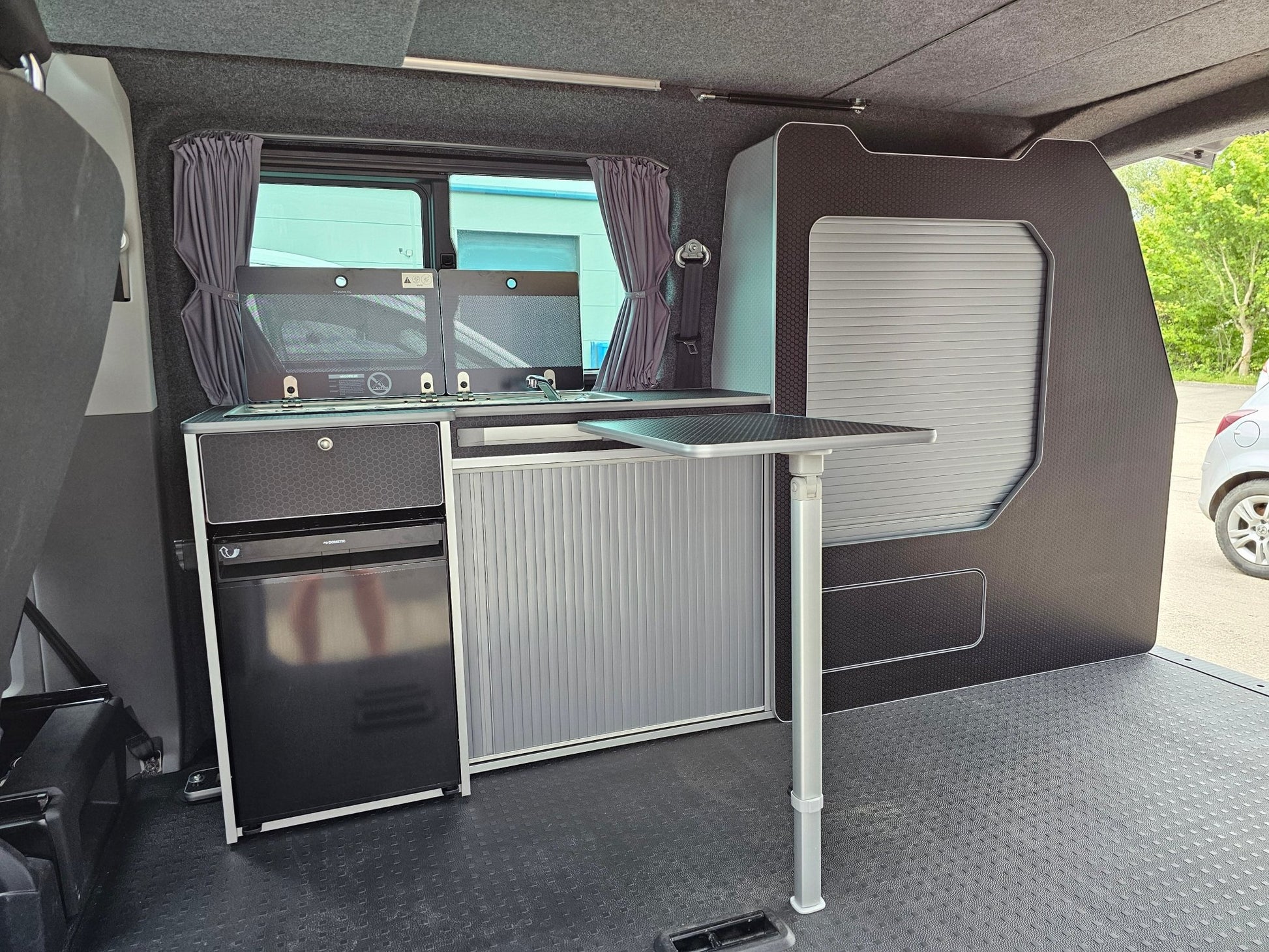

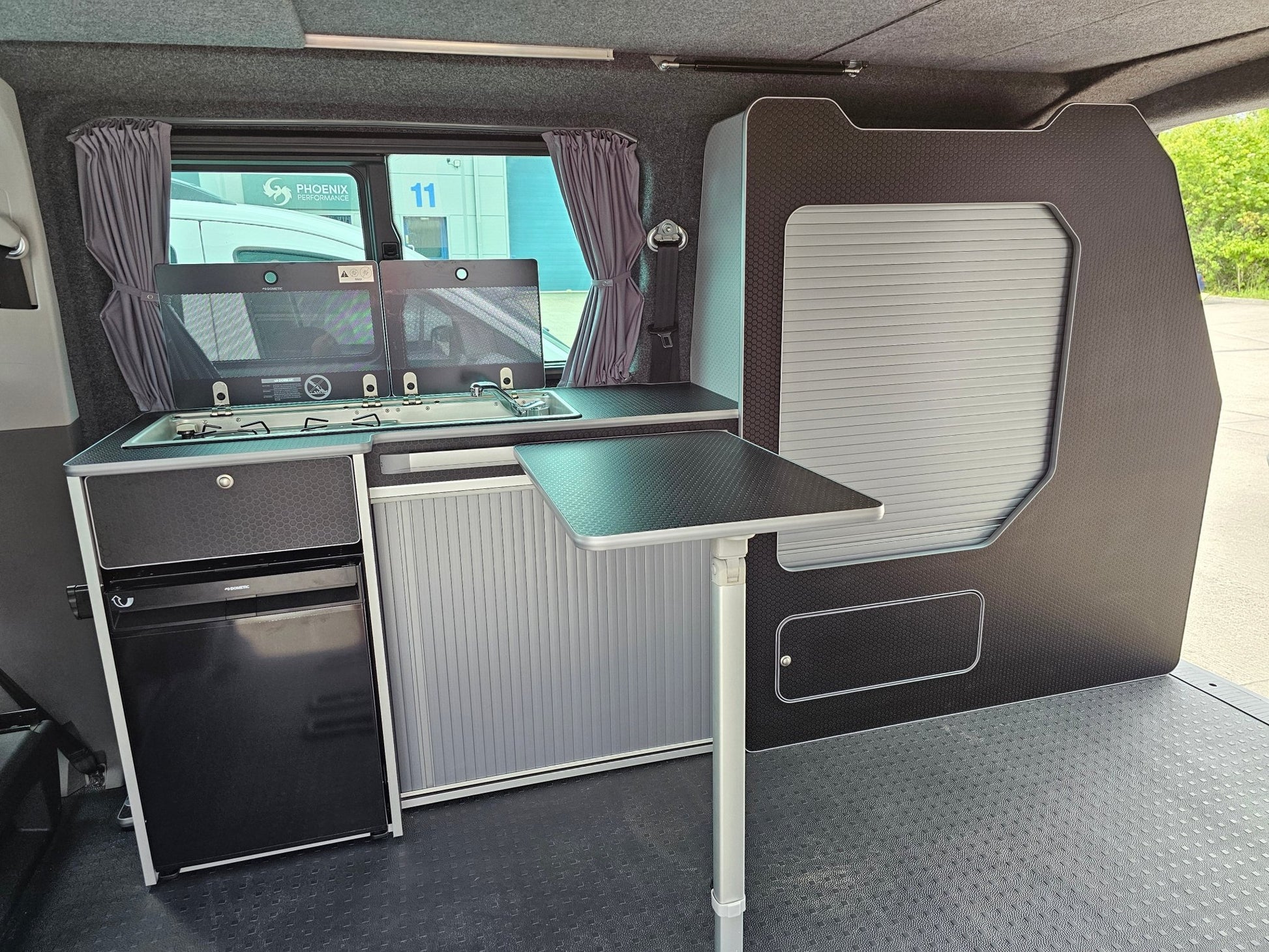

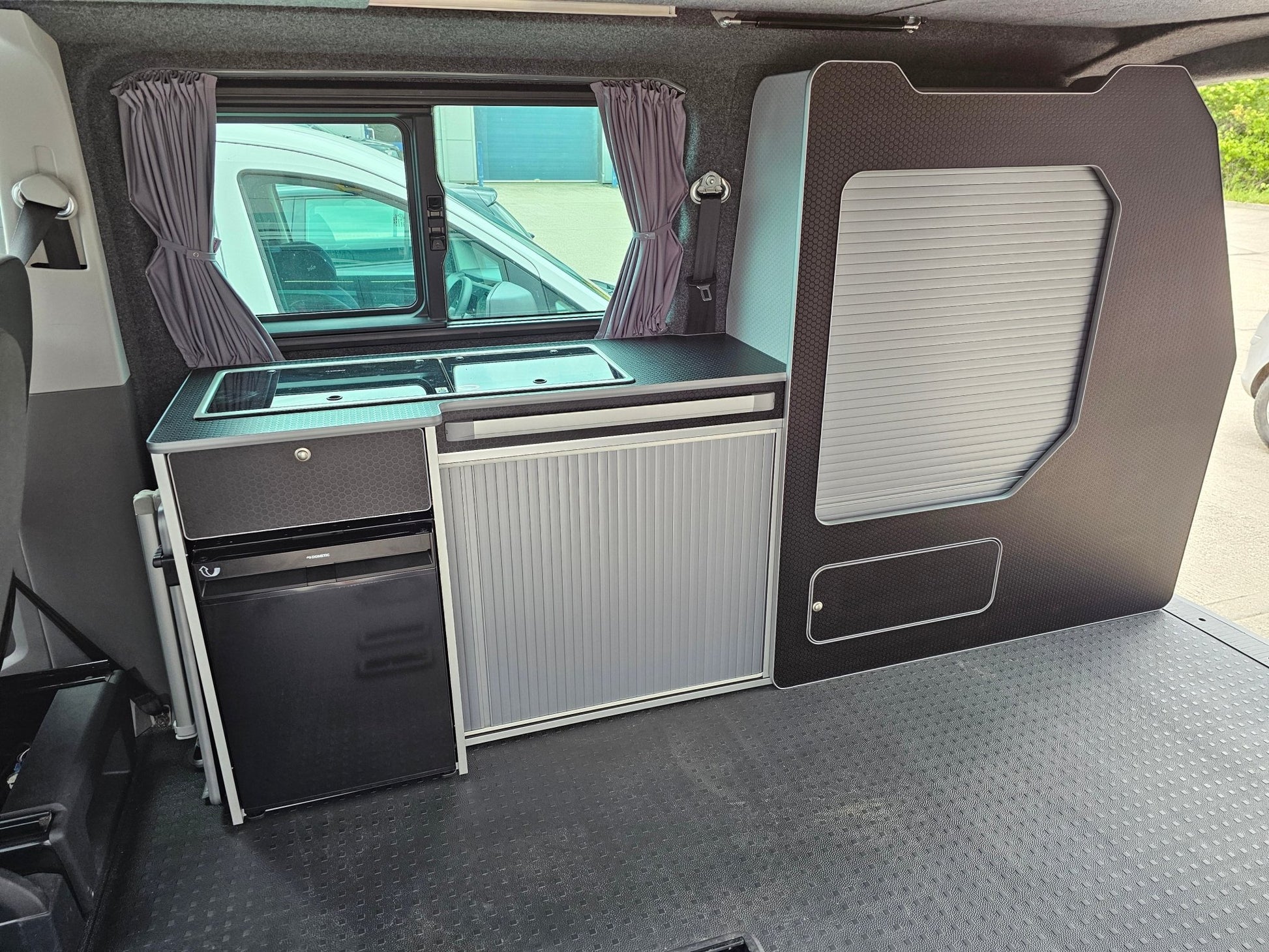

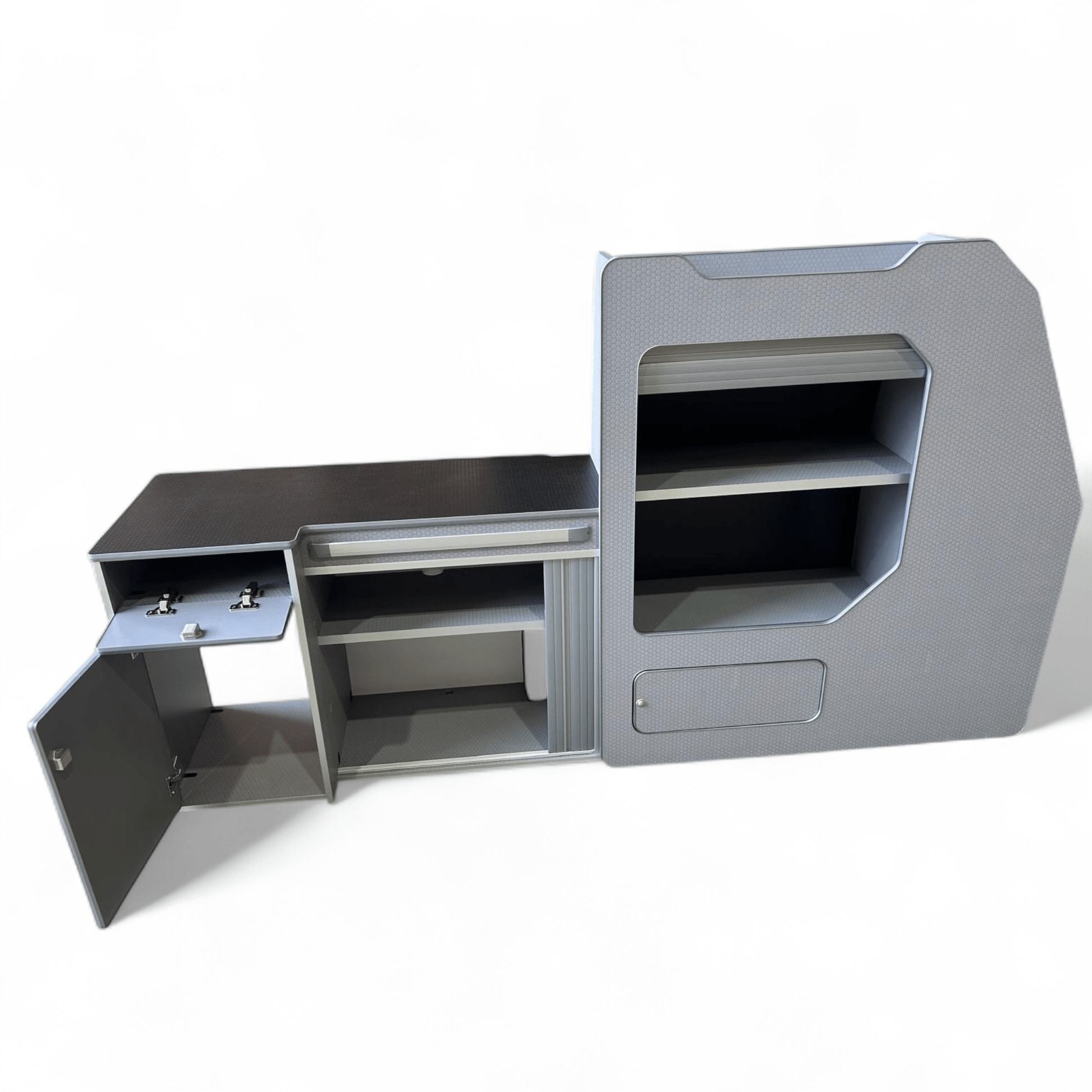

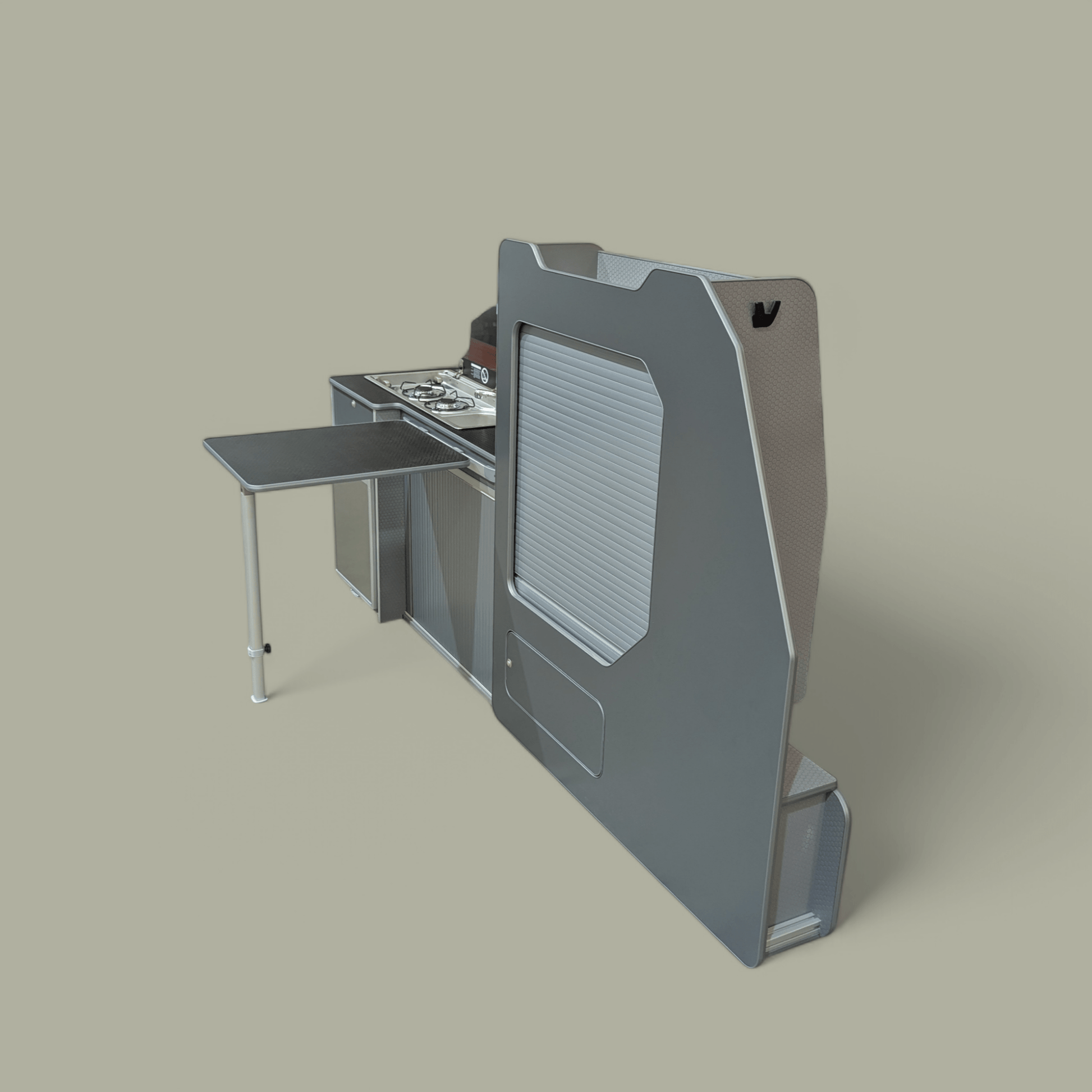

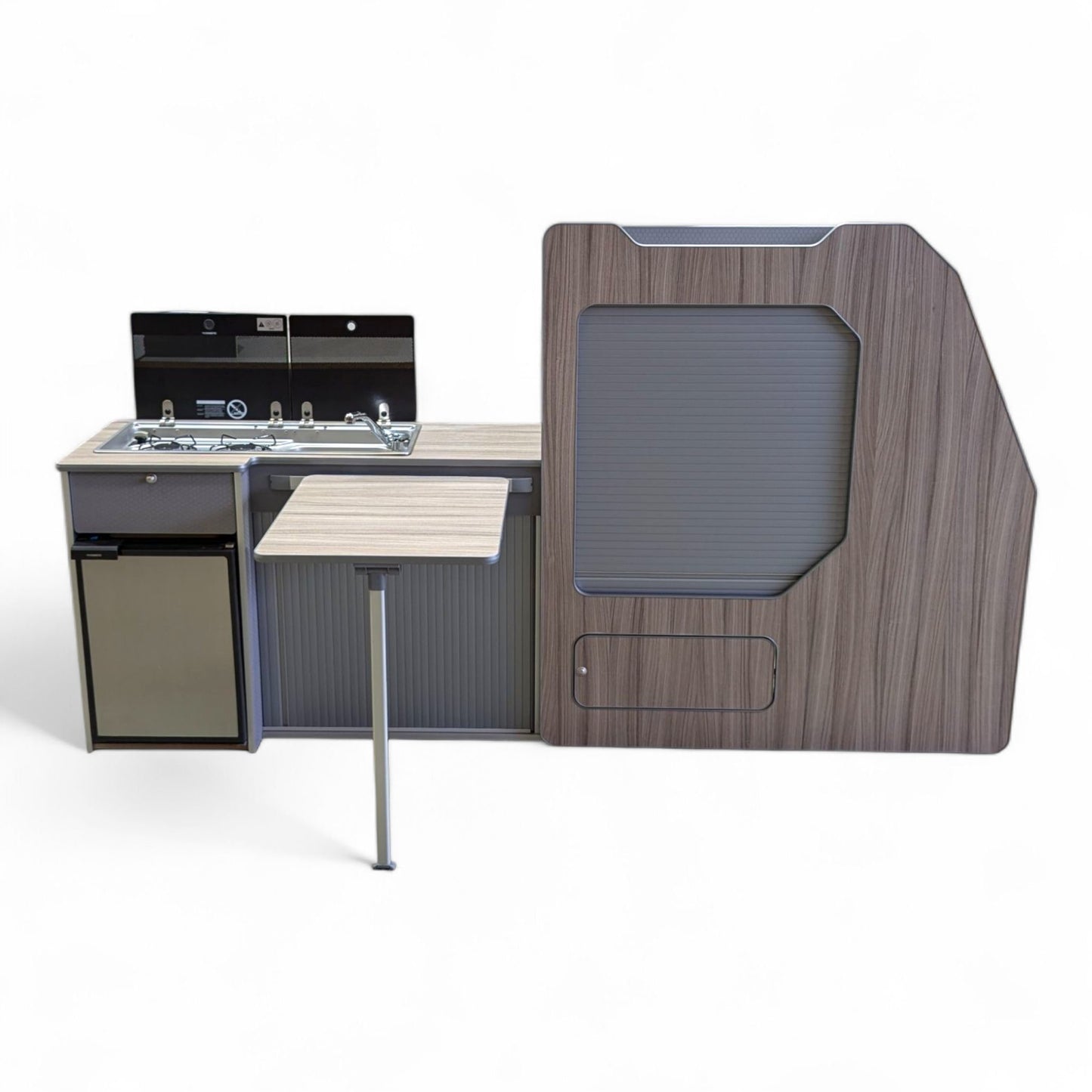

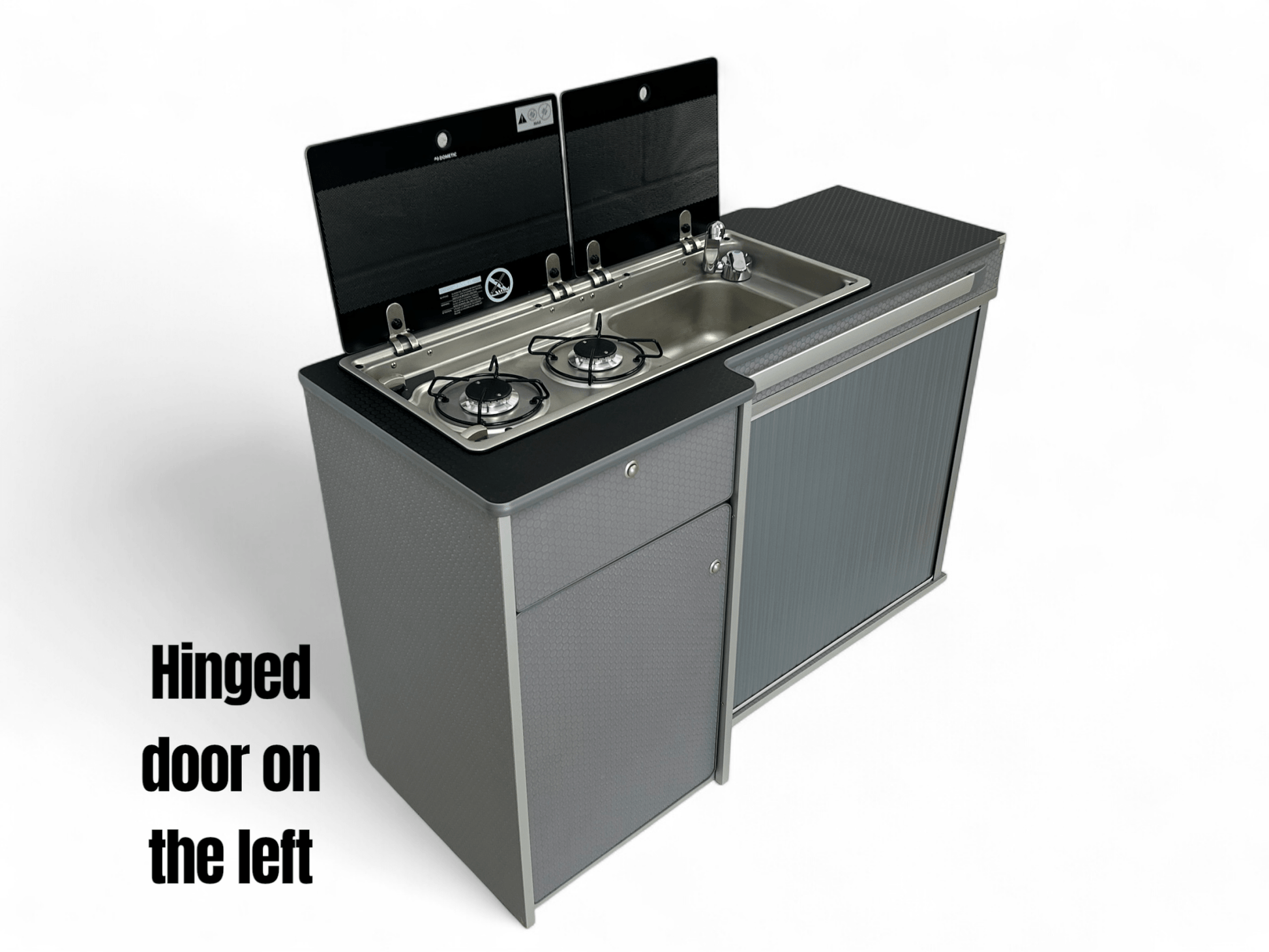

Kitchen Pod

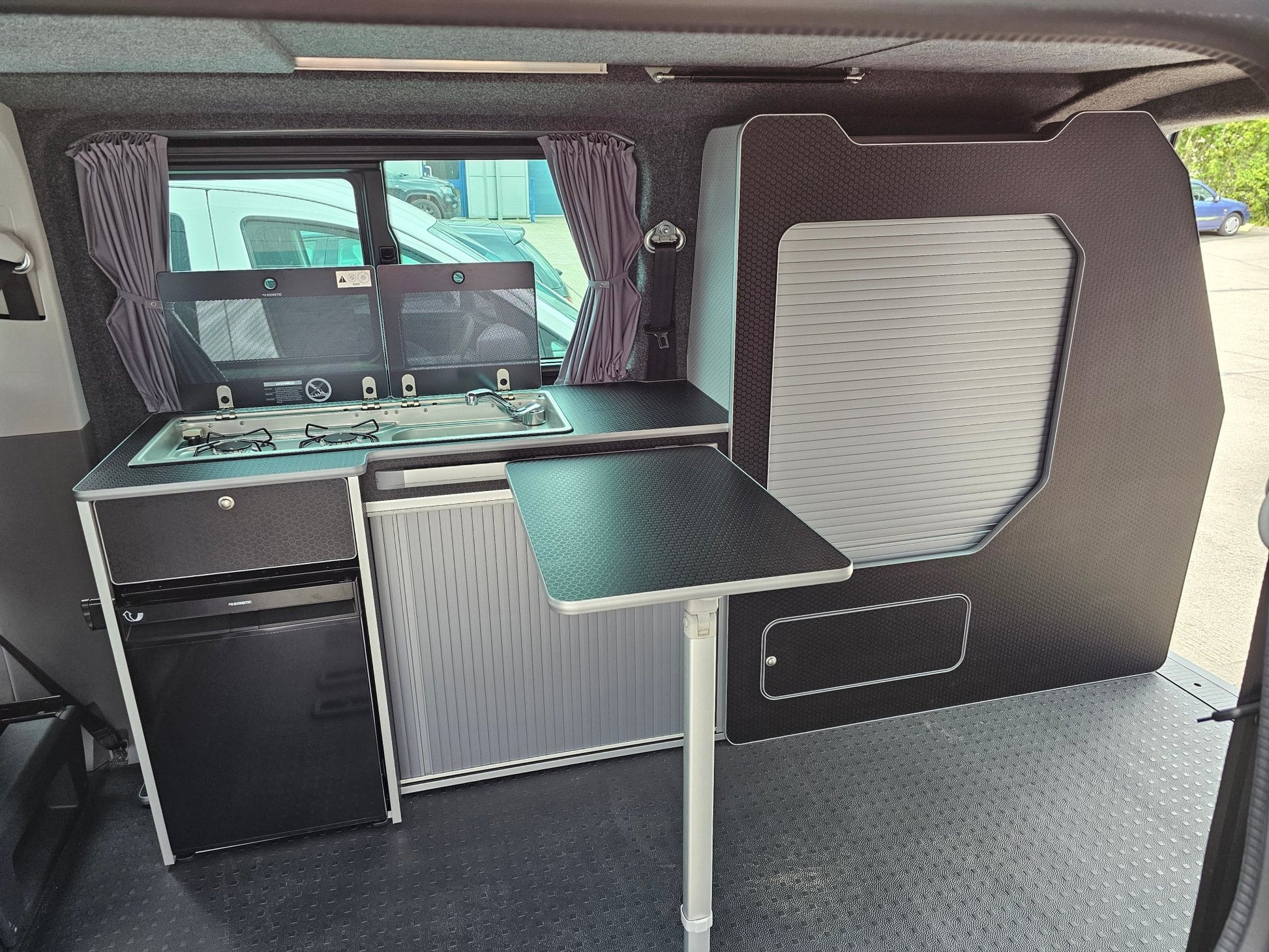

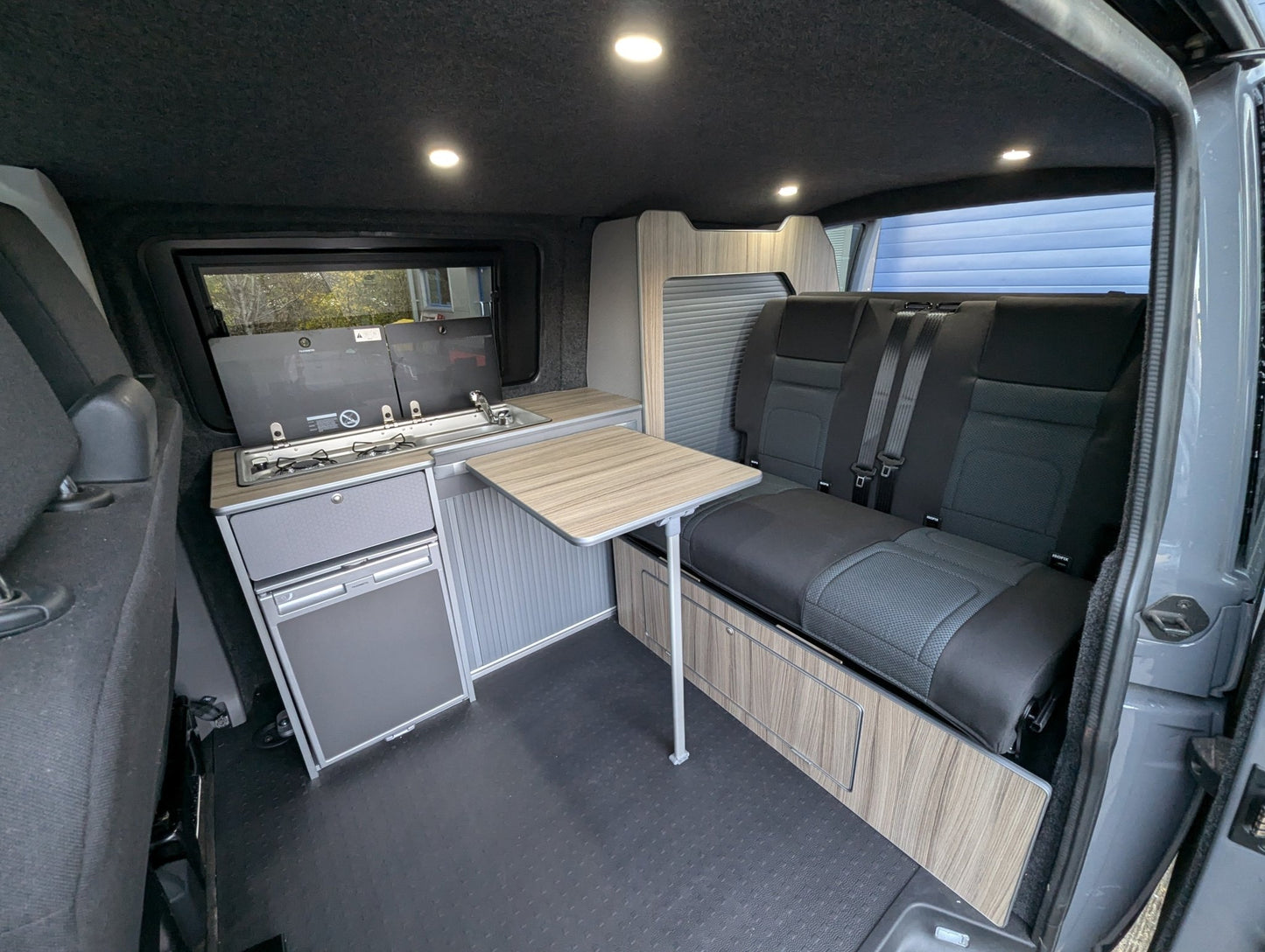

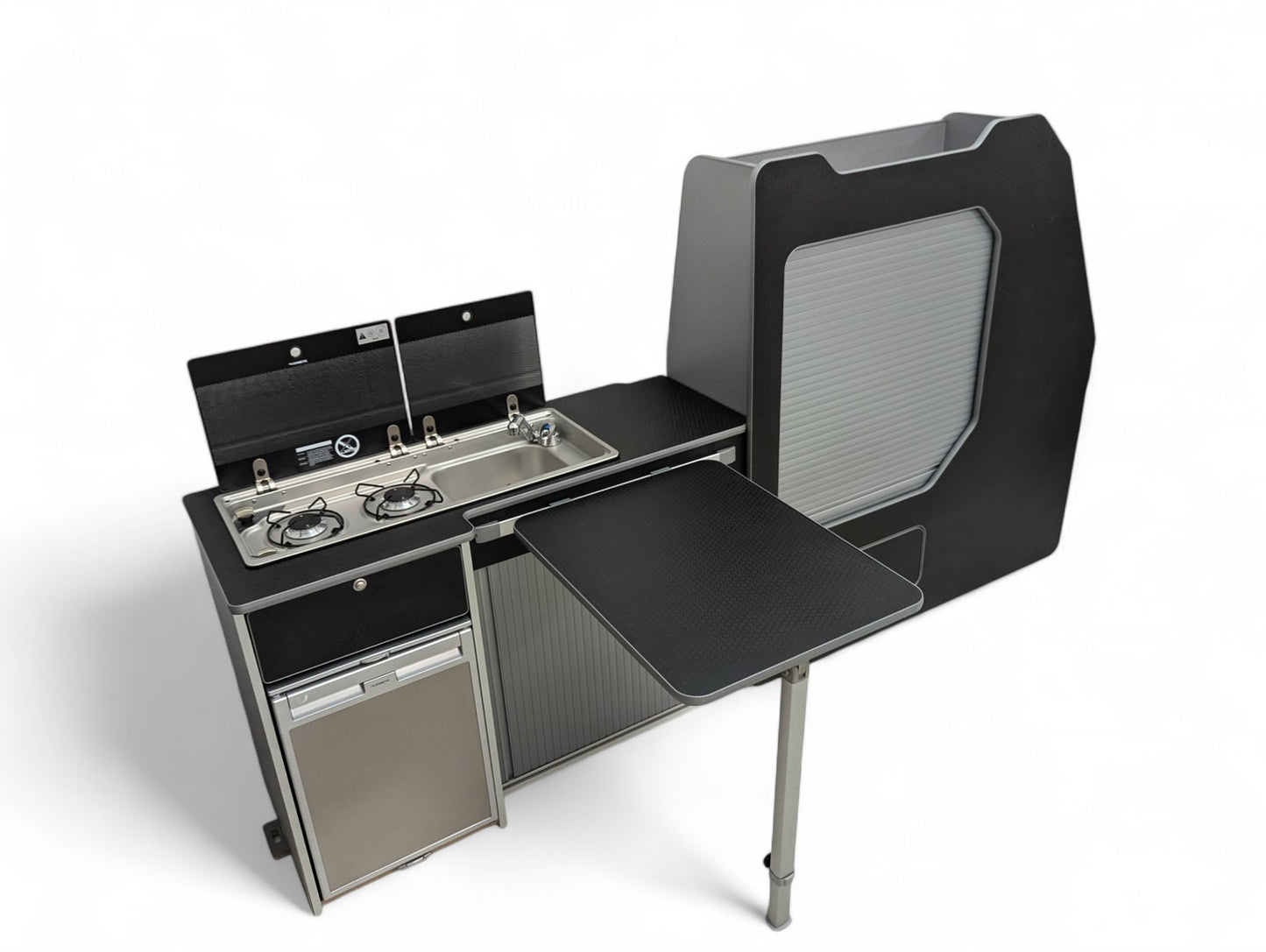

Anodised aluminium table rail front and a large table (490mm x 600mm) is included. There are storage clips on the left side of the unit for storing this.
Tambour door in front unit and rear pod

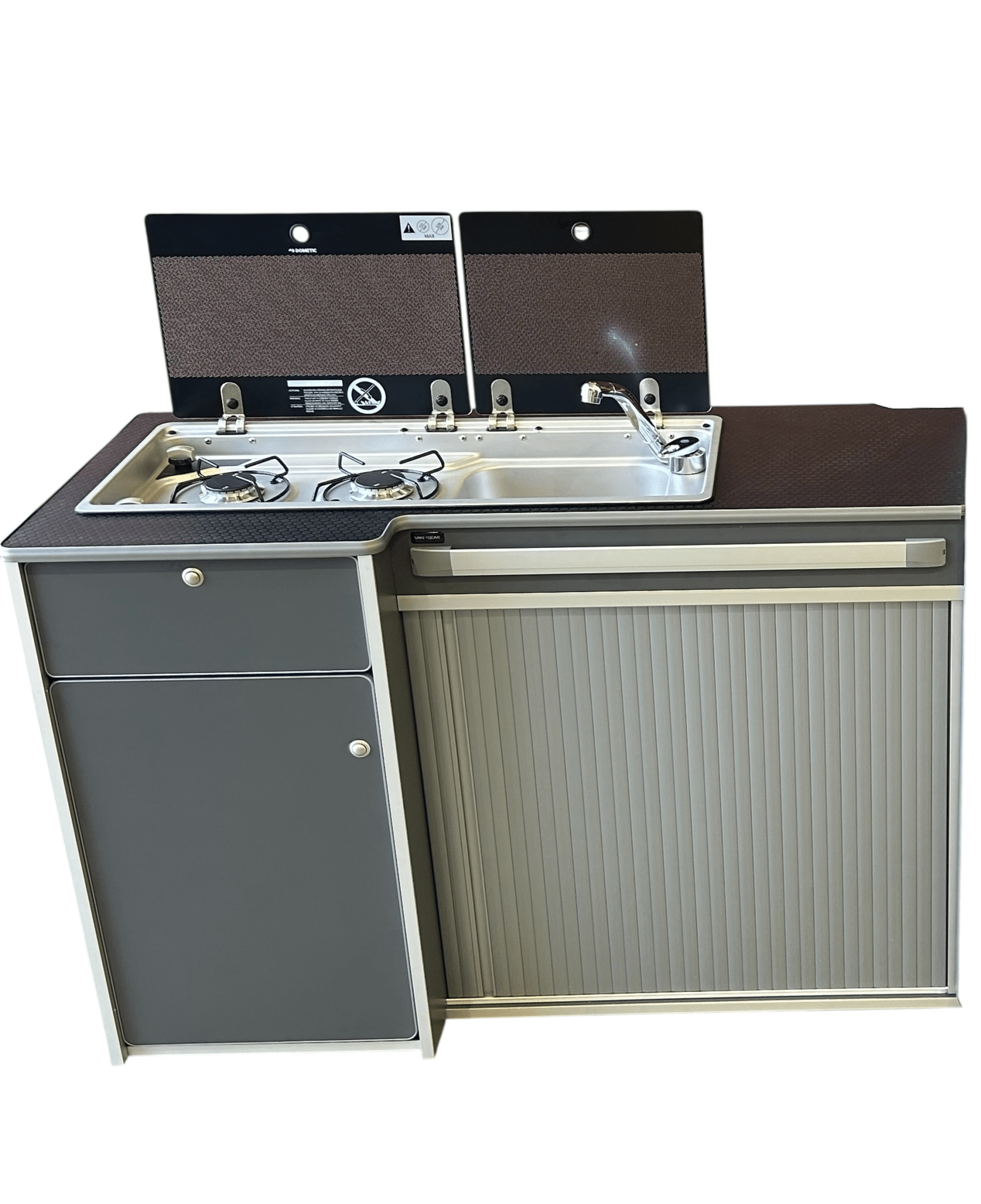

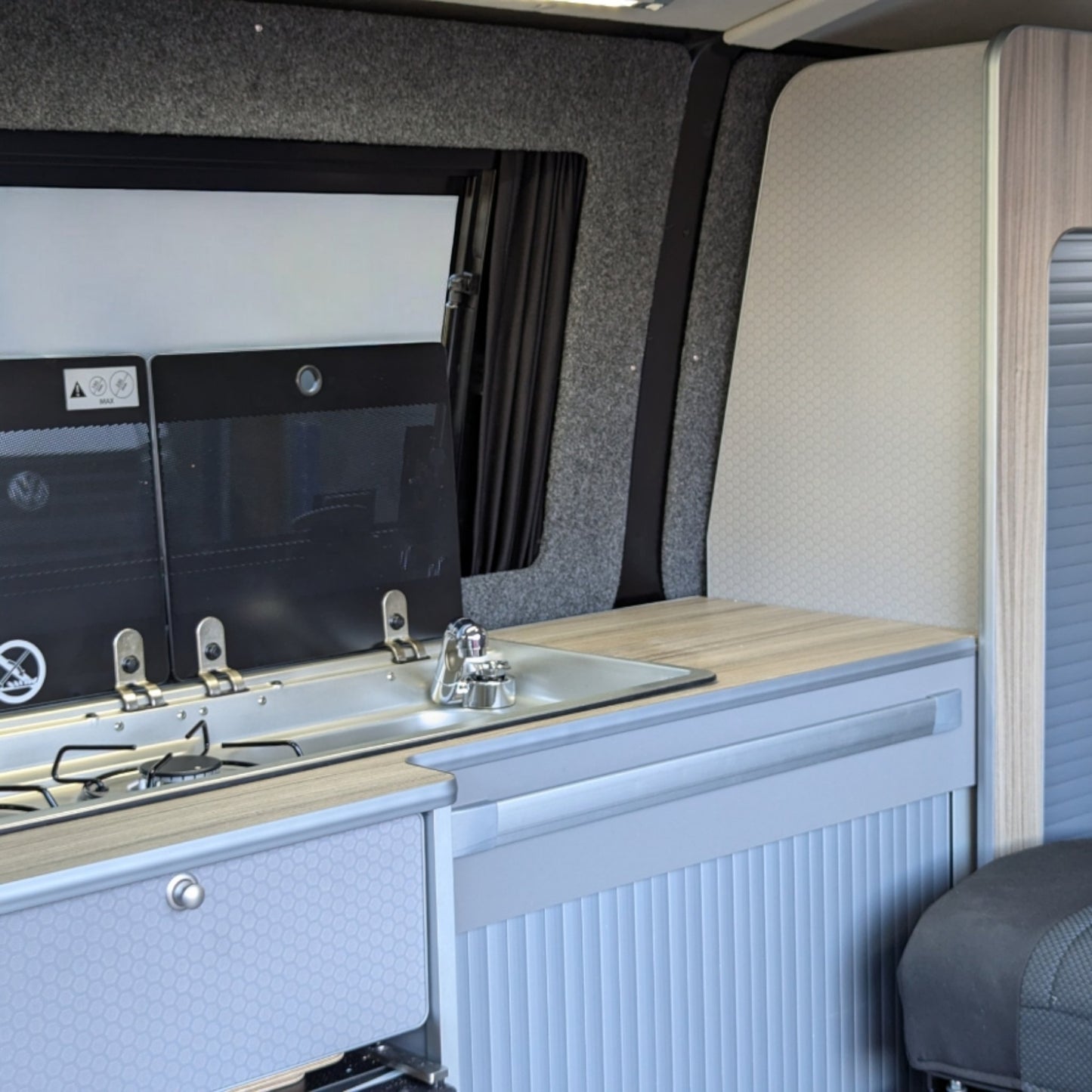

Includes Dometic 9722 sink/hob combination unit + Florenz tap

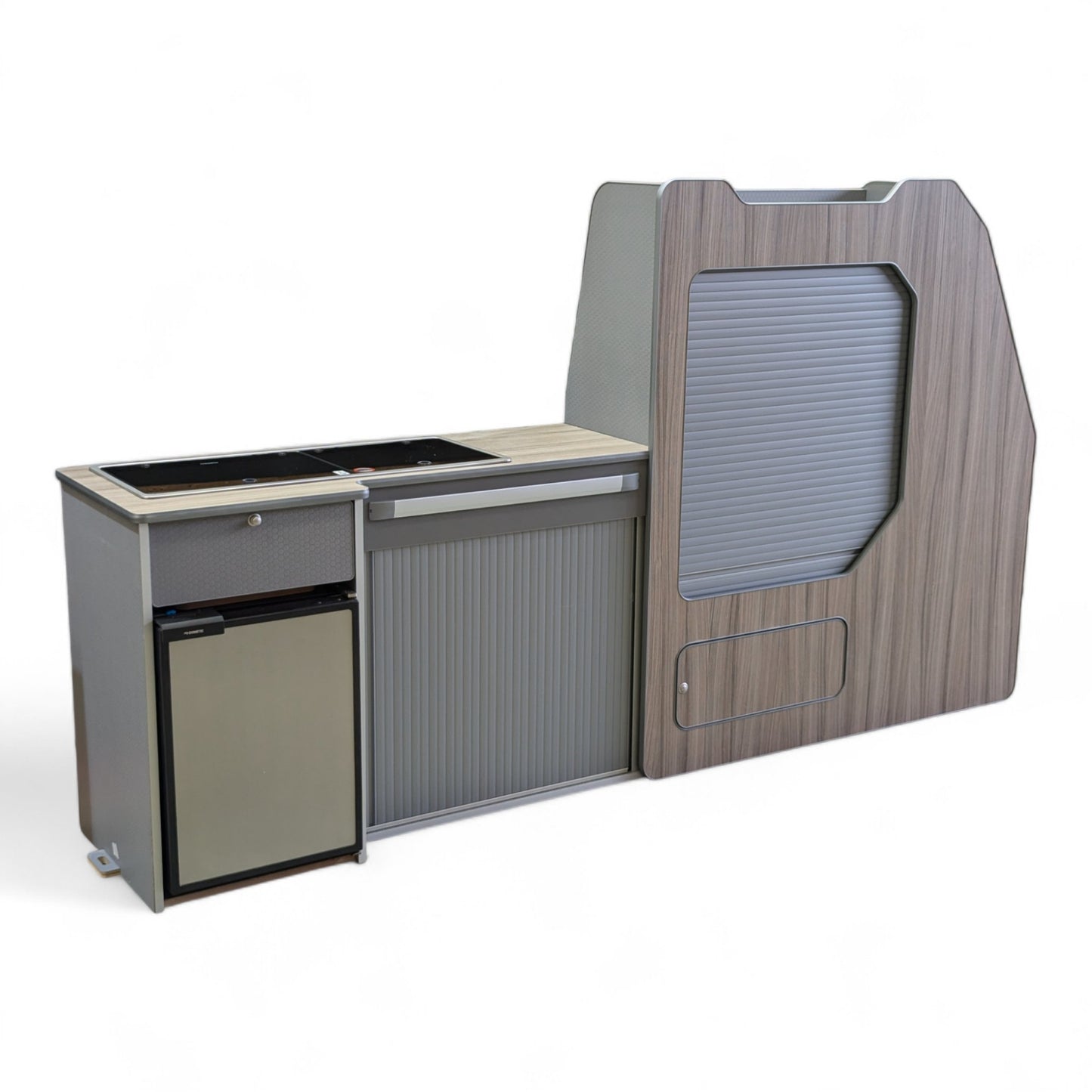

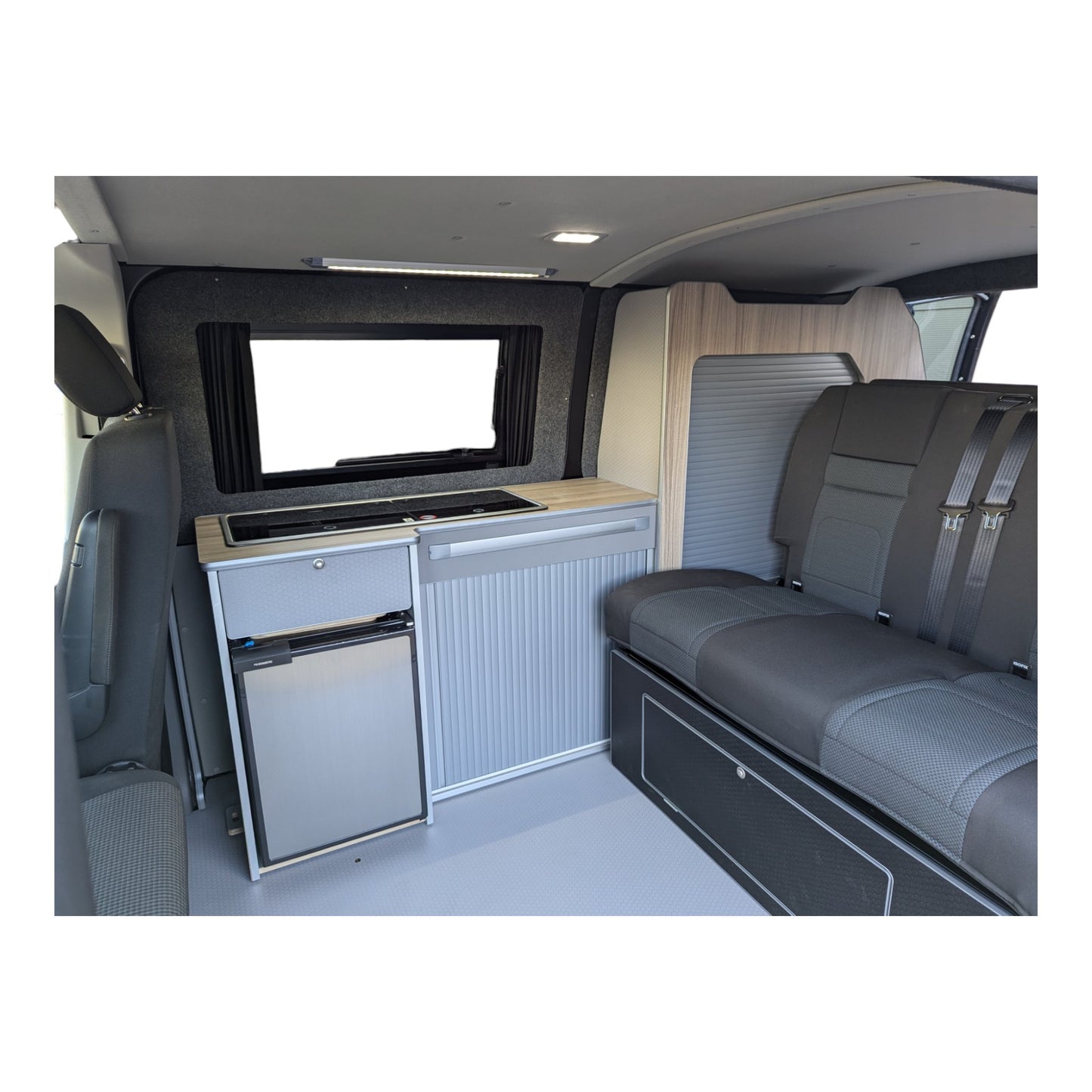

Can be swapped for an induction hob and sink
Ignition and flame safety cut out
Floor mounted fixing slots for VW Transporter load eyes
Fitment to sliding seat rail systems with our optional Vangear anchor cleat (i.e. VW Caravelle/California, Mercedes, Citroen)
10L water bottles with auto feeding pump supplying tap

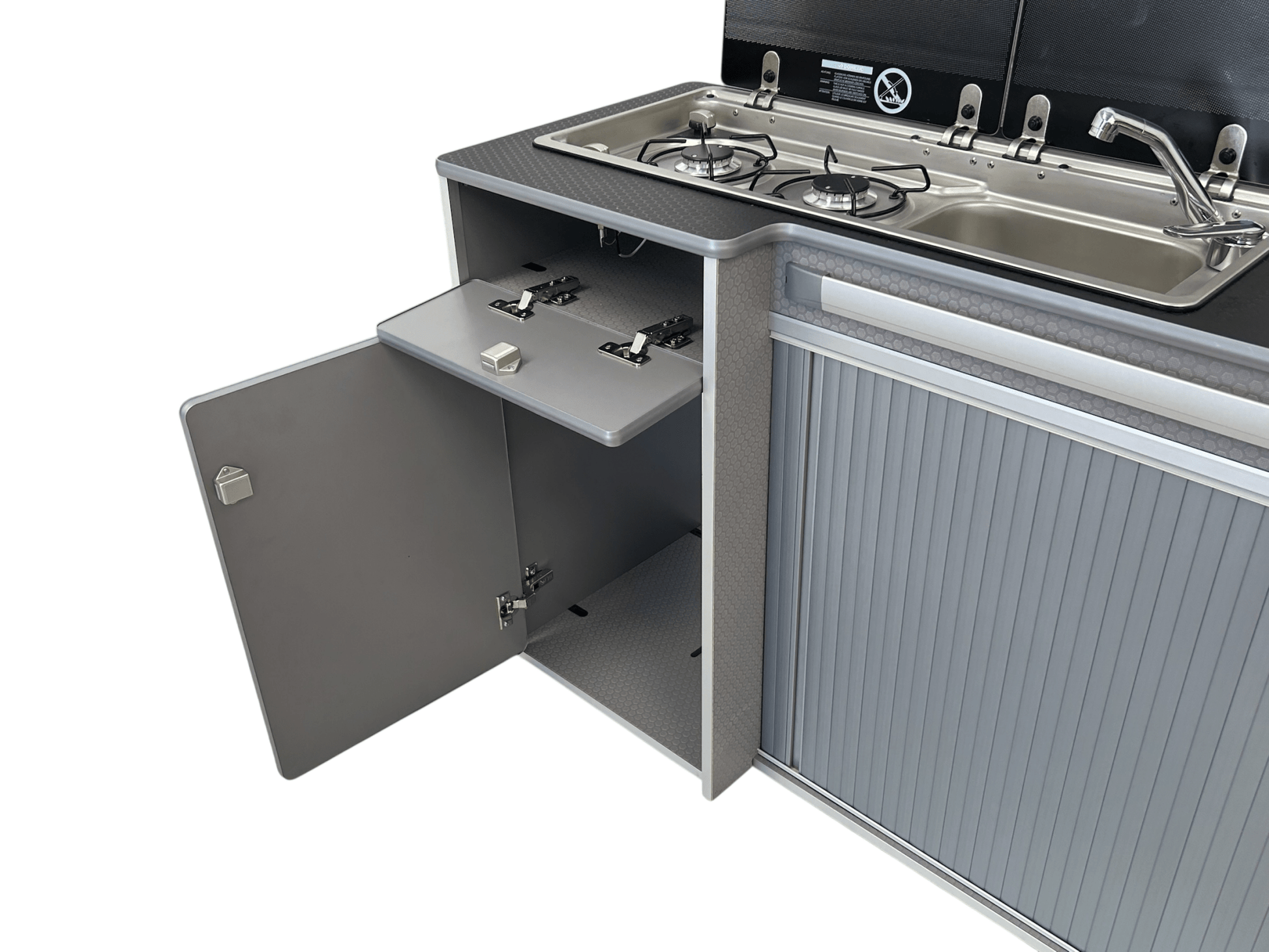

Gas bottle tray for Campingaz bottle R904 or R907 (not supplied), bottle belts and gas regulator

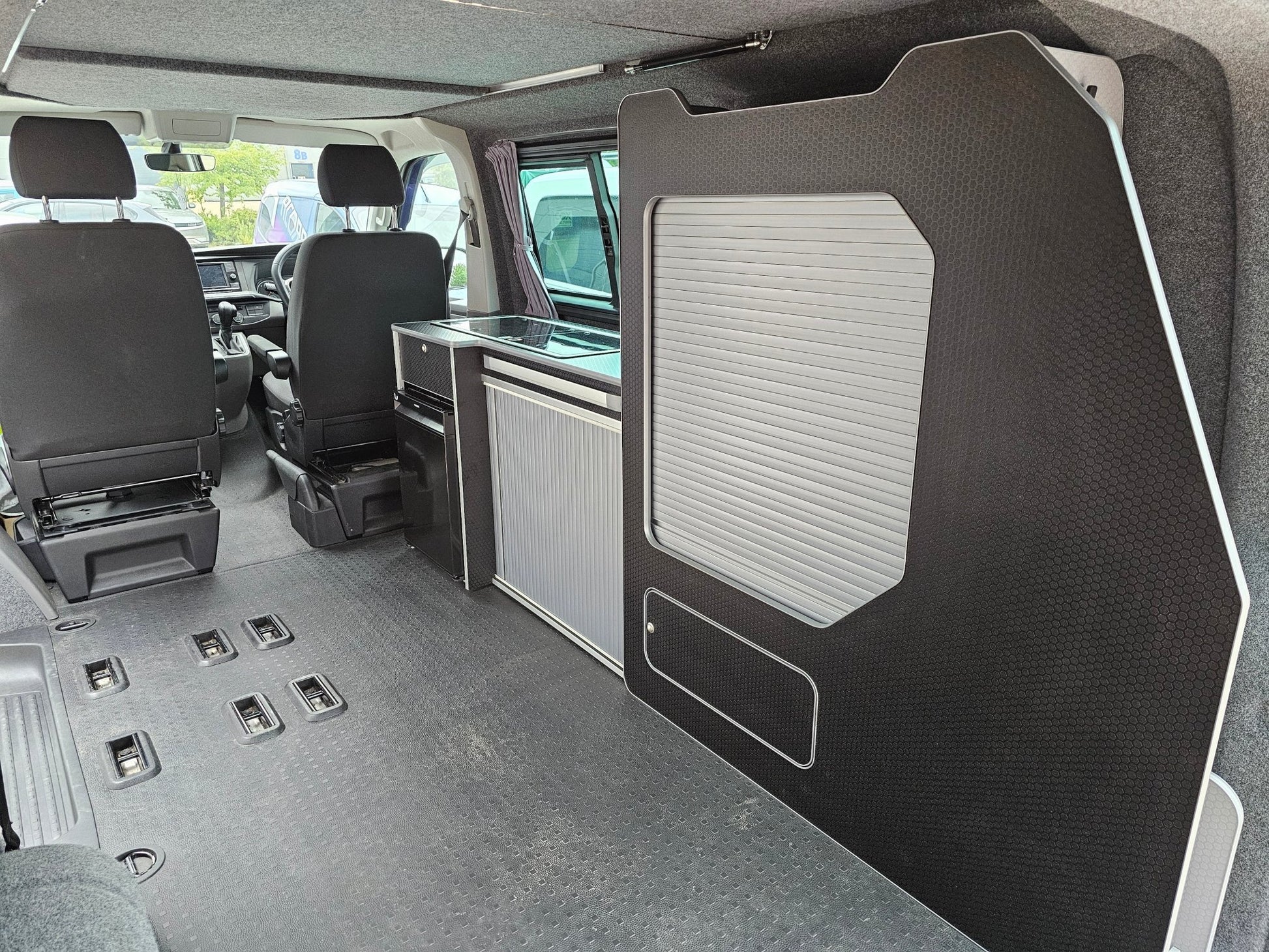

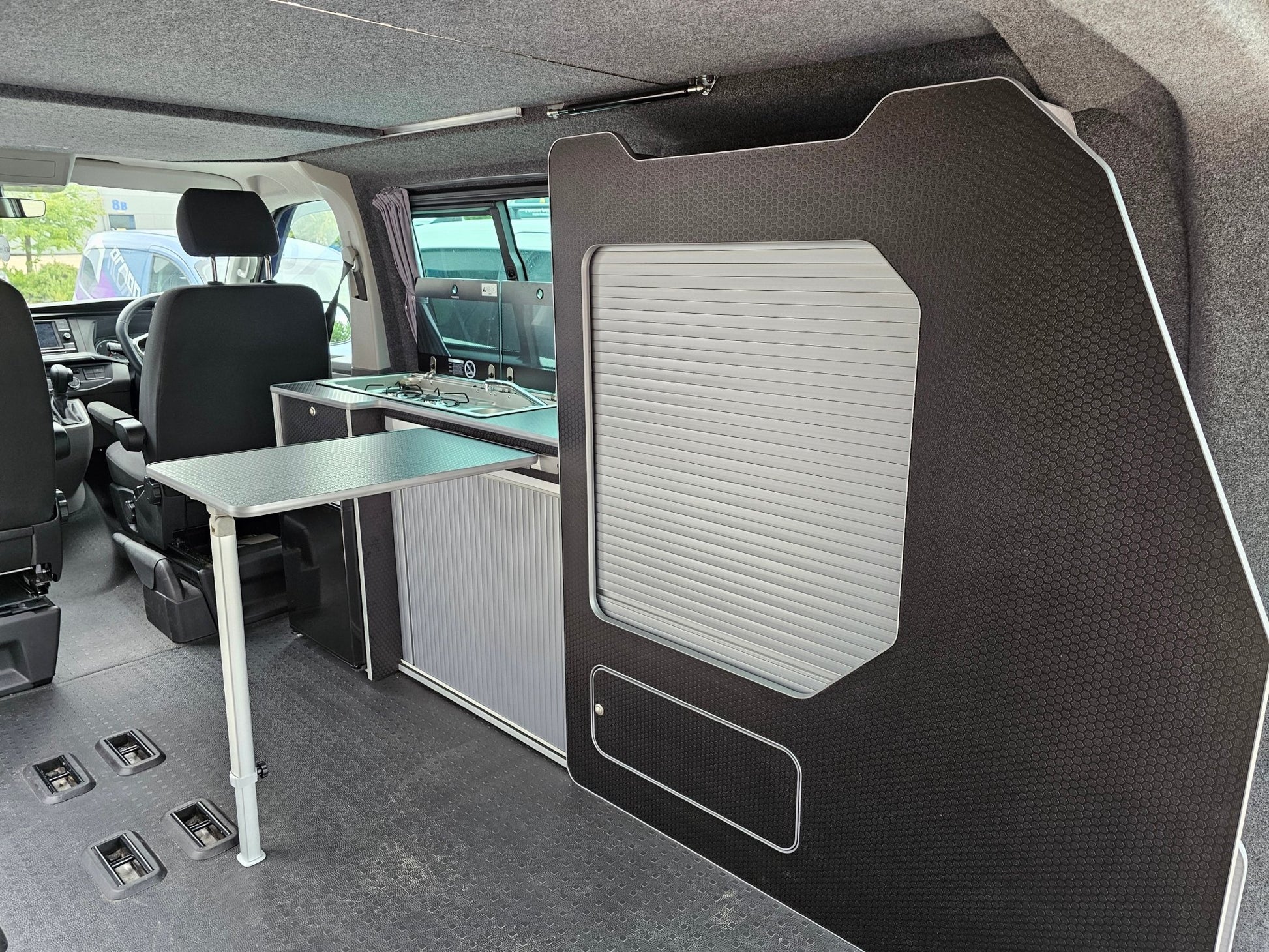

Rear-Pod
Fully assembled and ready to fit
Bolts to the front unit and then the whole system is bolted down
Large tambour door with storage behind

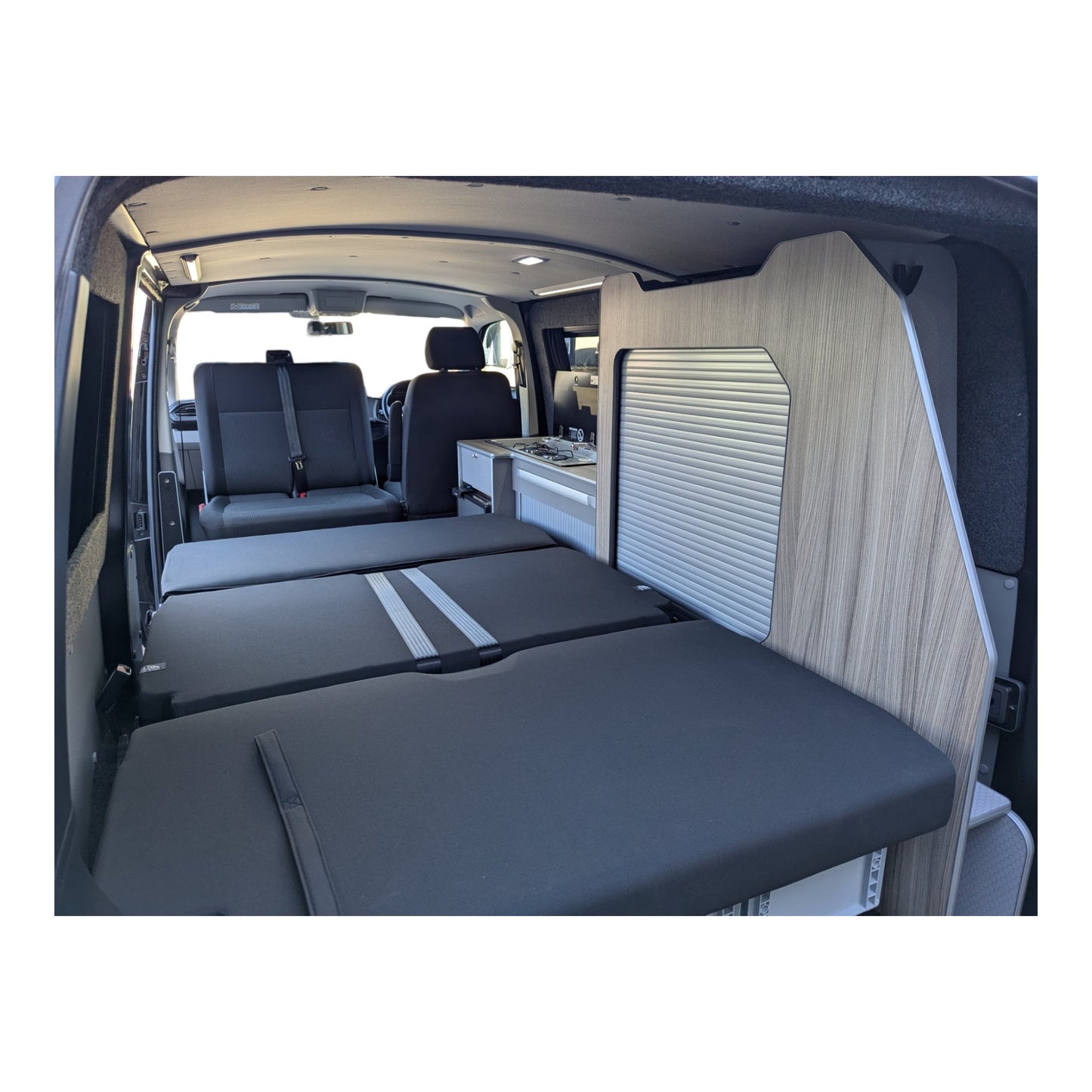

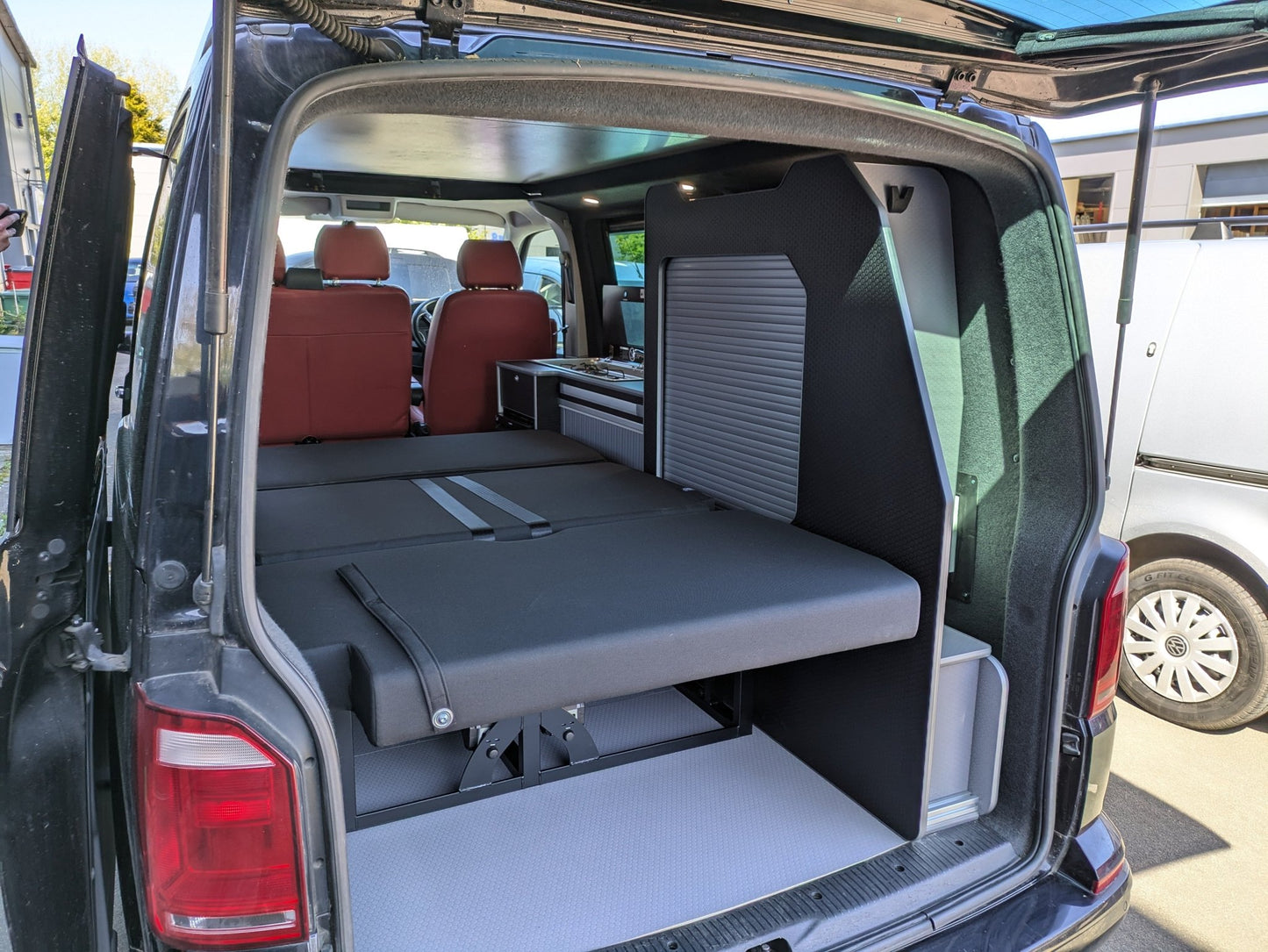

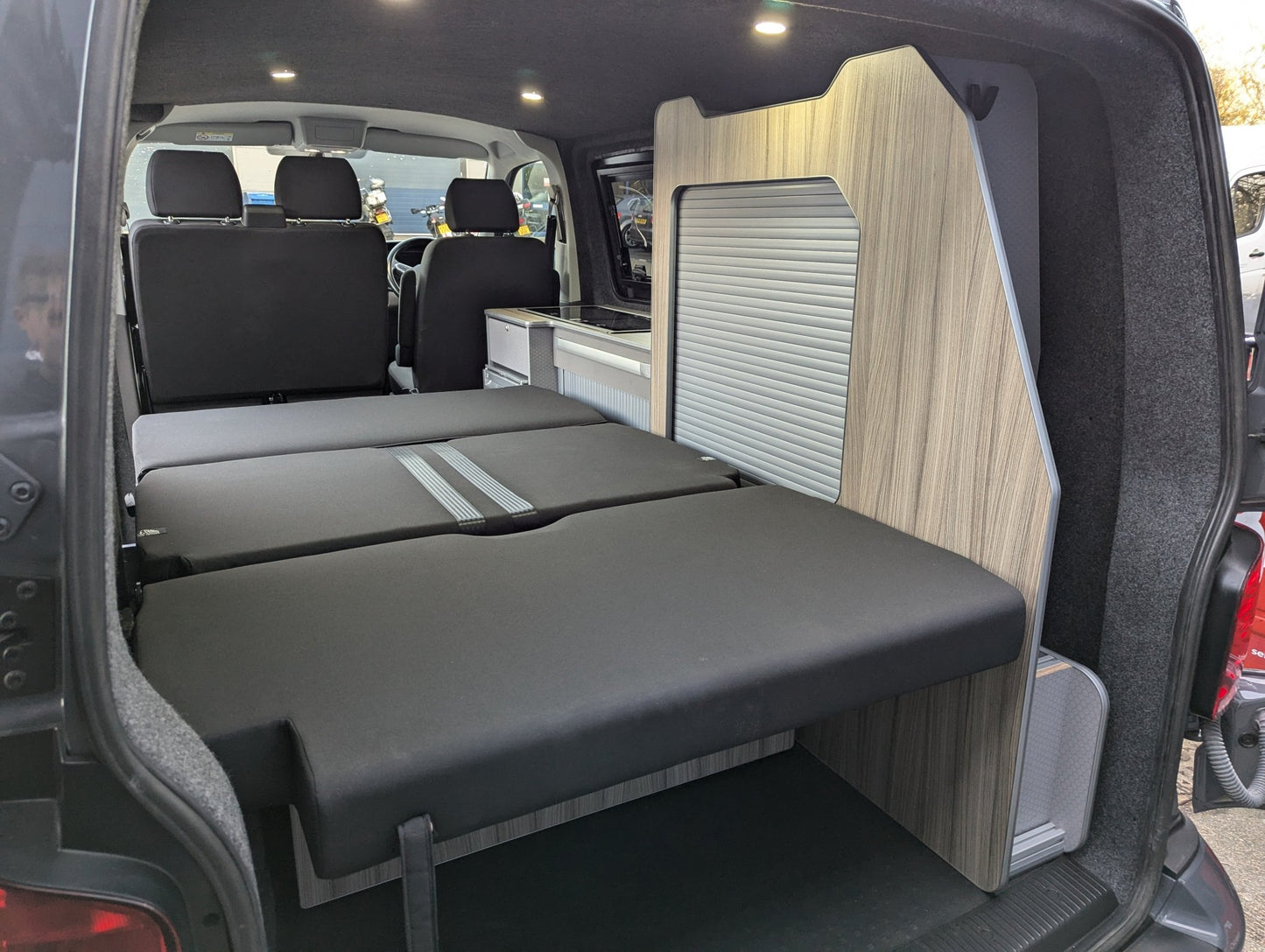

Fit with a 3/4 rock & roll bed i.e. the RIB 112 (1120mm wide)
Mounting eyes to attach the unit to the loading lugs in the Transporter
Rear coat hanging area/equipment area
Option for a 30L water tank stored in the rear unit
Materials and weights
Kitchen pod
Black hex - phenolic birch plywood
Grey or Driftwood camper ply
Rear Pod
Black hex - phenolic birch plywood (weight = 33kg)
