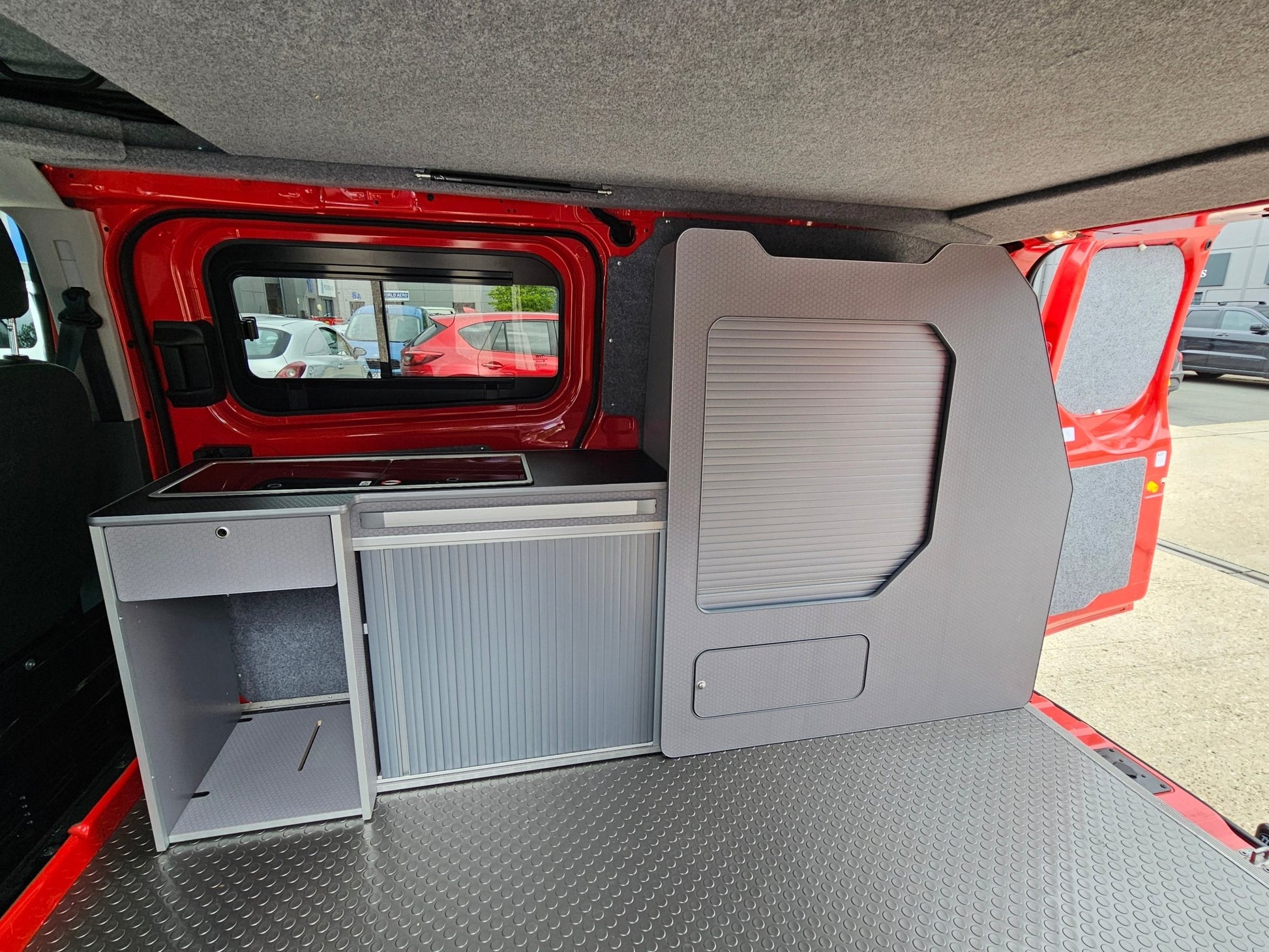

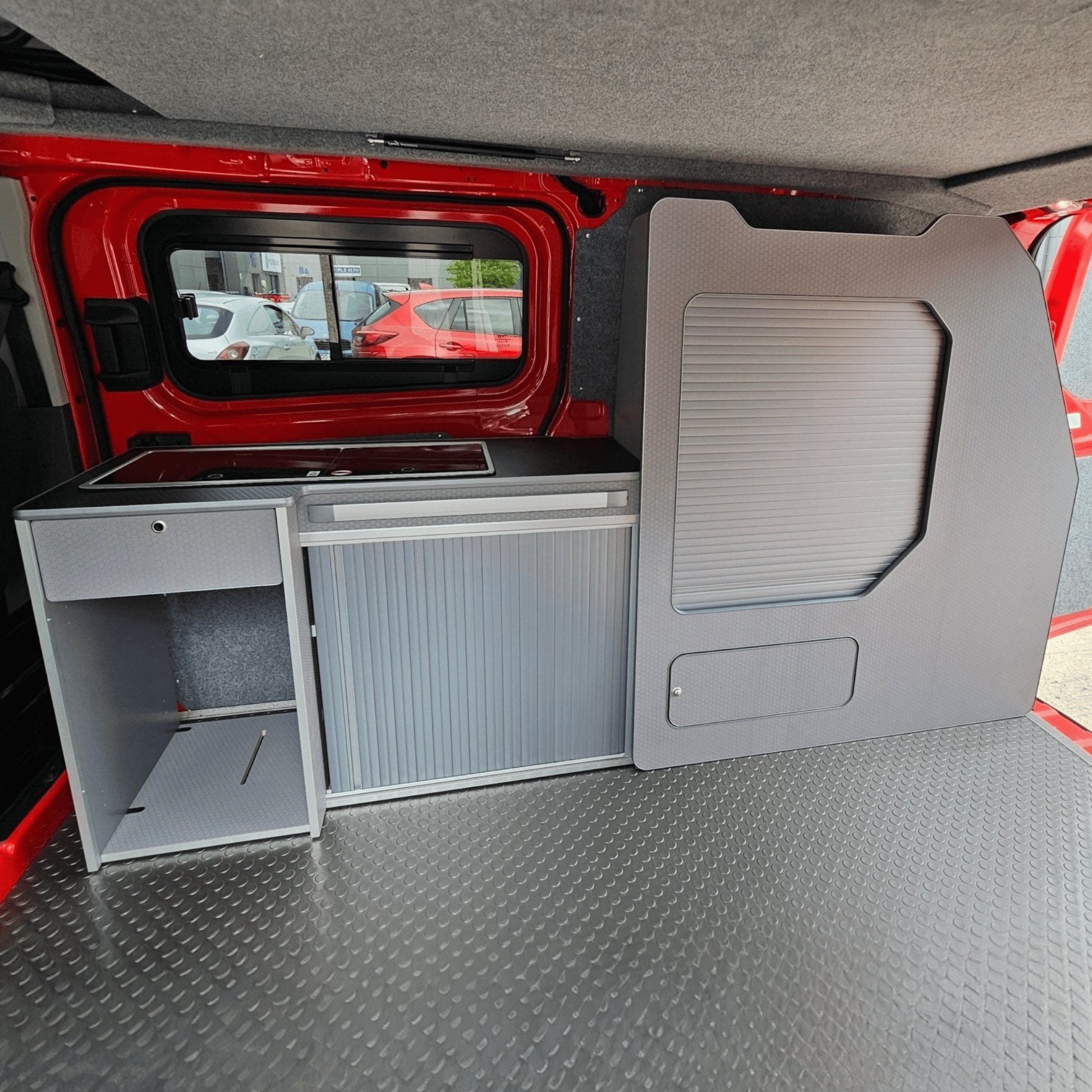

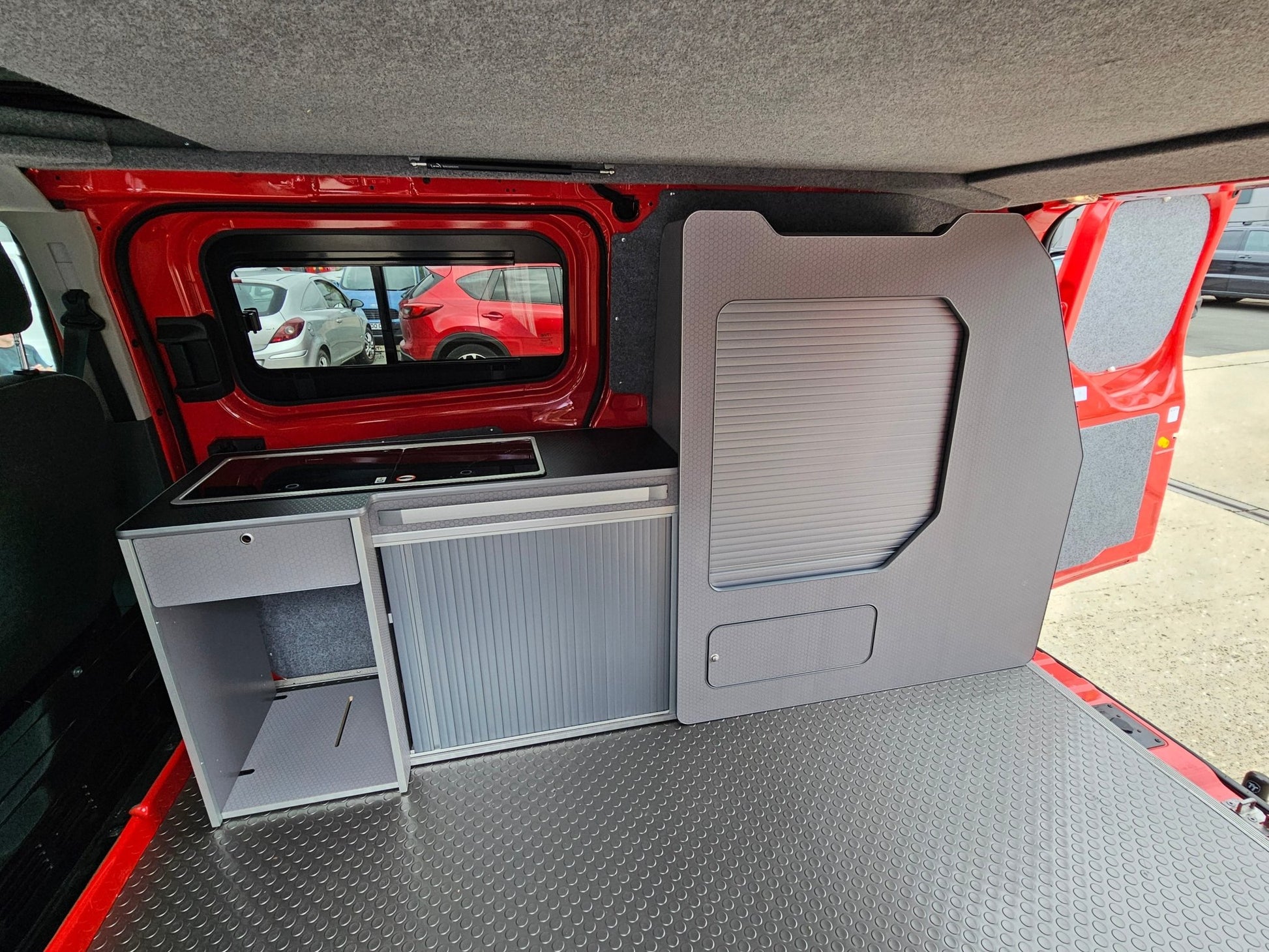

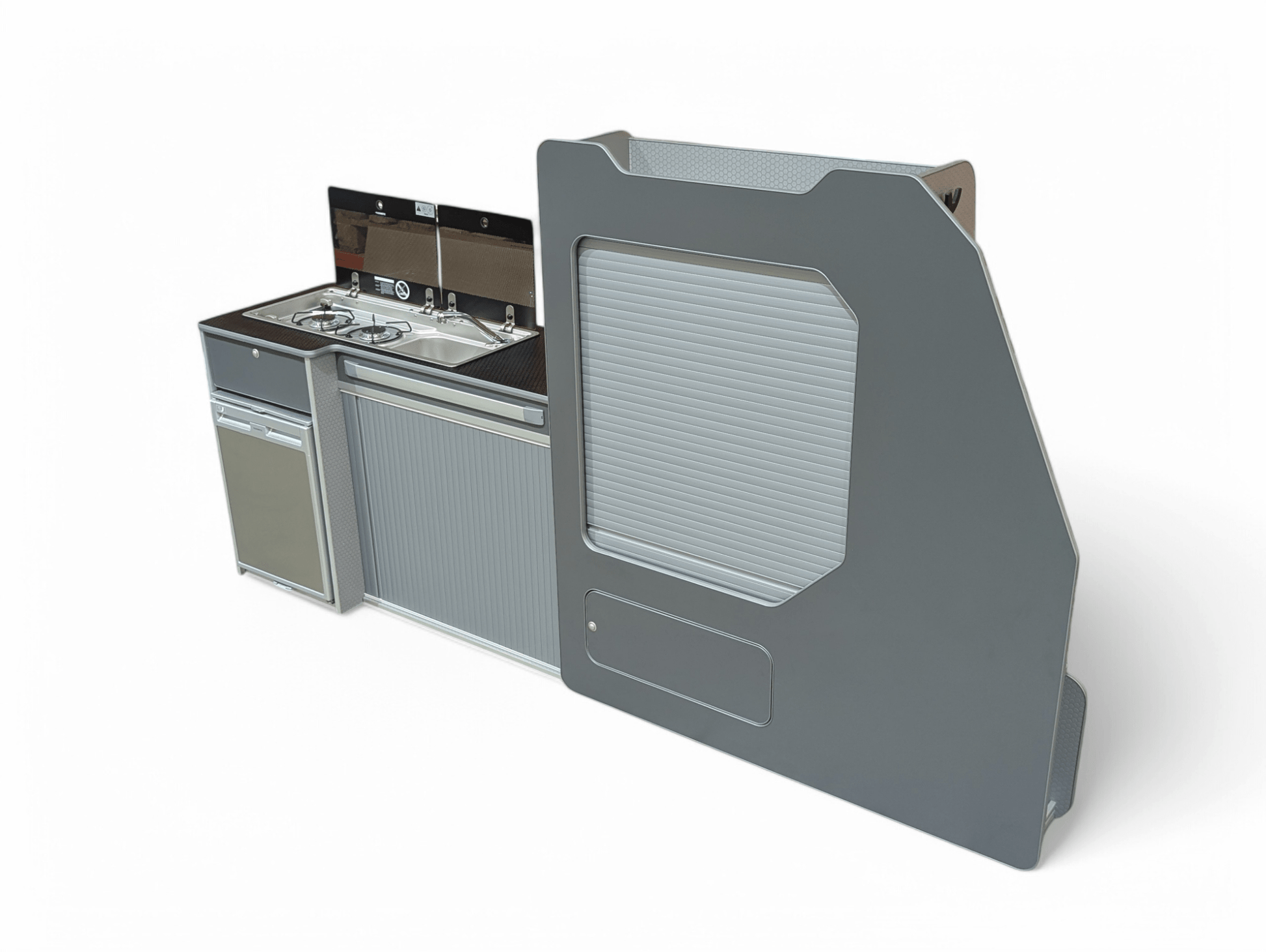

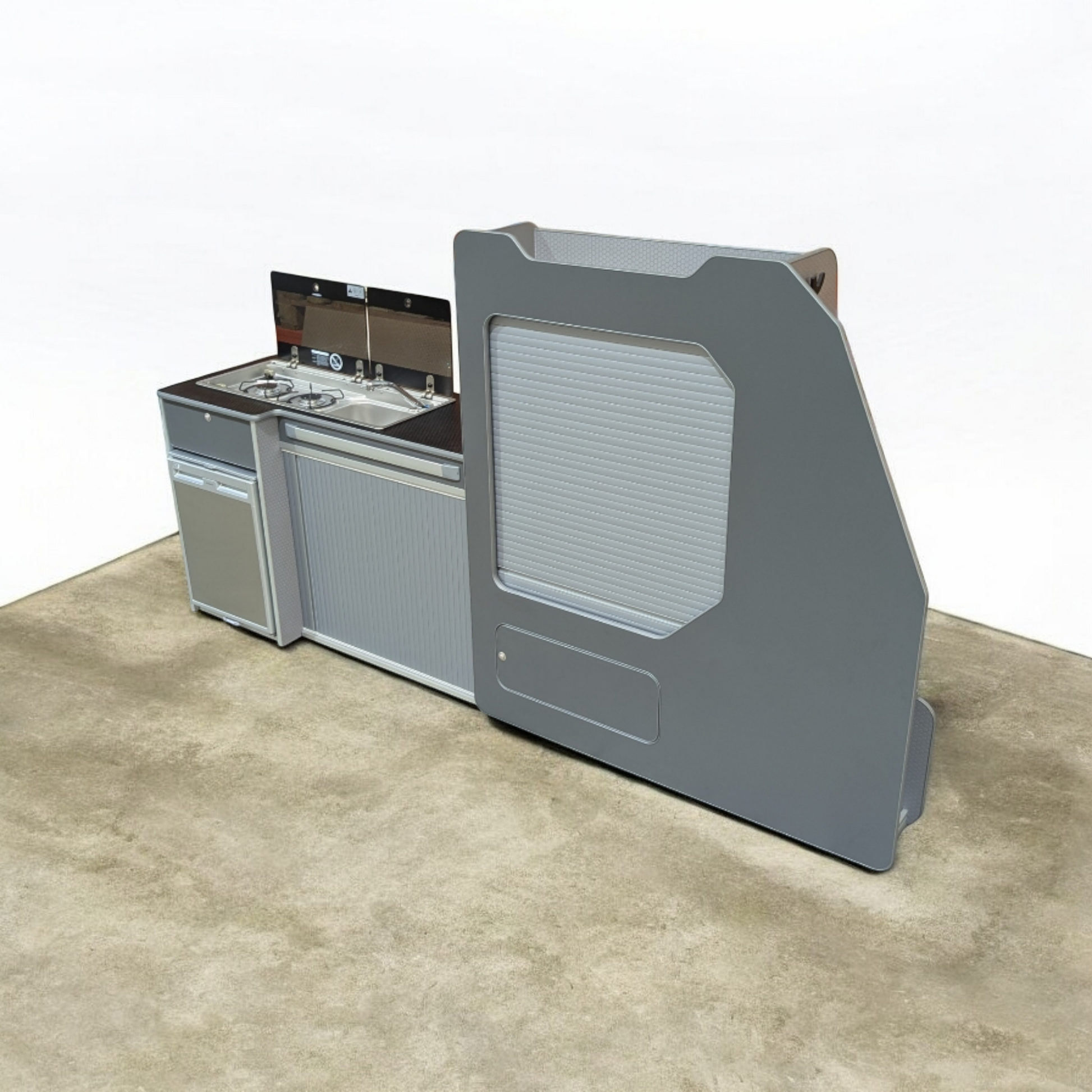

Ford Transit Custom-System 50L (Not including the fridge) (SWB L1)

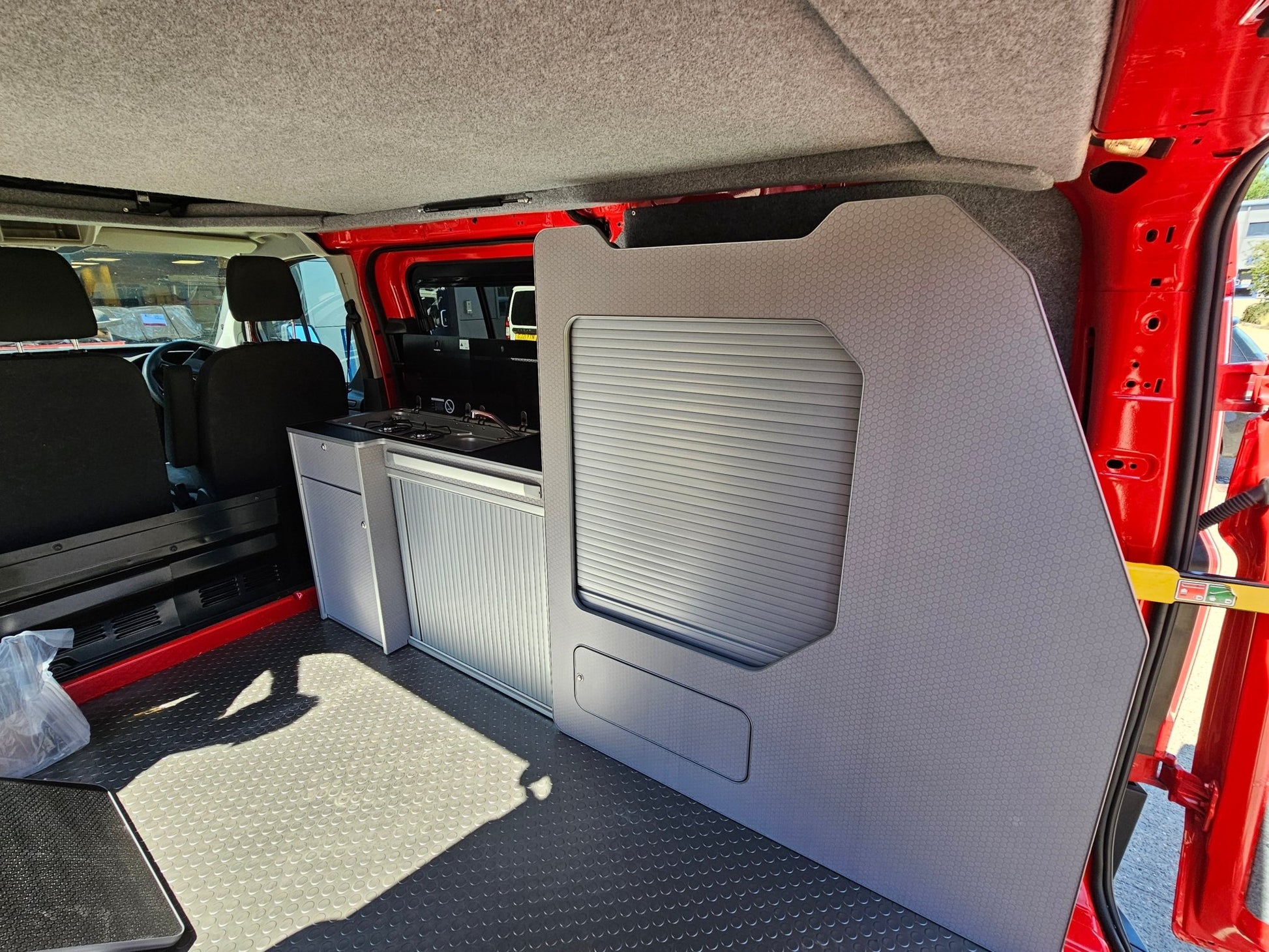

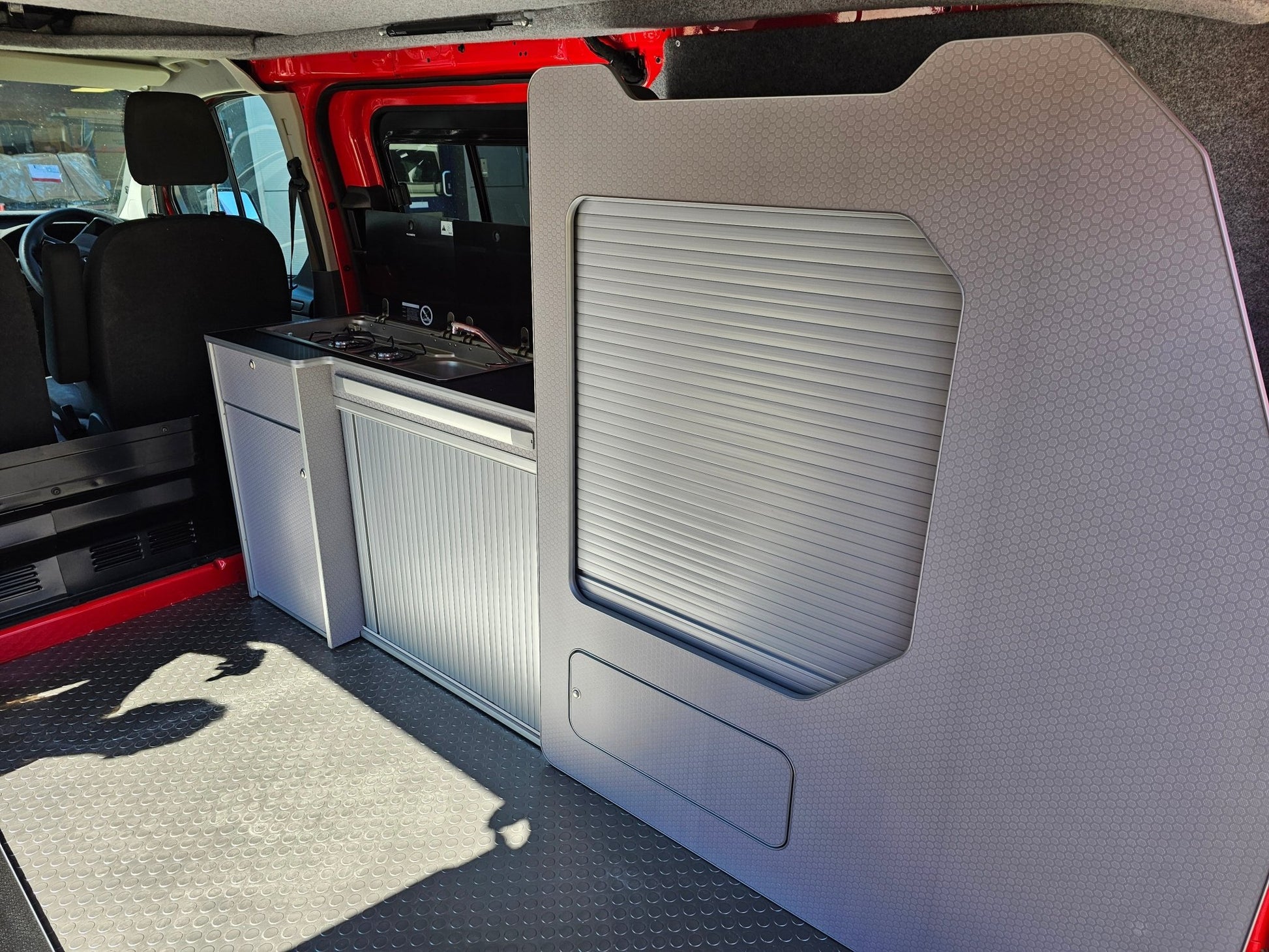

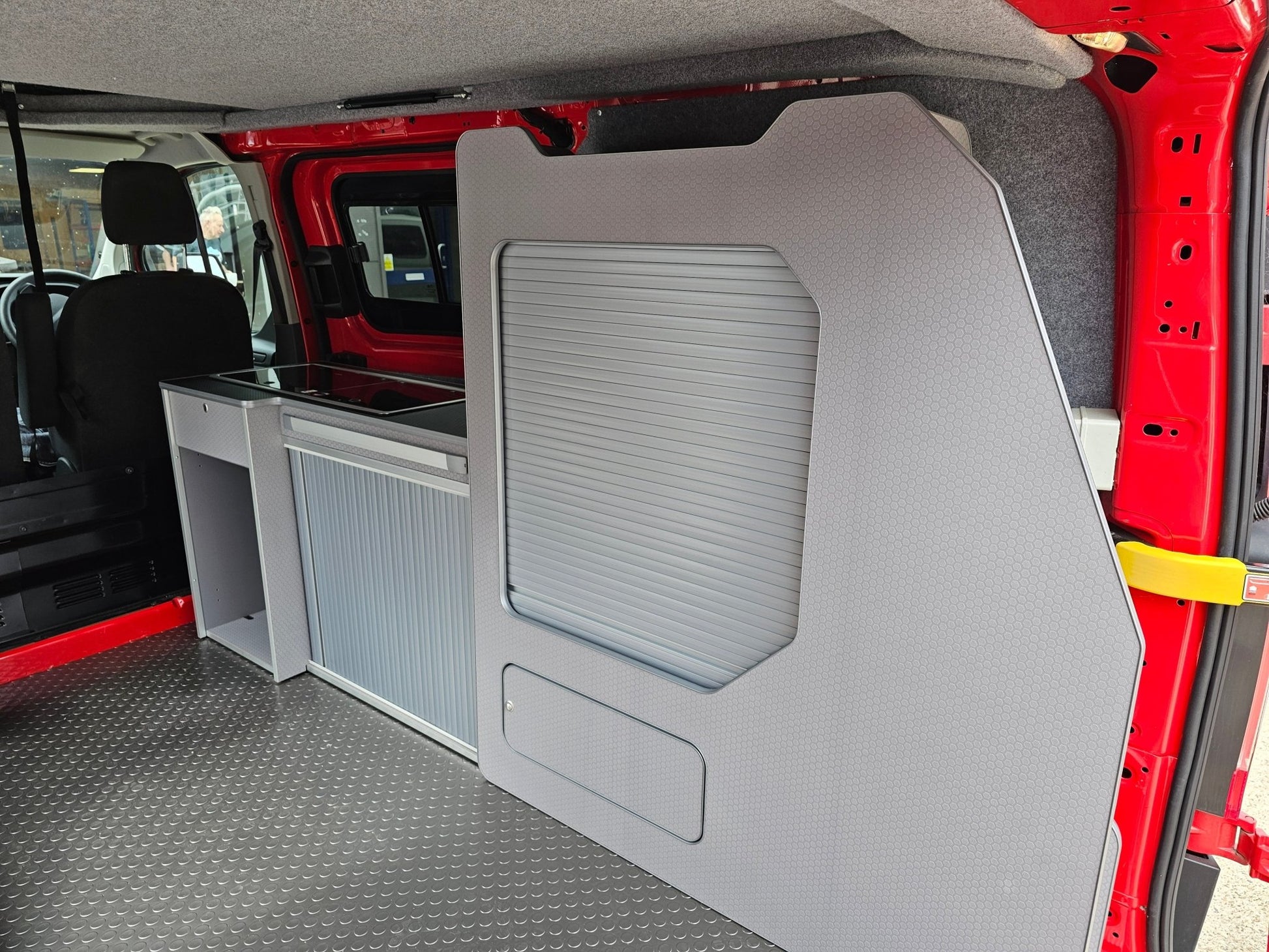

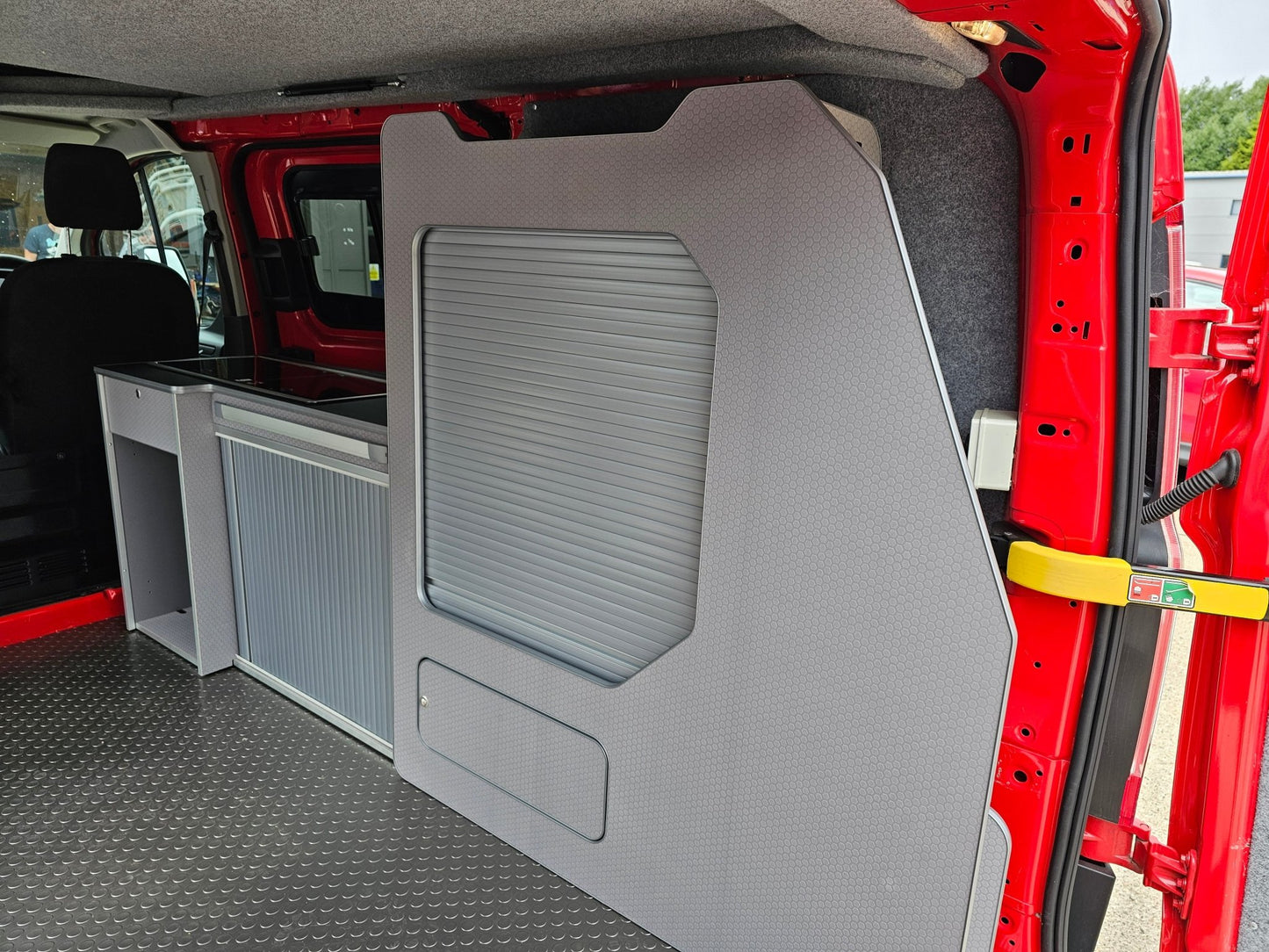

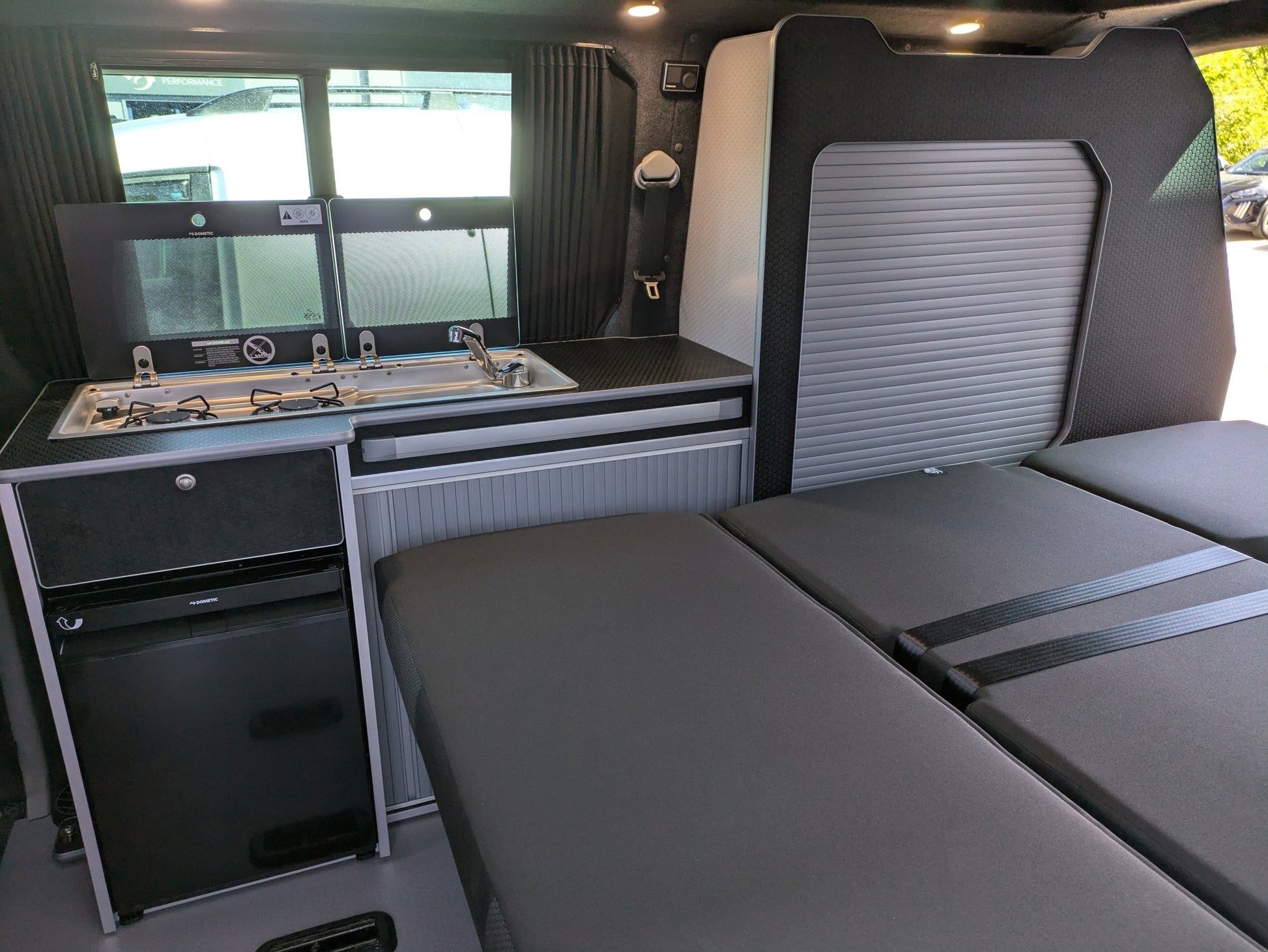

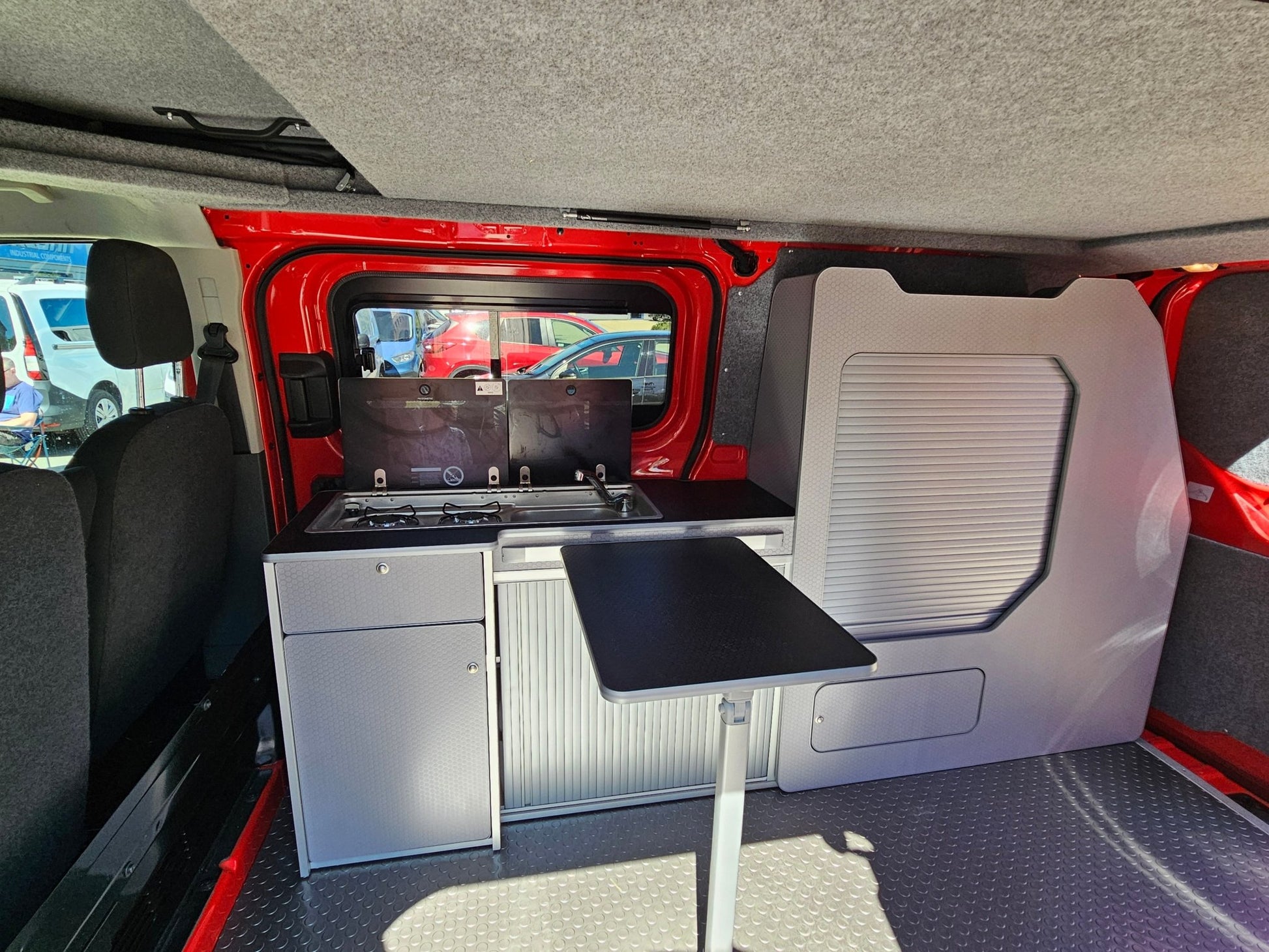

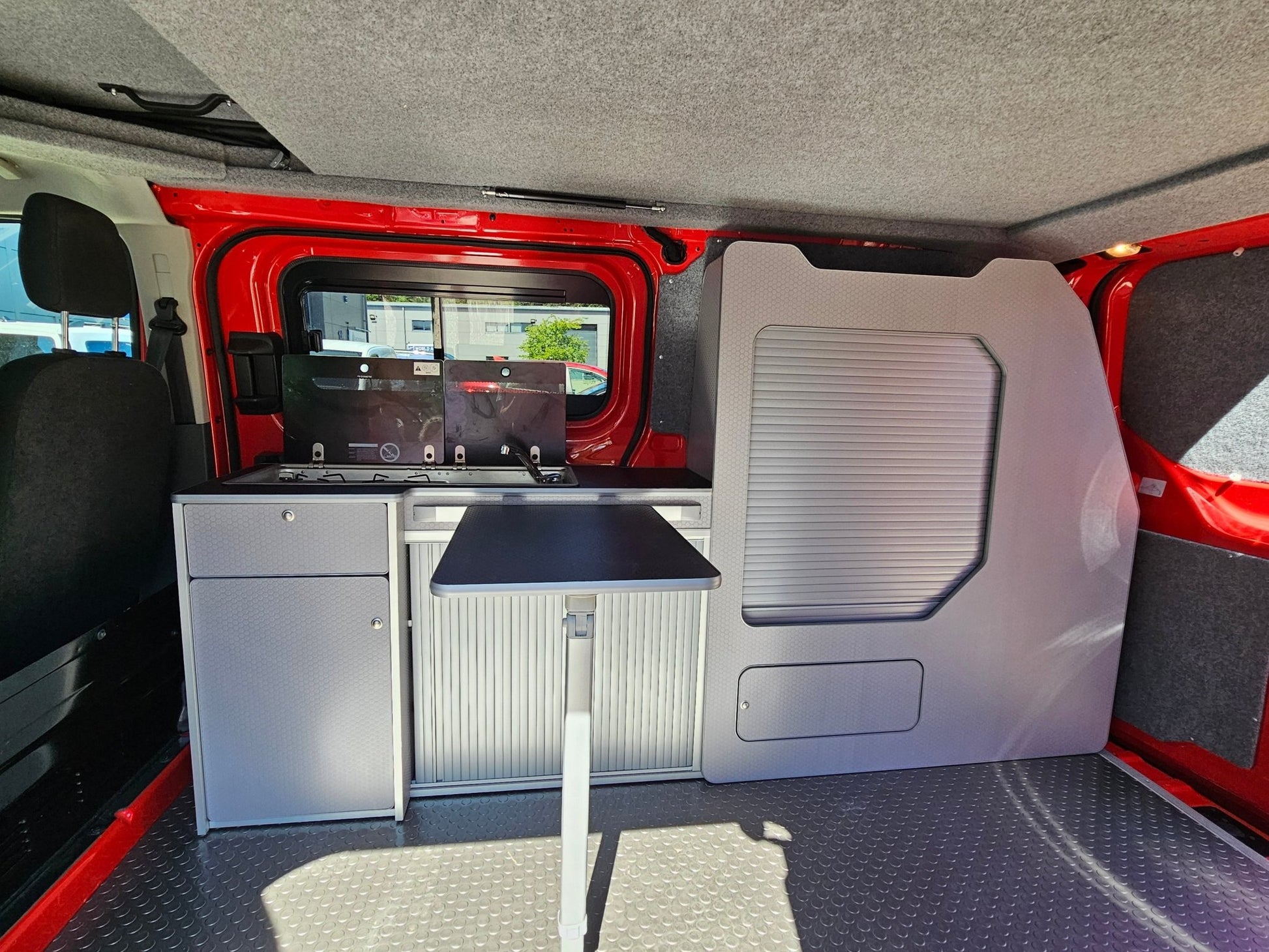

Ford Transit Custom (SWB)-System 50L - down the side of the van campervan furniture with space for a 50L fridge (NOT including fridge)

Fits the (gen 1 up to 2024 SWB L1) Ford Transit Custom

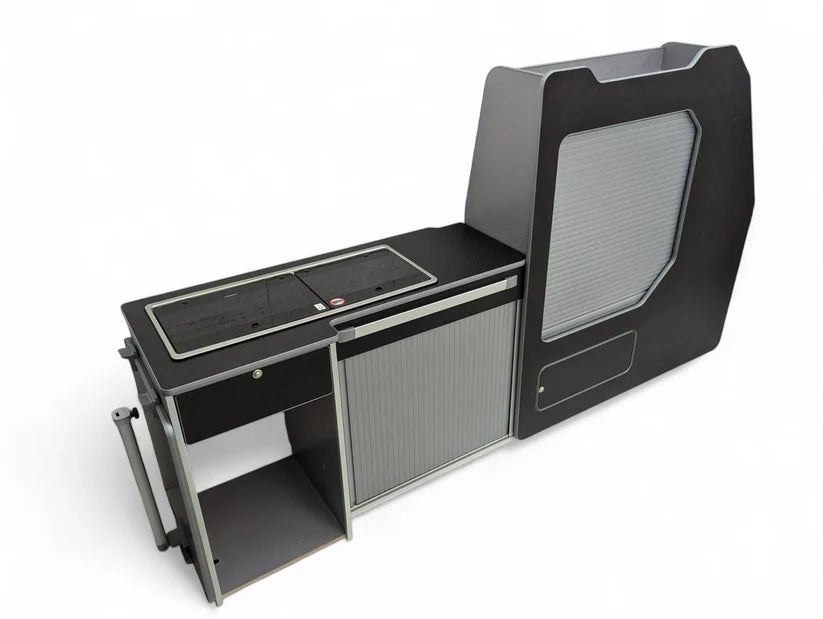

Team Vangear has designed this as a plug & play system!

• Innovative and practical design
• Fully assembled in two parts & includes Dometic 9722 hob/sink combination

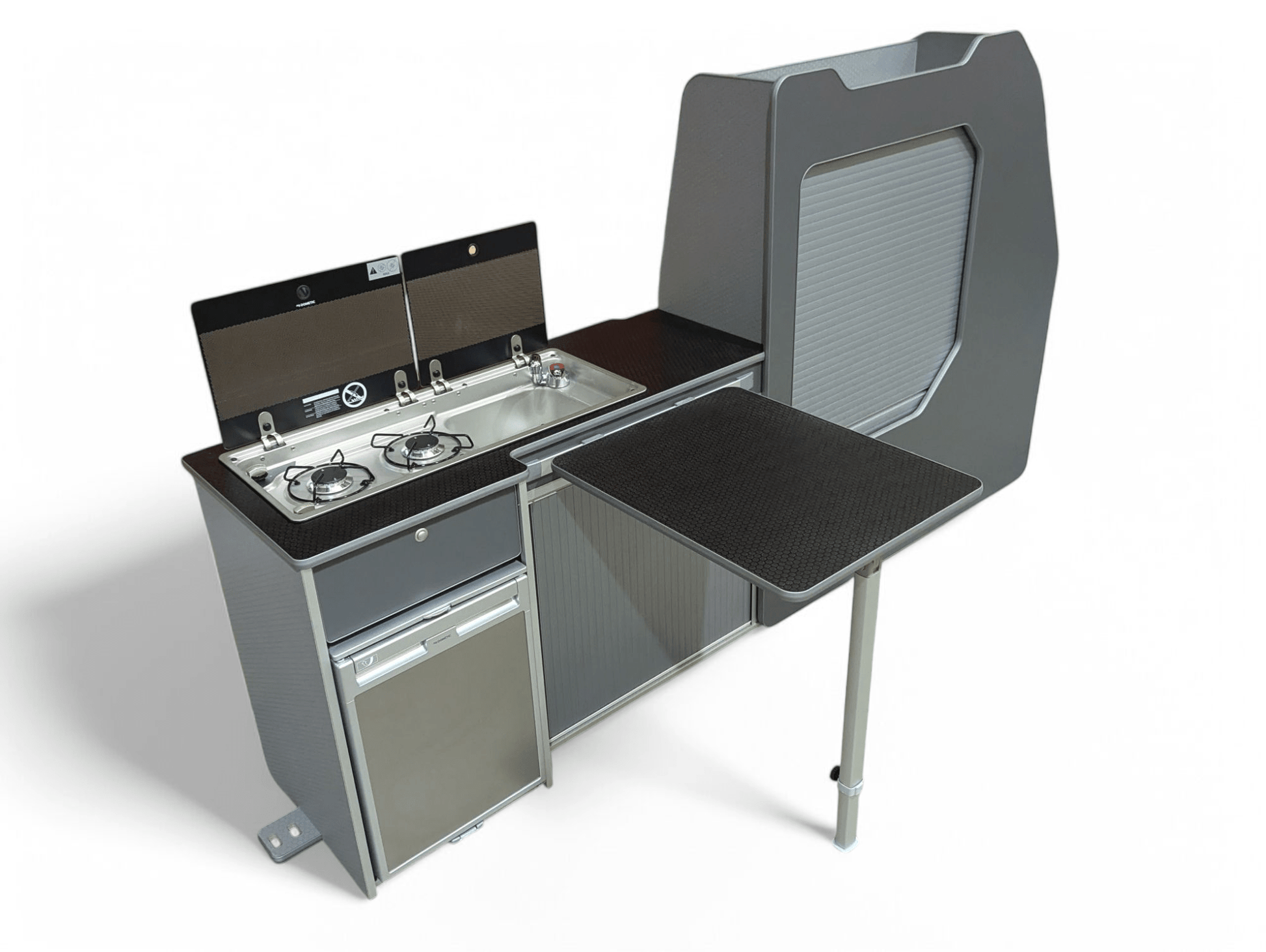

• a large table (490mm x 600mm) is included. There are storage clips on the left side of the unit for storing this.

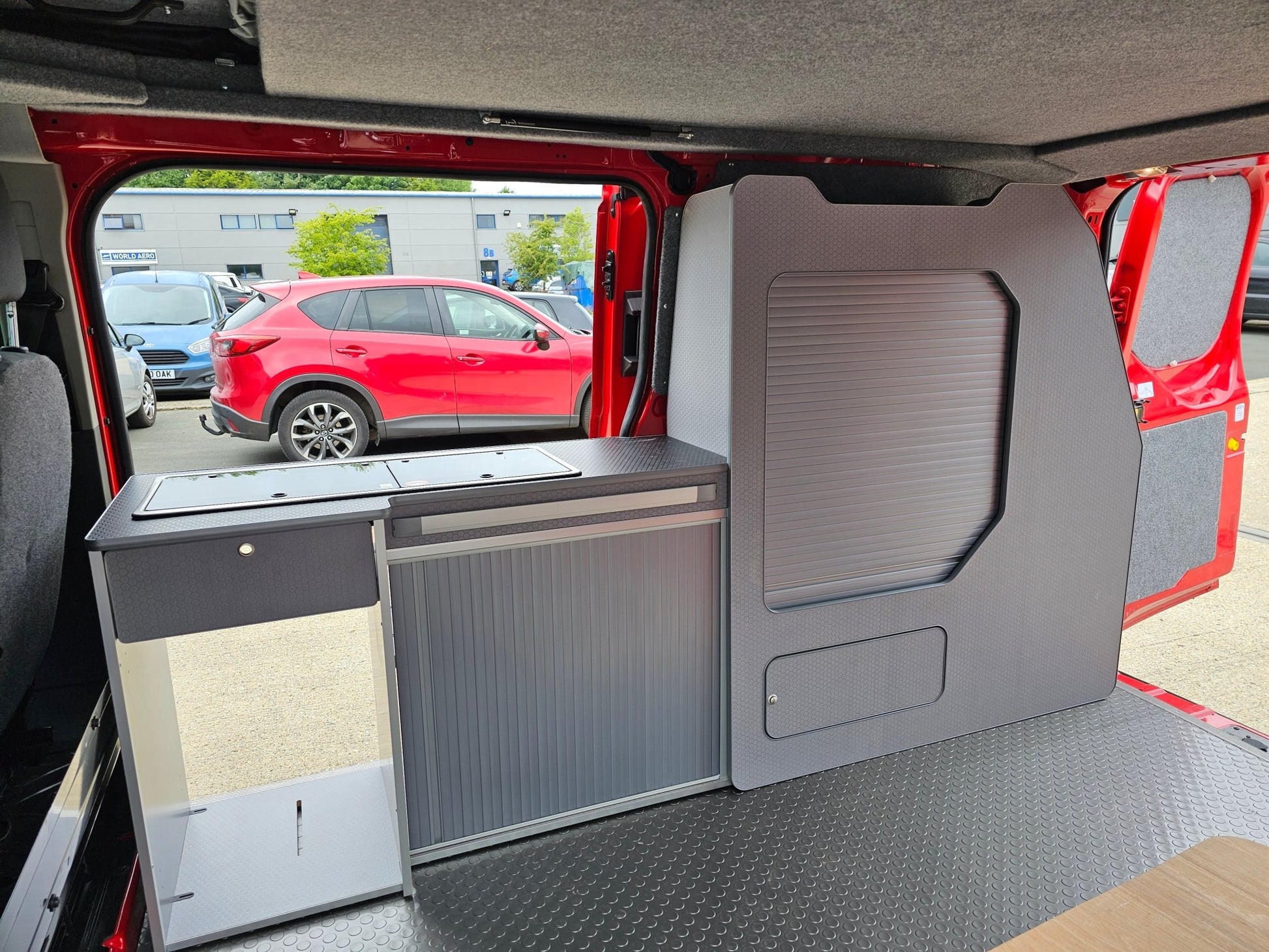

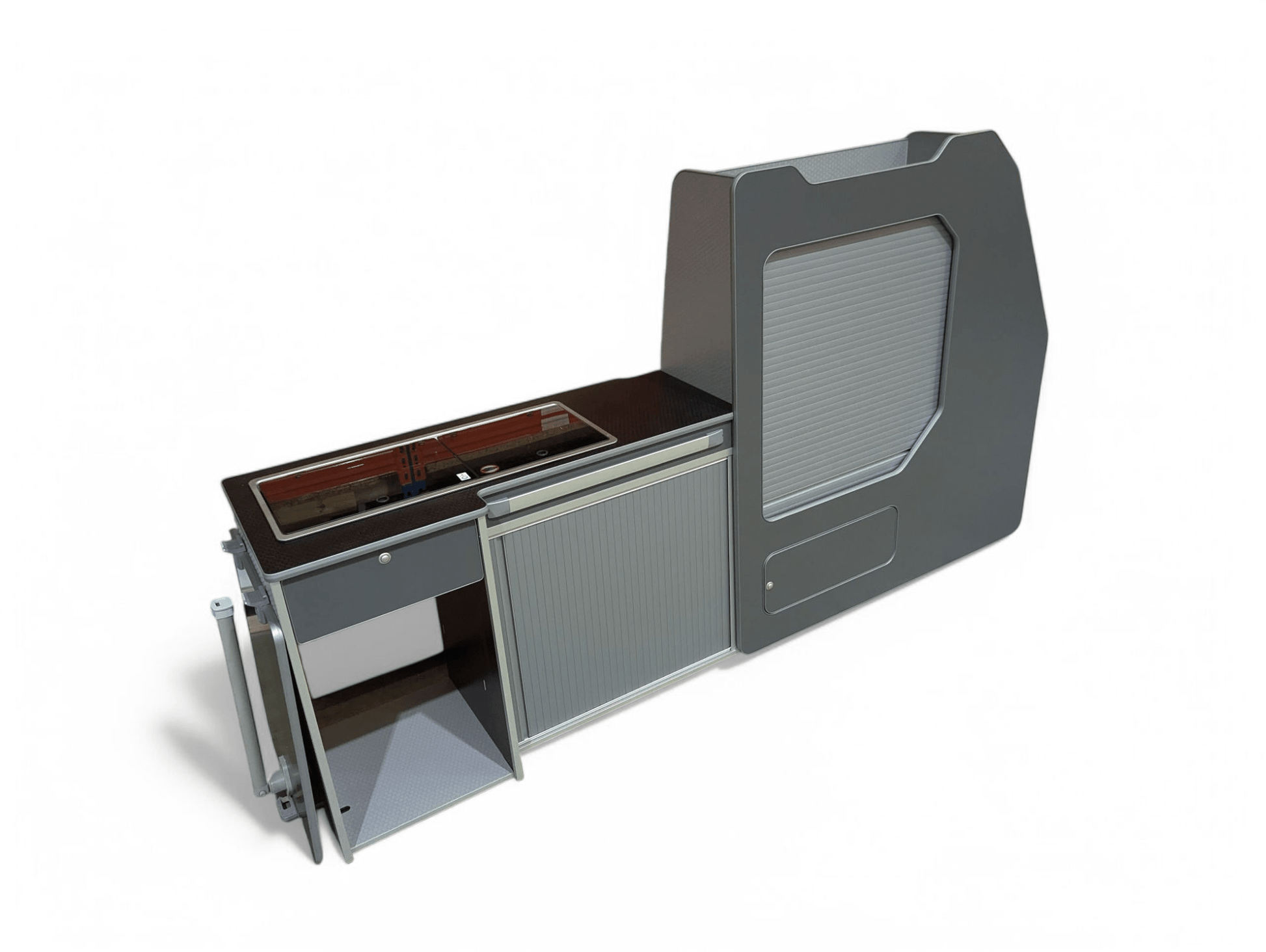

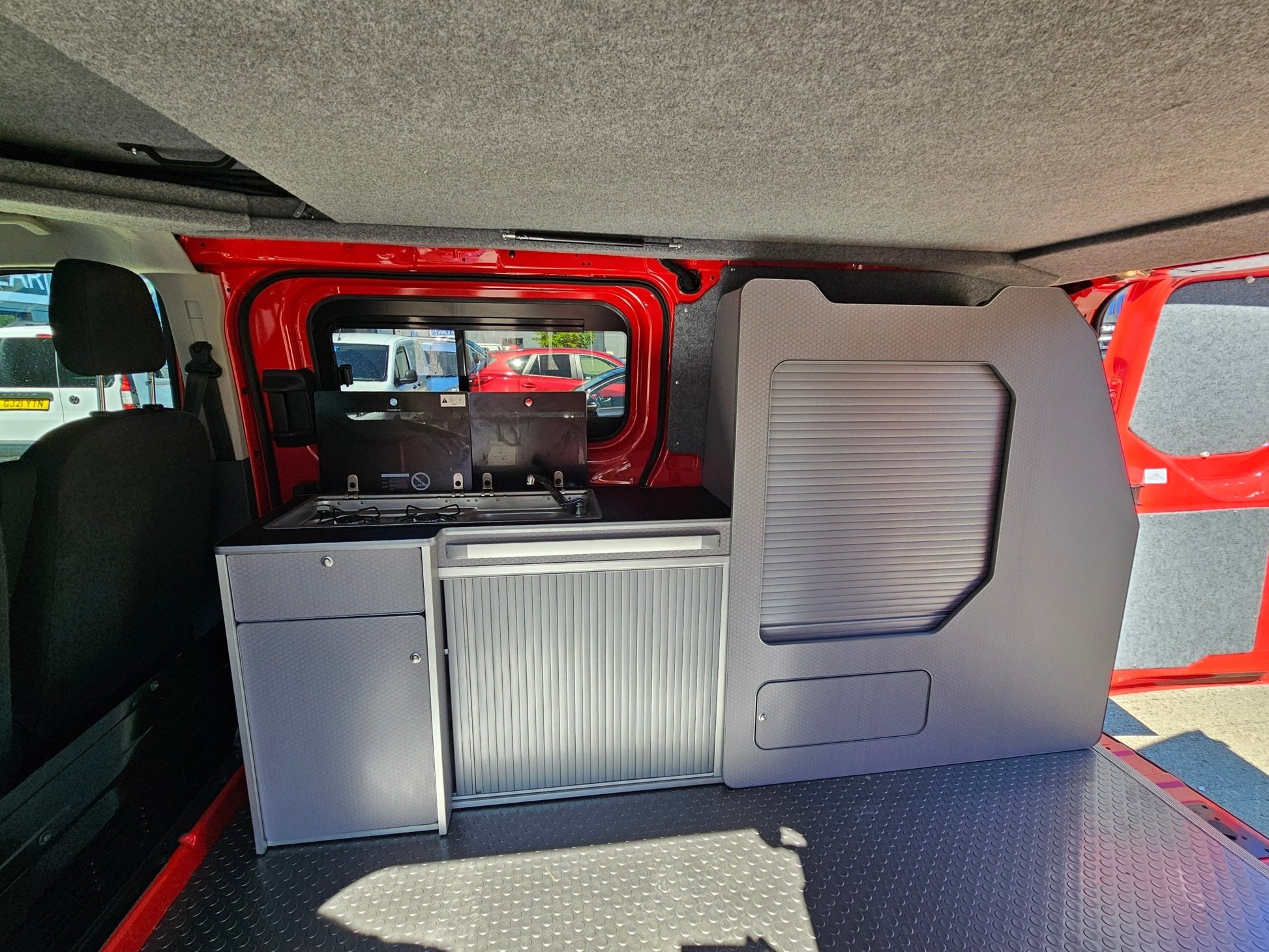

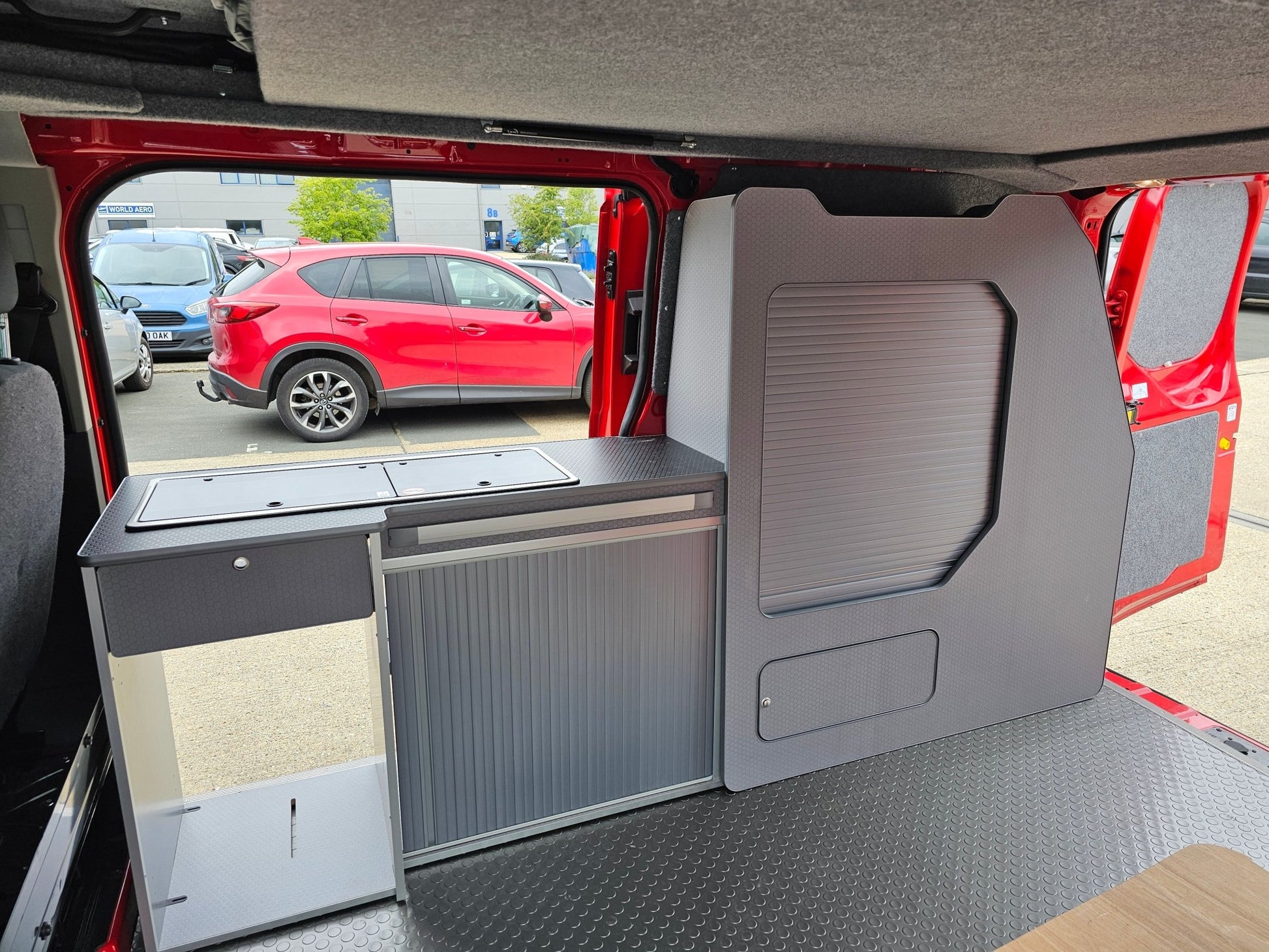

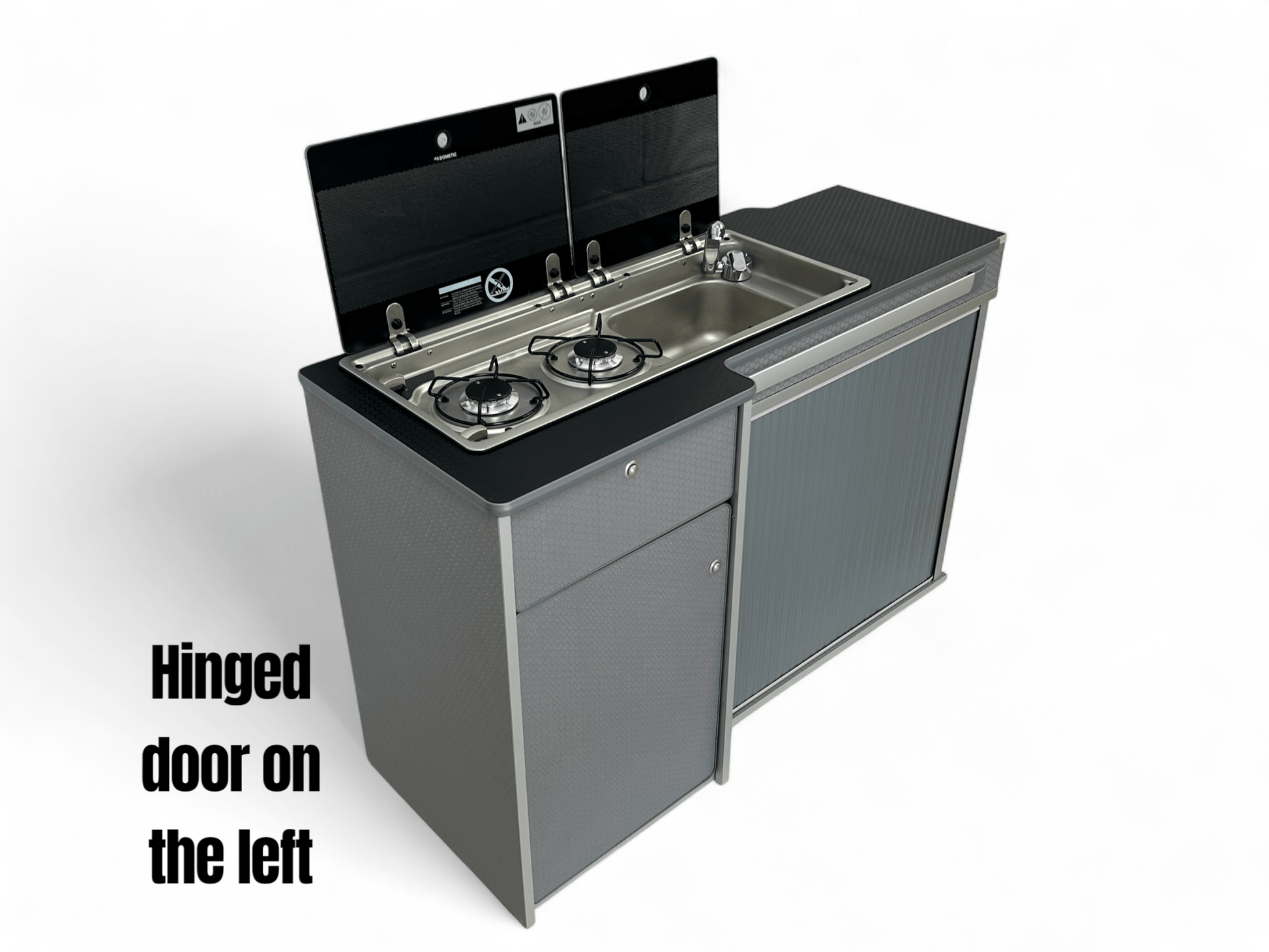

• There is an option for space for a fridge on the left (fridge not included) or a hinged door (+£50)

Lead time = 3 weeks

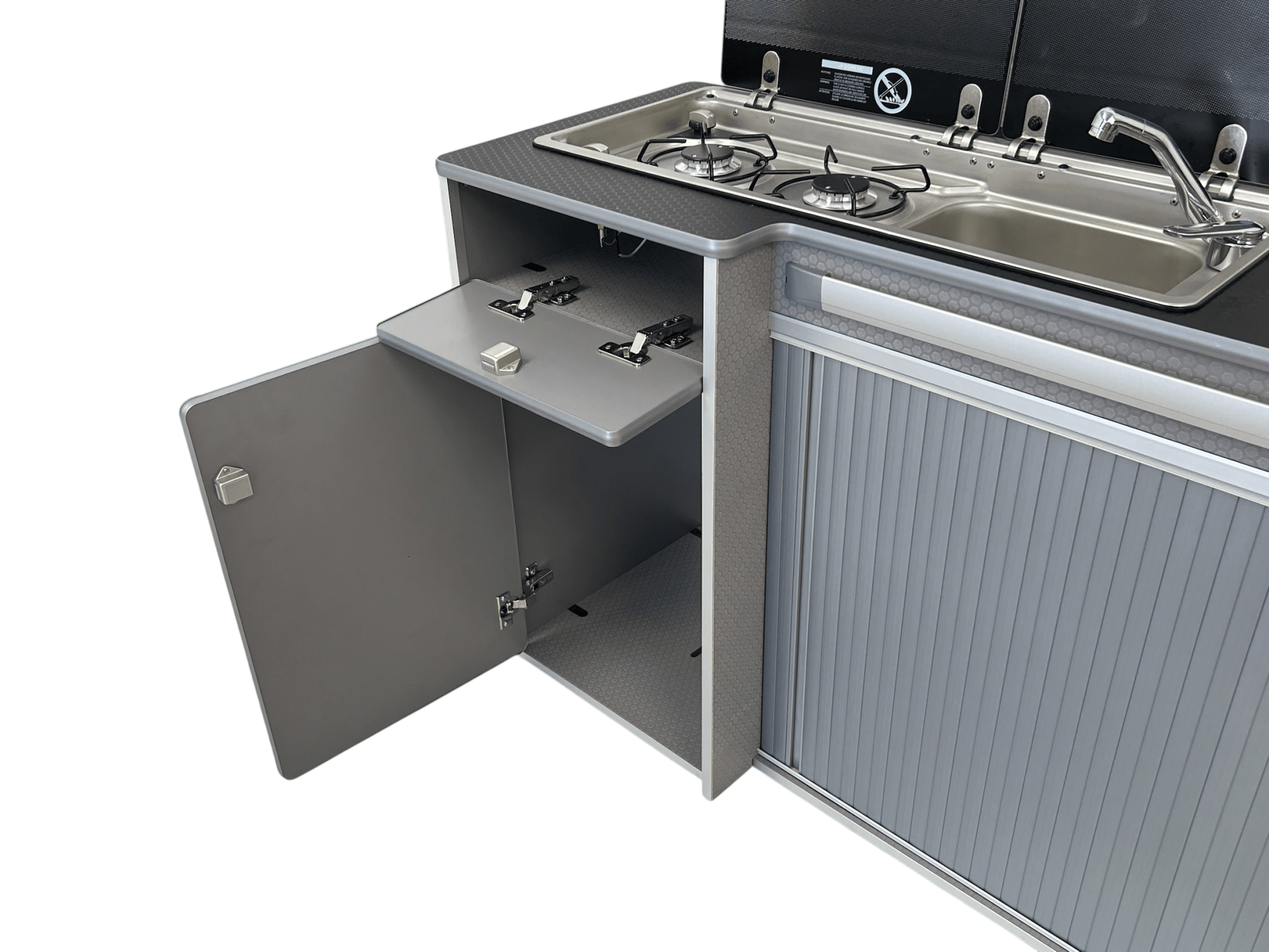

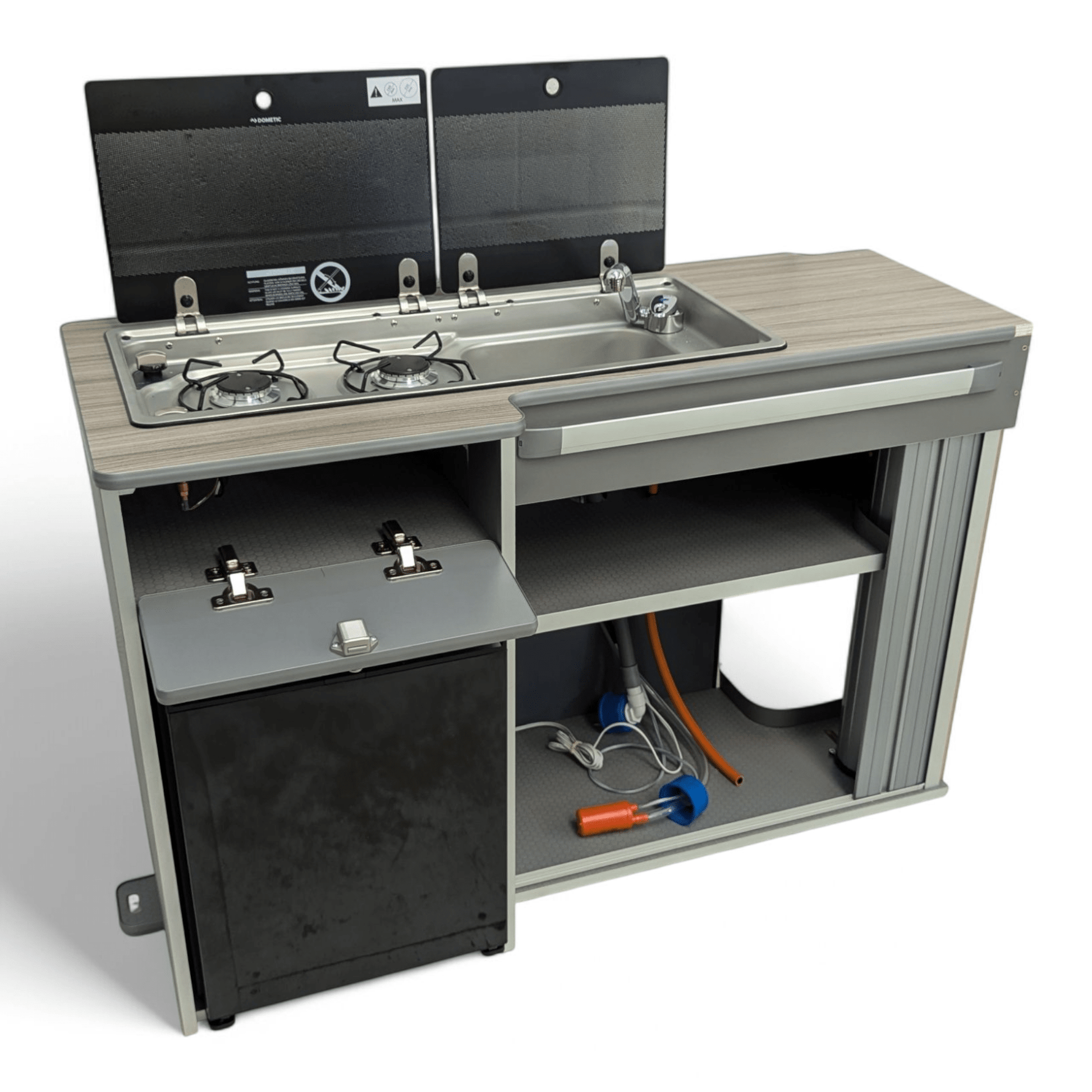

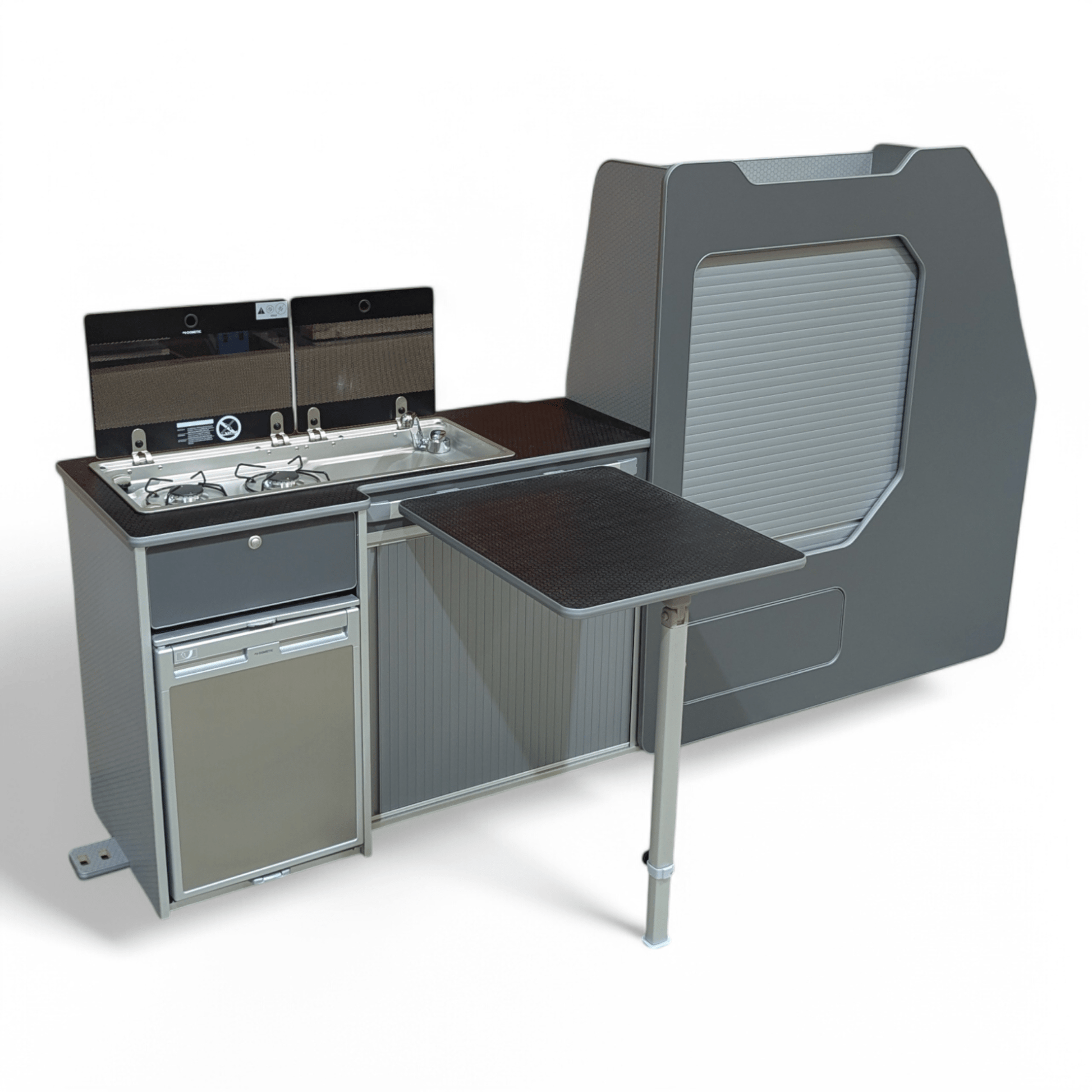

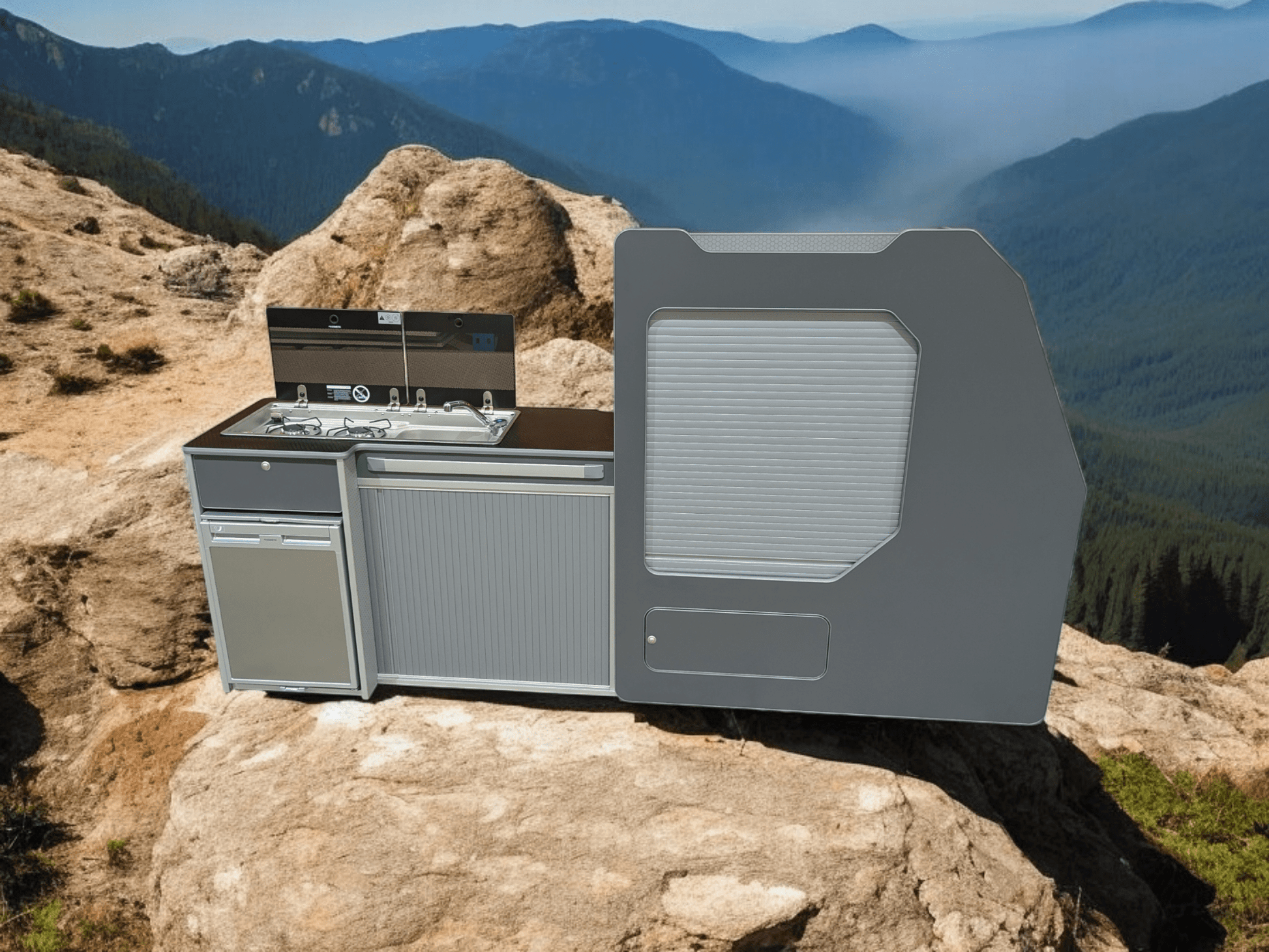

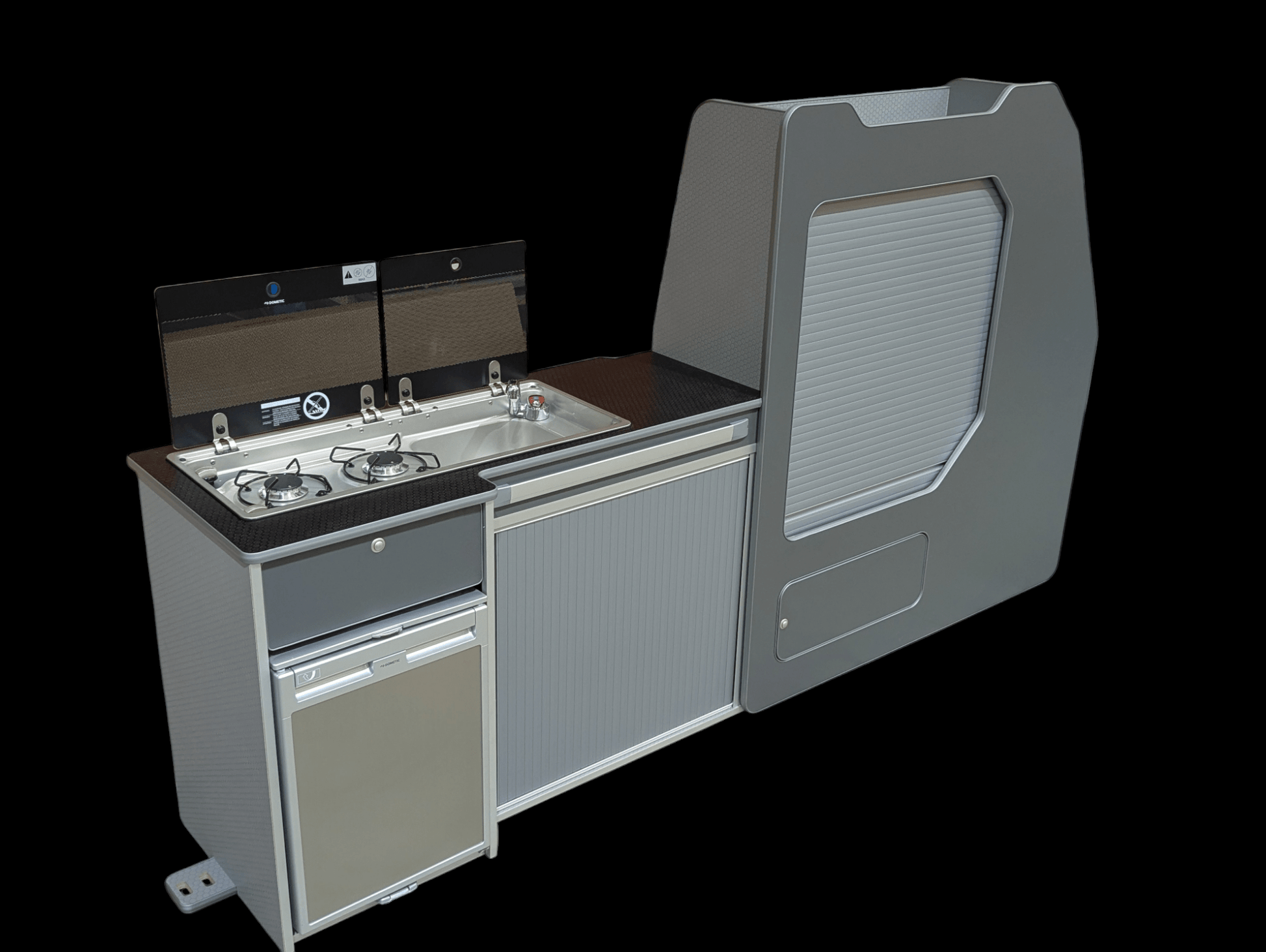

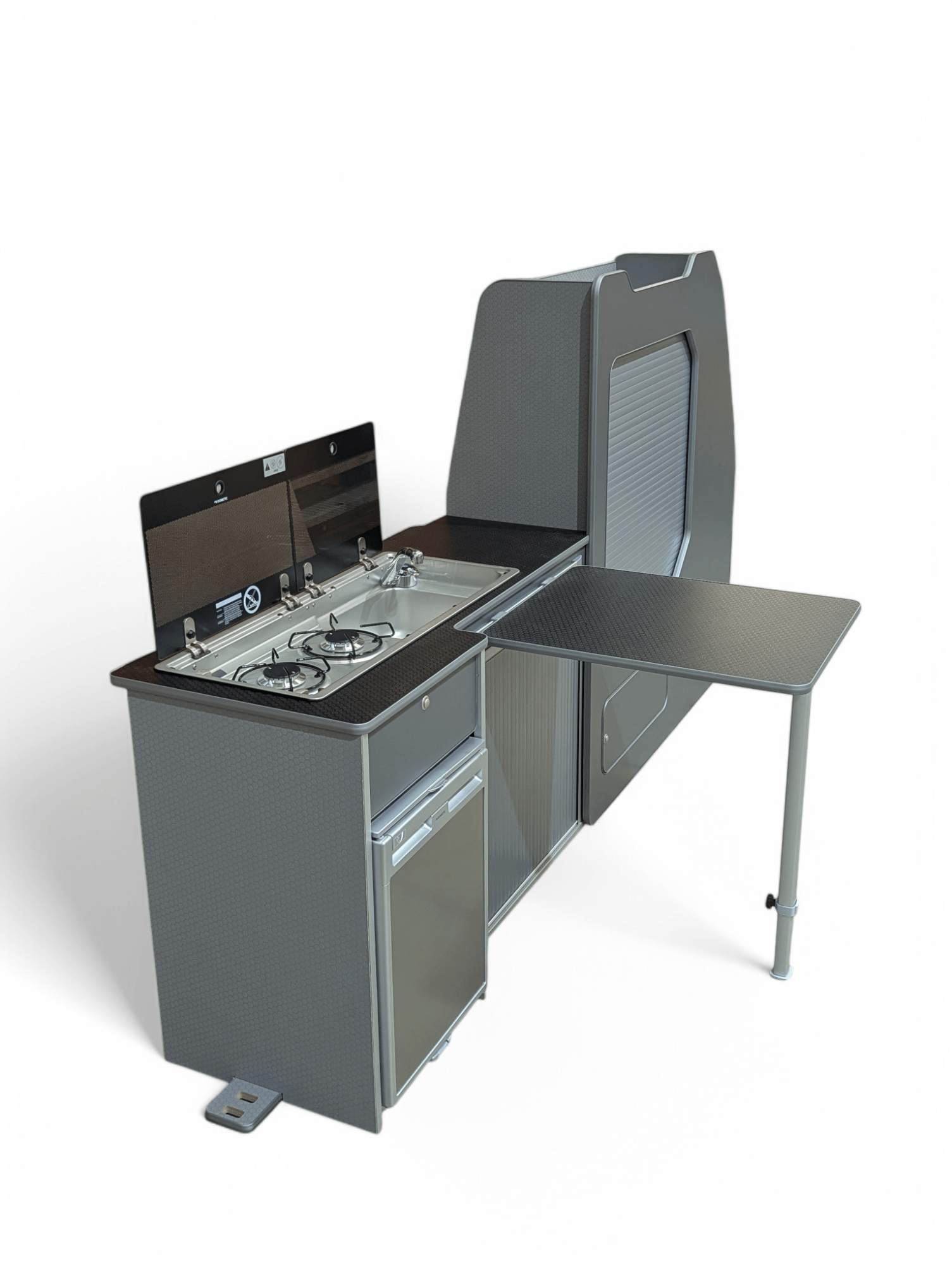

Kitchen Pod

• More storage inside the main unit with a new longer tambour door

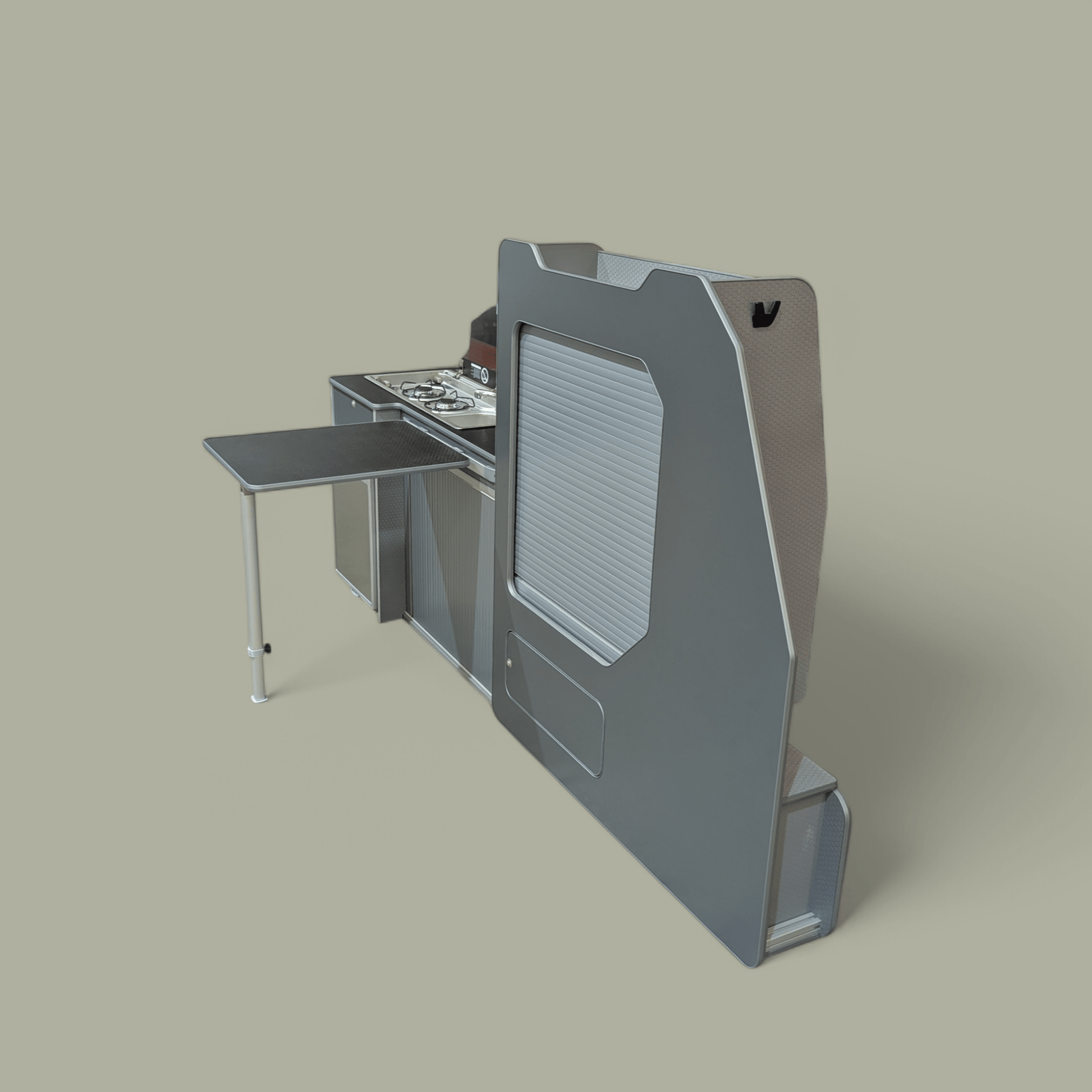

• Anodised aluminium table rail front and a large table (490mm x 600mm) is included. There are storage clips on the left side of the unit for storing this.

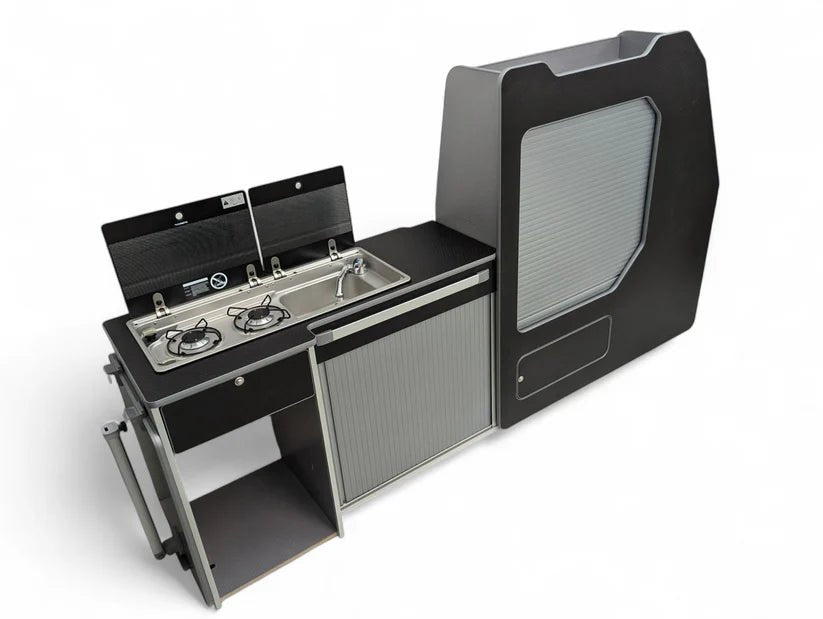

• Larger counter top with Dometic 9722 fitted
• Tambour door in front unit and rear pod
• Plug & play with integrated plumbing & 12v plug (just add the gas bottle)
• Includes Dometic 9722 sink/hob combination unit + Florenz tap
• Ignition and flame safety cut out

• 10L water bottles with auto feeding pump supplying tap
• Gas bottle tray for Campingaz bottle R904 or R907 (not supplied), bottle belts and gas regulator

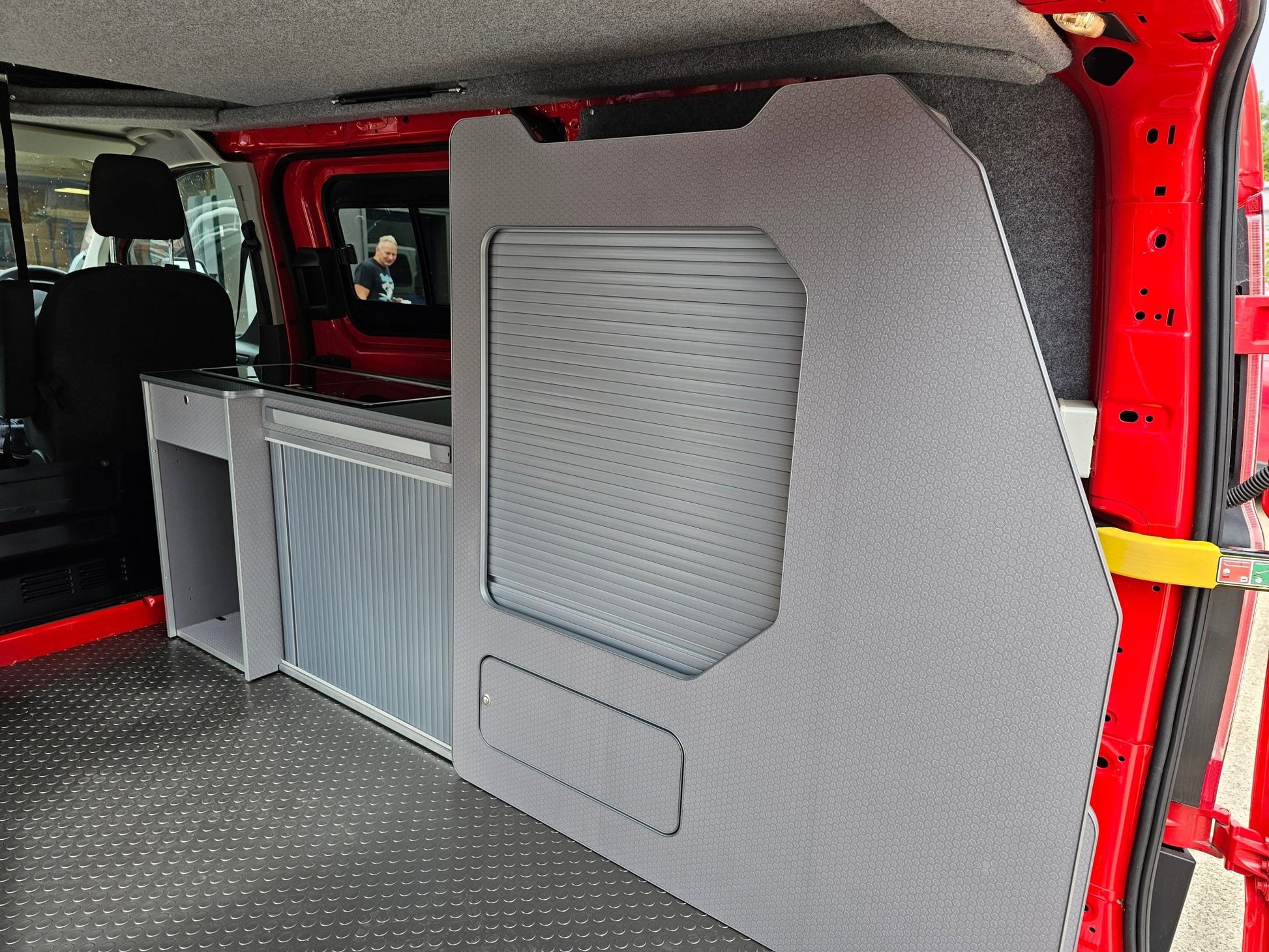

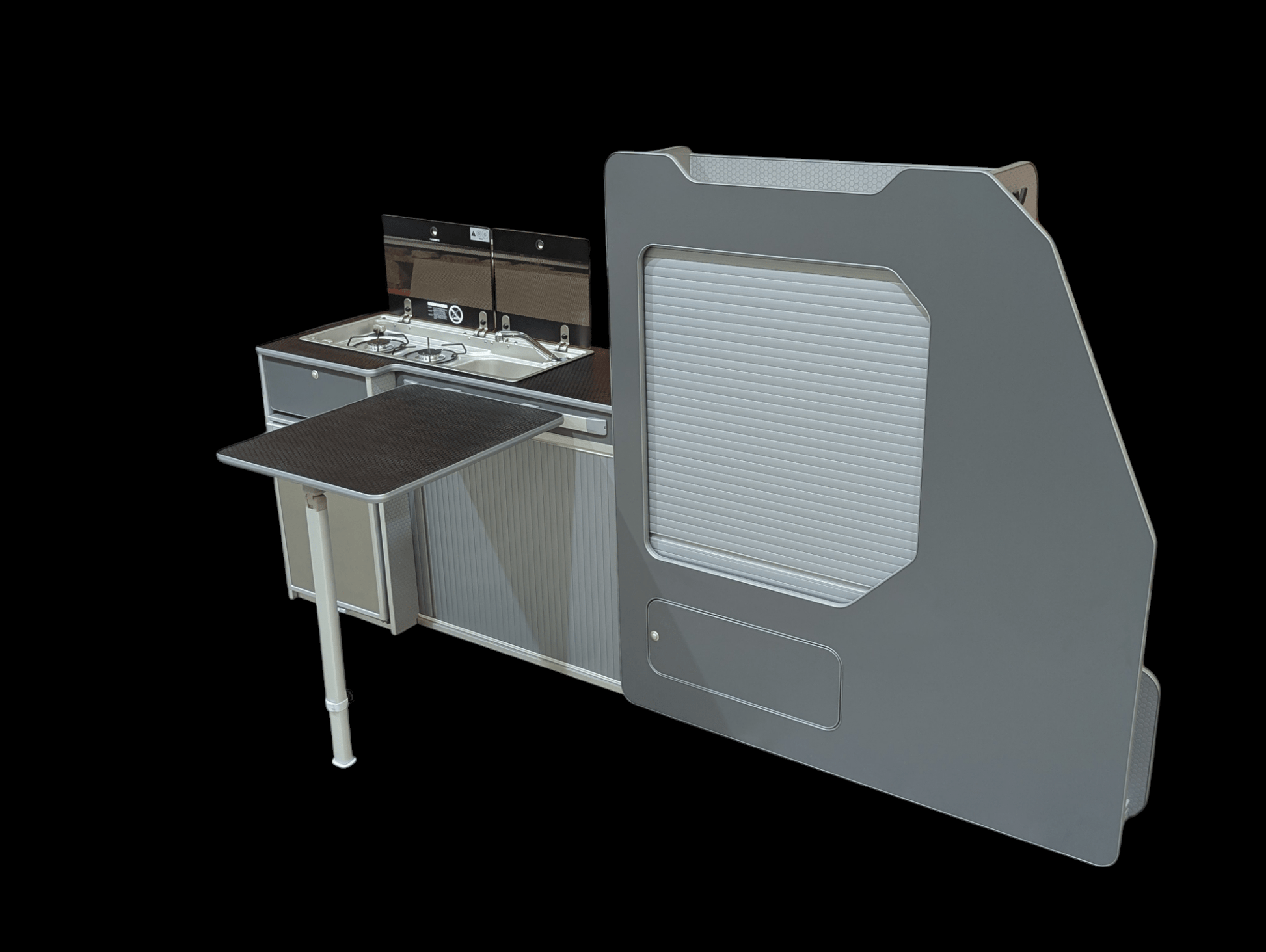

Rear-Pod

This pod will work with a 3/4 rock & roll bed.

• Fully assembled and ready to fit
• Bolts to the front unit and then the whole system is bolted down
• Large tambour door with storage behind
• Fit with a 3/4 rock & roll bed i.e. the RIB 112

• Rear coat hanging area/equipment area
• Option for a 30L water tank stored in the rear unit
• Easy access
• Plenty of storage

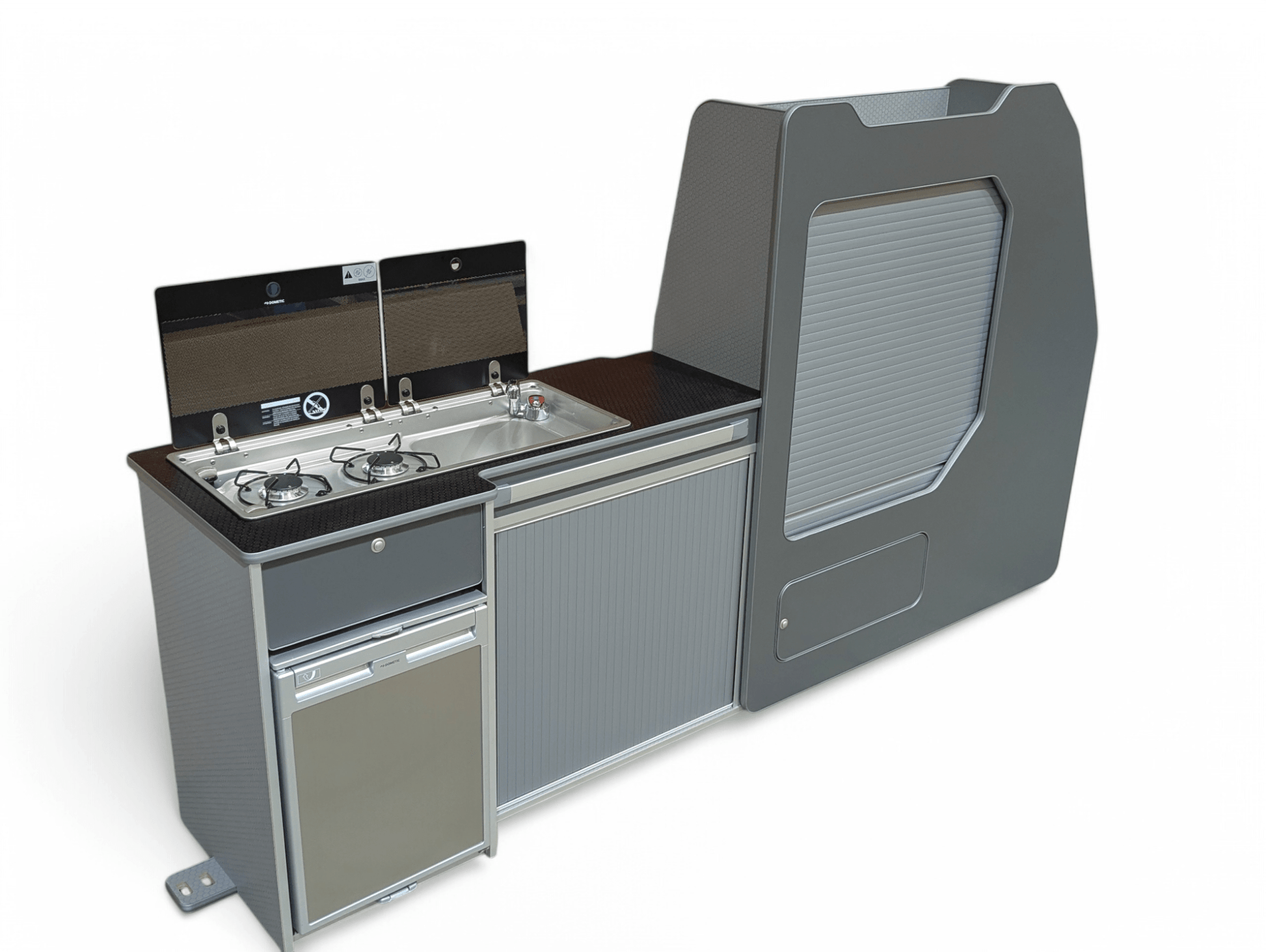

• Available in Black Hex, Grey Hex or Carbon Grey
• This unit will need to be secured to the floor and side of the van

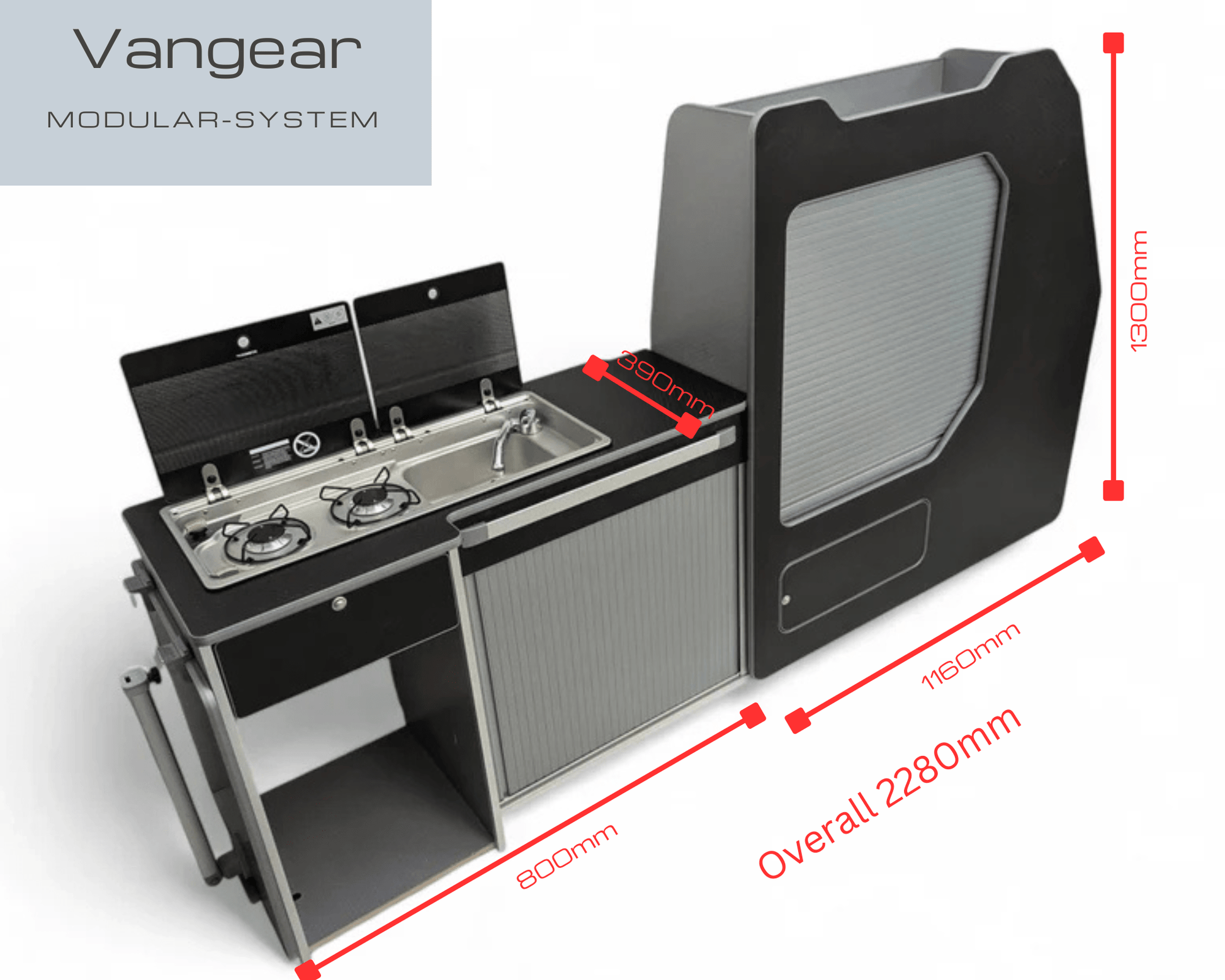

Dimensions:

Height = 1300mm (kitchen pod height = 750mm)

Total Length = 2280mm

Depth =   The kitchen pod depth is 390mm

From rear door to fridge extension is 1910mm, the front kitchen is 1120mm and the rear part is 1160mm

Materials

Kitchen pod

Black hex - phenolic birch plywood

Grey hex (Black hex countertops) - phenolic birch plywood

Carbon Grey (Black hex countertops) - lightweight camper ply

Rear Pod

Black hex - phenolic birch plywood

Grey hex - phenolic birch plywood

Carbon Grey -  lightweight campervan ply

Our Fitment Support Guarantee

In the event of problems fitting your pod we will:

• Help with technical advice
• Help you with any fitting adaptors/ extra mounting plates
• In the unlikely event that the unit does not fit - A 30 day return policy
• We also provide a 1 year warranty on parts

Delivery and Collection

• Designed and manufactured by Vangear in East Sussex, UK
• Units are made to order and can be delivered on a pallet to your home or collected from our workshop
• £75 UK pallet delivery (+£30 surcharge will apply for N. Ireland and the Highlands)
• We are currently unable to ship pallets to Europe

• If selecting local pickup at checkout, items are typically ready for collection in 3 weeks. We'll notify you when your order is ready for pickup.

• Watch our videos for more information
• View our units at our Ditchling (East Sussex) workshop (appointment please)
• Call  or email us for more information info@vangear.co.uk / 01444 247129
