Rear-Pod (Small version for VW Shuttle/Caravelle) to make a modular campervan system

Rear-Pod (Small version for VW Shuttle/Caravelle) to make a modular campervan system

£625.00 GBP
£625.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color

Vangear Rear-Pod (Slim factory trim version eg VW Shuttle, Caravelle) to make a modular system - Rear-Pod only


  • Rear-Pod only, add your kitchen pod from the SHOP
  • Lead times are currently 2-3 weeks for this pod
  • Slim factory trim version eg VW Shuttle, Caravelle (355mm)

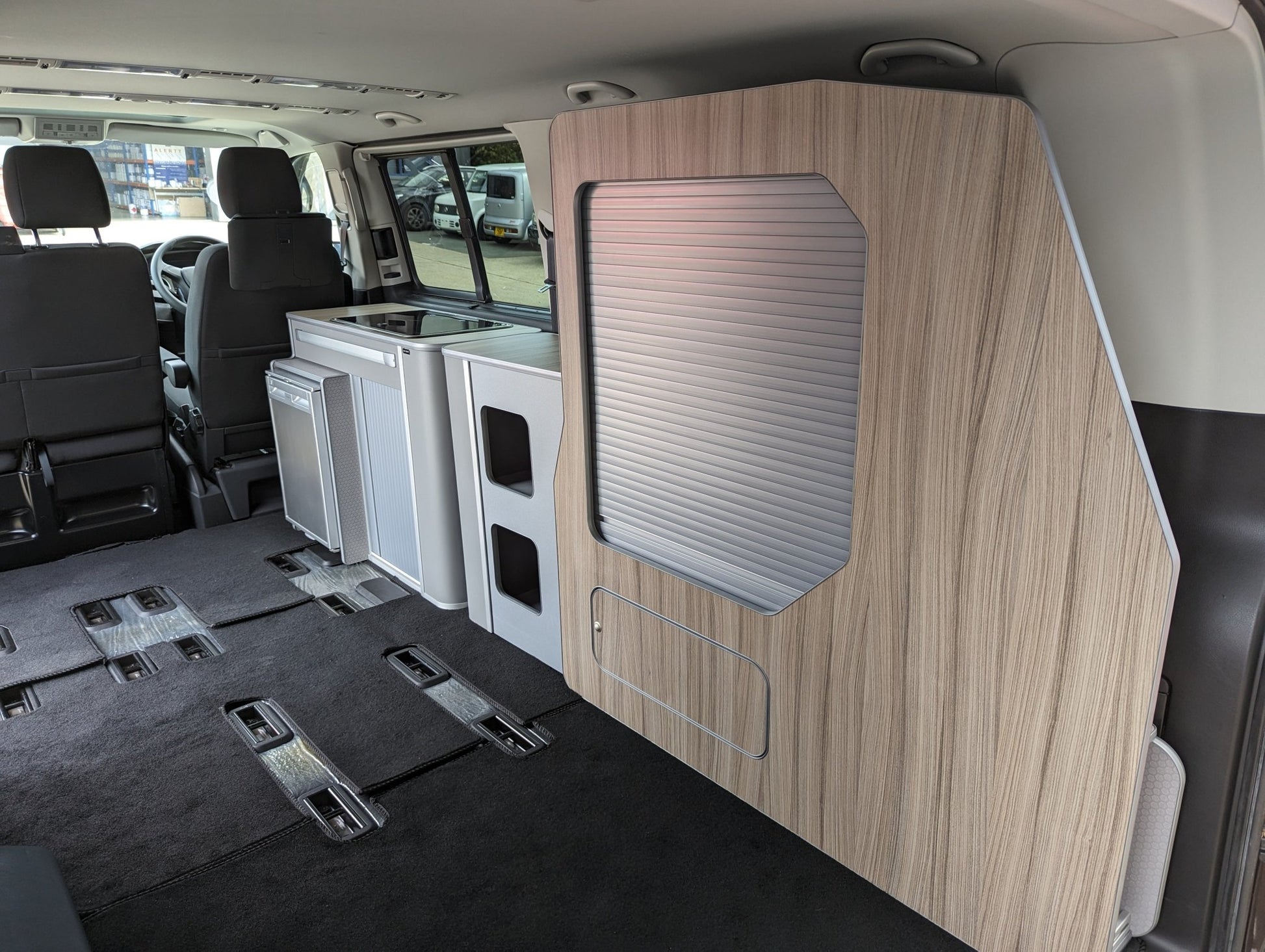

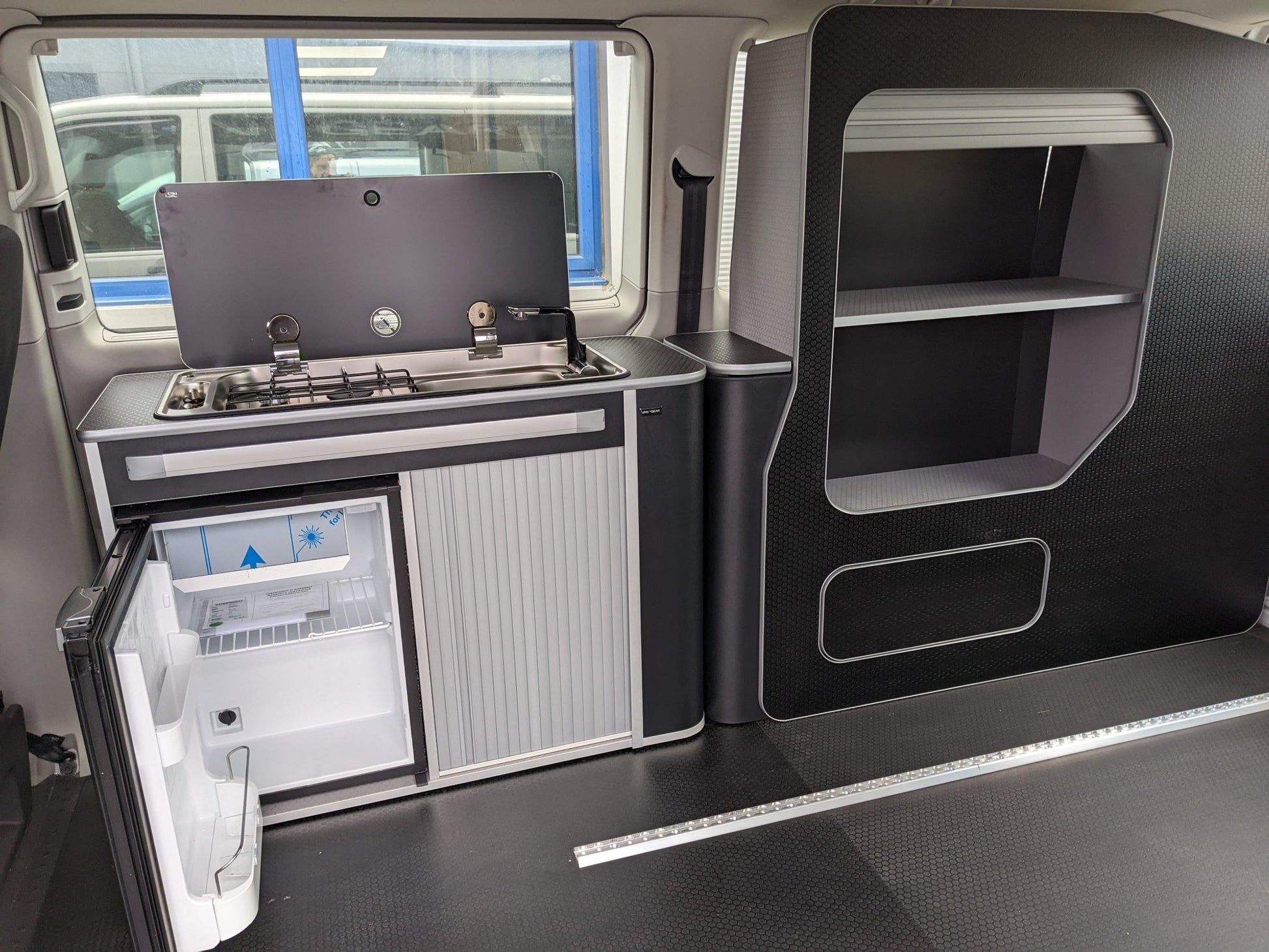

The Vangear Rear Pod can be added to any one of our kitchen pods (shown here with our Fridge-Pod) to form a modular system. This slim version is designed for the VW T5 T6 T6.1 Shuttle and Caravelle with original plastic factory trim panels and this pod will work with a 3/4 rock & roll bed. Includes mounting eyes for the loading lugs in the Transporter and an option for a larger rear water tank. It is also now available in Driftwood which compliments a front pod in either Black or Grey. This version will also fit the Citroen Dispatch and Stellantis versions.

Please note that this product is not suitable for VW panel vans without the factory trim

  • Fully assembled and ready to fit
  • Fit with one of our Kitchen Pods to form a modular system
  • This slim version is designed for the VW T5 T6 T6.1 Shuttle and Caravelle with factory trim panels
  • This version will also fit the Citroen Dispatch and Stellantis versions.
  • Large tambour door with storage behind
  • Fit with a 3/4 rock & roll bed i.e. the RIB 112  (1120mm wide)
  • Mounting eyes to attach the unit to the loading lugs in the Transporter
  • Rear coat hanging area/equipment area
  • Option for a 30L water tank stored in the rear unit (we do not provide the plumbing for this option
  • Option for LWB section to be added
  • This unit can also be built for the left side of the van


Dimensions:

  • This slim version is designed for the VW T5 T6 T6.1 Shuttle and Caravelle with factory trim panels

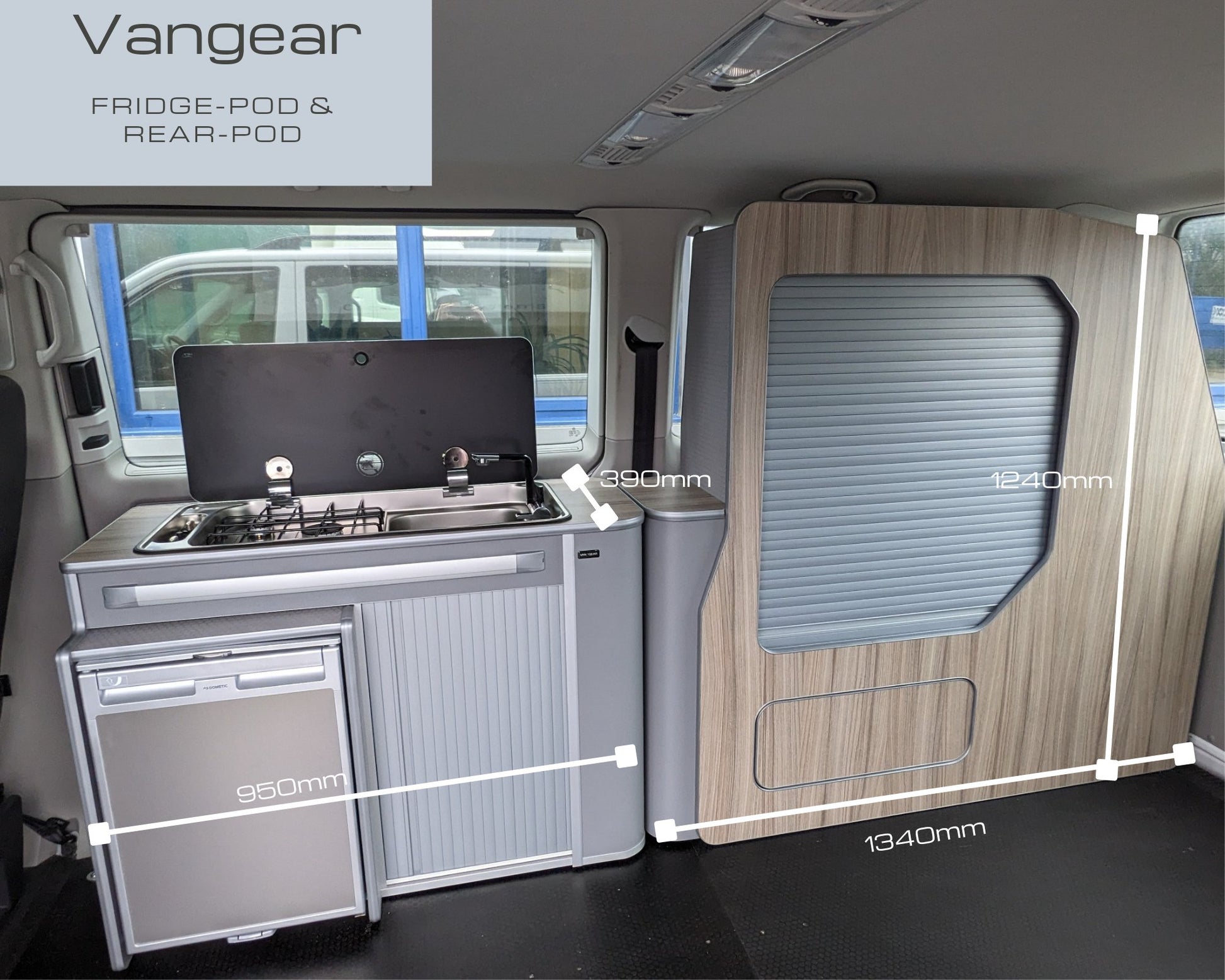

Height = 1240mm

Length = 1340mm at base (floor level)

Depth =     340mm (up to the factory panels)

For example, if added to our Fridge-Pod at 950mm the overall length = 2230mm at base


Options:

  • LWB extension for the LWB VW T5/T6/T6.1 or the LWB Renault Trafic



Materials and weights:

Black - phenolic birch plywood (weight = 33kg)

White birch plywood (weight = 33kg)

Grey - lightweight campervan ply (weight = 29kg)

Driftwood -  lightweight campervan ply (weight = 29kg)


  • Easy access
  • Plenty of storage
  • Available in Black, White, Grey or Driftwood
  • This unit will need to be secured to the floor and side of the van.
  • Secure to sliding rails with our cleats or bolt onto floor


This unit will need to be secured to the floor and side of the van.


  • Price includes VAT
  • Large UK Pallet delivery = £55


Concept and benefits of Vangear pods


Our units are intelligently designed to maximise space and provide a flexible, adaptable campervan system. We build our units with solid quality materials and they are fully assembled ready to be easily fitted into your campervan conversion.

  • High-quality build and innovative features
  • Stylish design and practical
  • Fully assembled campervan unit, ready to go in a good value package
  • Universal fitment into many camper vans VW, T4, T5, T6, Vito, Transit, Peugeot, Citroen, Toyota etc
  • Fitment to sliding seat rail systems with our Vangear anchor cleat ie VW Caravelle, California, Multivan
  • Lightweight with integrated plumbing systems
  • Reduced fitting times, simple to fit
  • A kitchen unit that can form part of an innovative modular system
  • Spares and technical backup


Our Fitment Support Guarantee

In the event of problems fitting your pod we will:

  • Help with technical advice
  • Help you with any fitting adaptors/ extra mounting plates
  • In the unlikely event that the unit does not fit - A 30 day return policy
  • We also provide a 1 year warranty on parts


Delivery

  • Designed and manufactured by Vangear in East Sussex, UK
  • Units are made to order and can be delivered on a pallet (£45) to your home or collected from our workshop. You will receive a call to book in the delivery once it is ready for dispatch
  • Checkout with our secure Paypal/Stripe payment gateway for credit/debit cards and Paypal
  • We offer a 30 day return policy (excluding postage)
  • Watch our videos
  • View our units at our Ditchling (East Sussex) workshop (appointment please)
  • Call us for more information 01444 247129  07810592353
